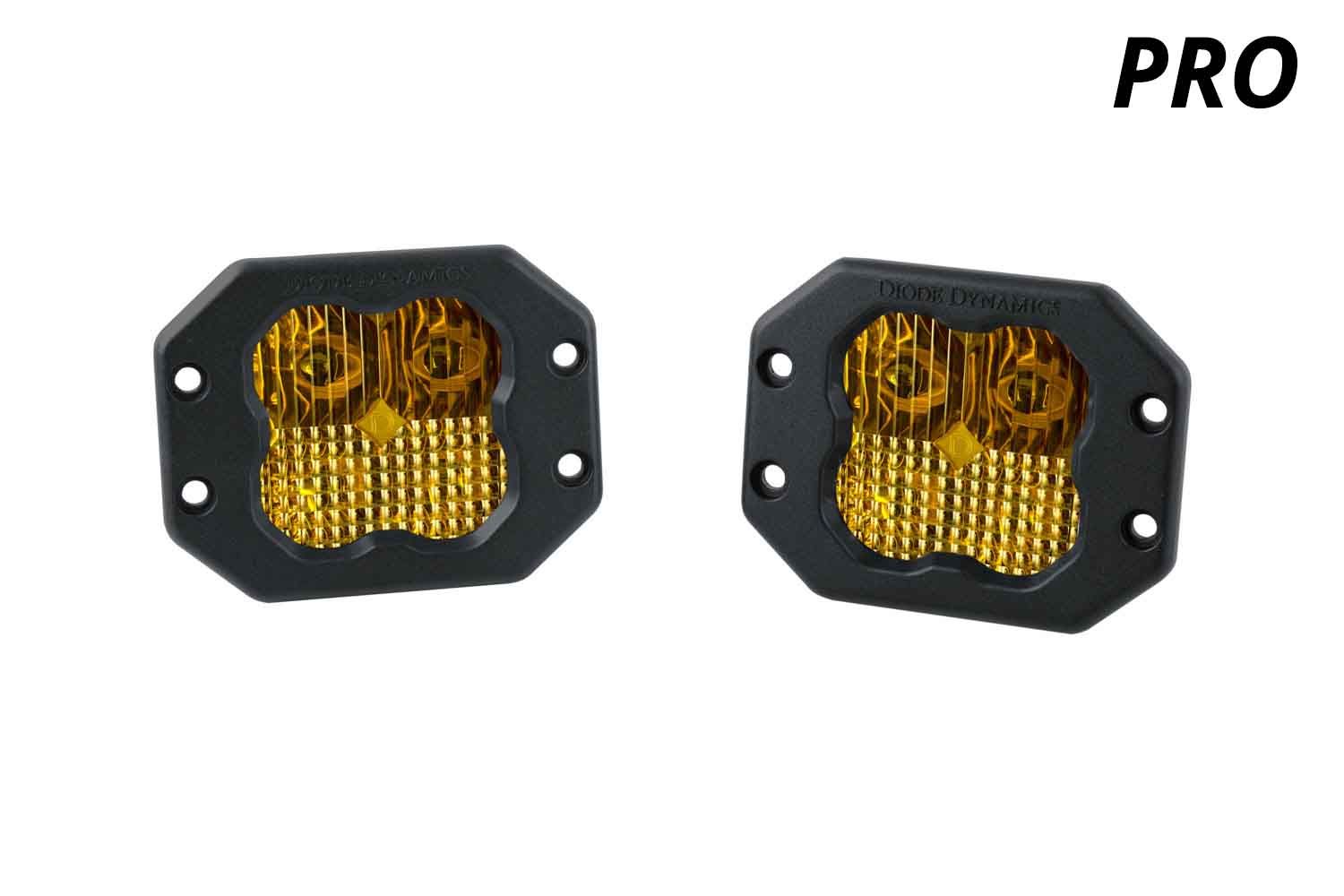

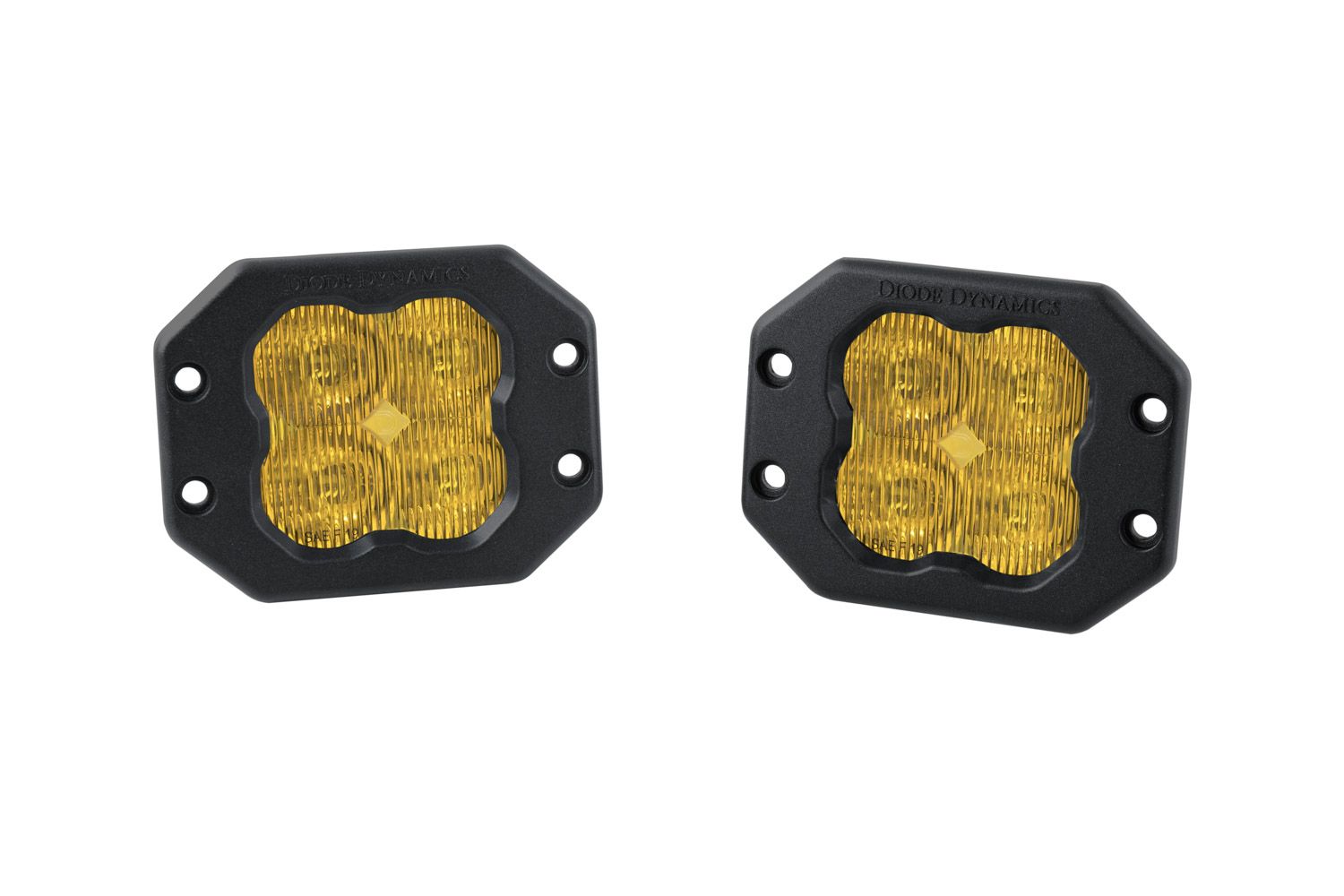

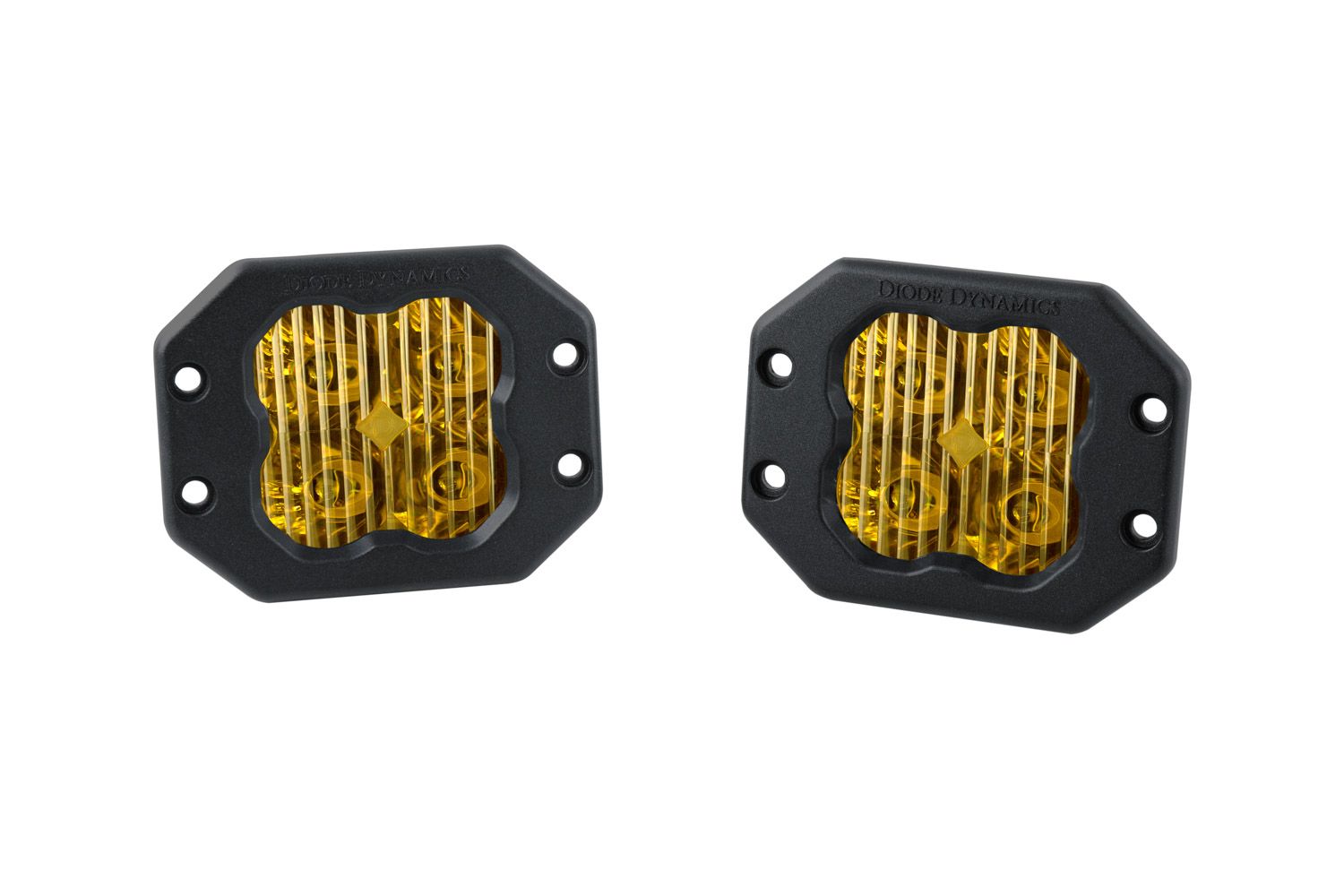

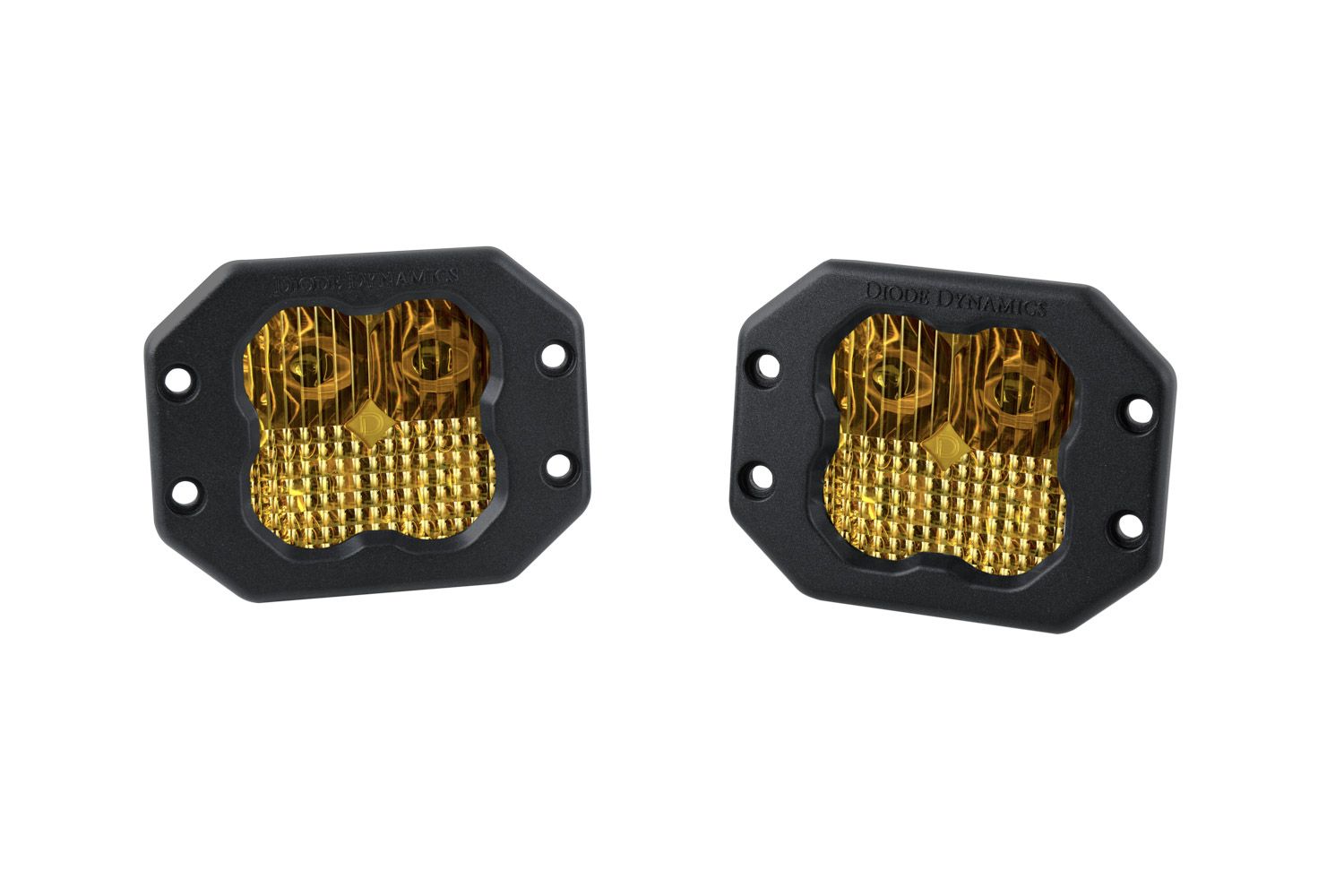

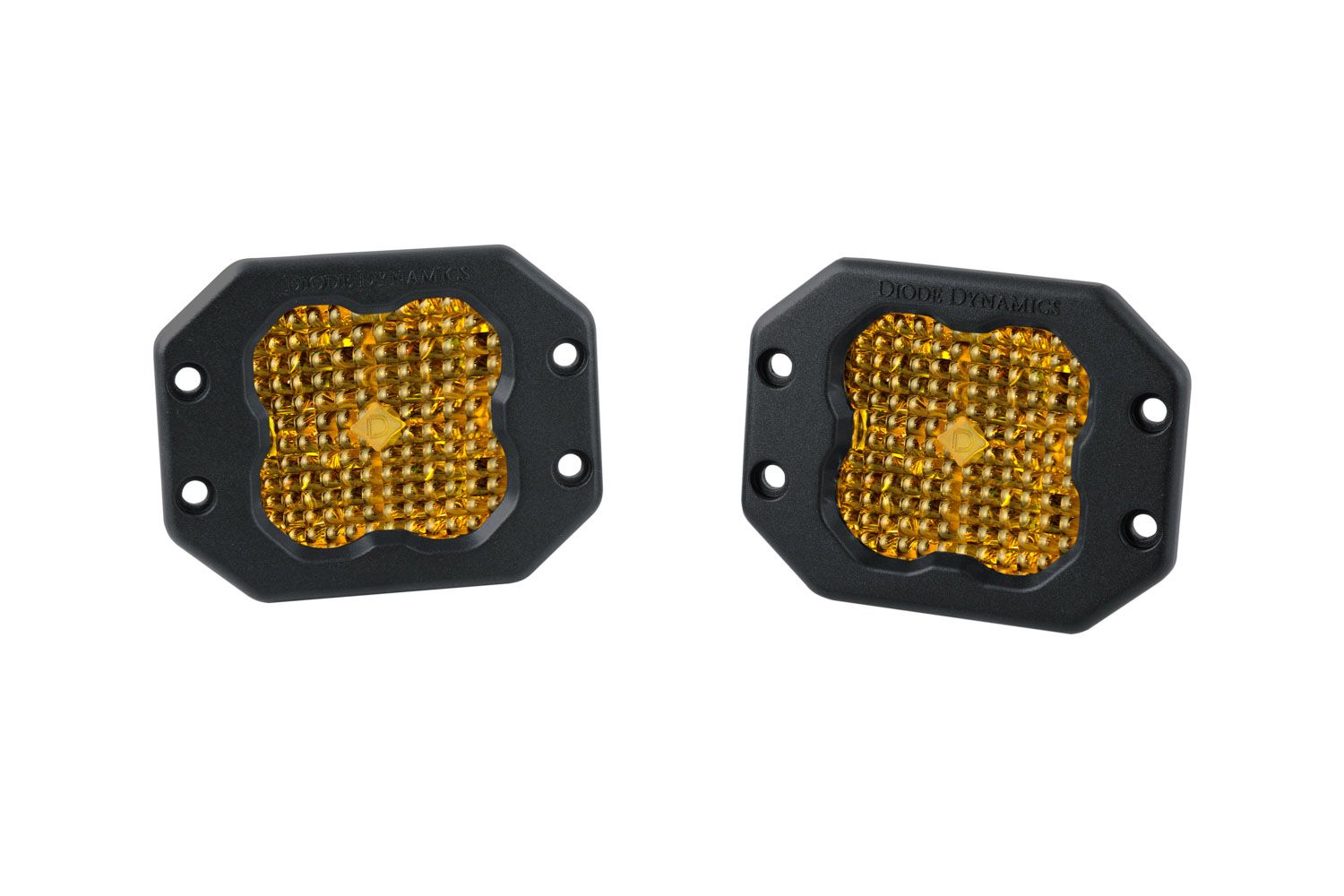

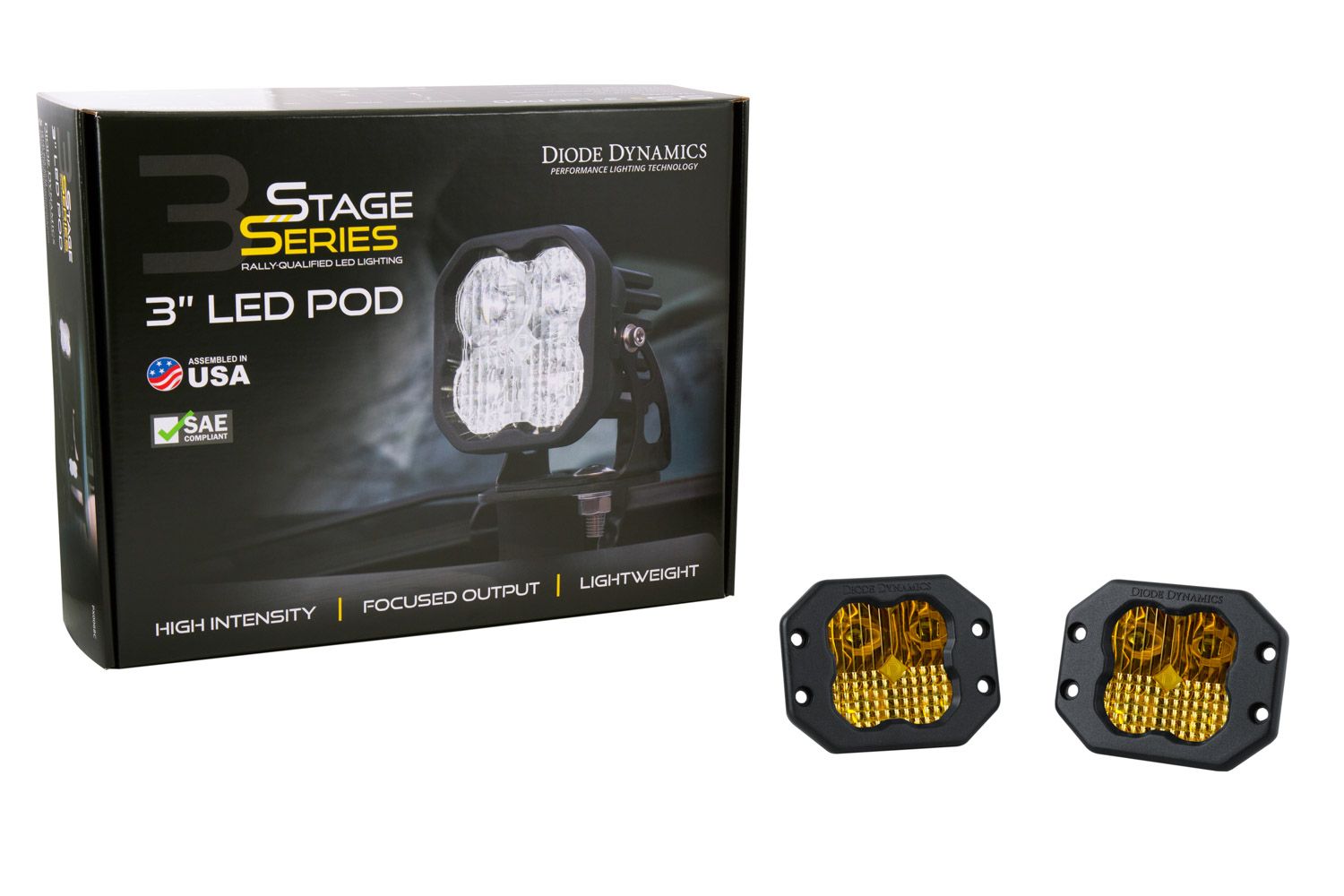

SS3 SAE Yellow Pro Flush Mount LED Pod (pair)

Diode Dynamics  |  SKU: DD6939P  |  Barcode: 00691025933307
Regular price $ 556.00 CAD
Choose Your Beam Pattern
Backlight Colour
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

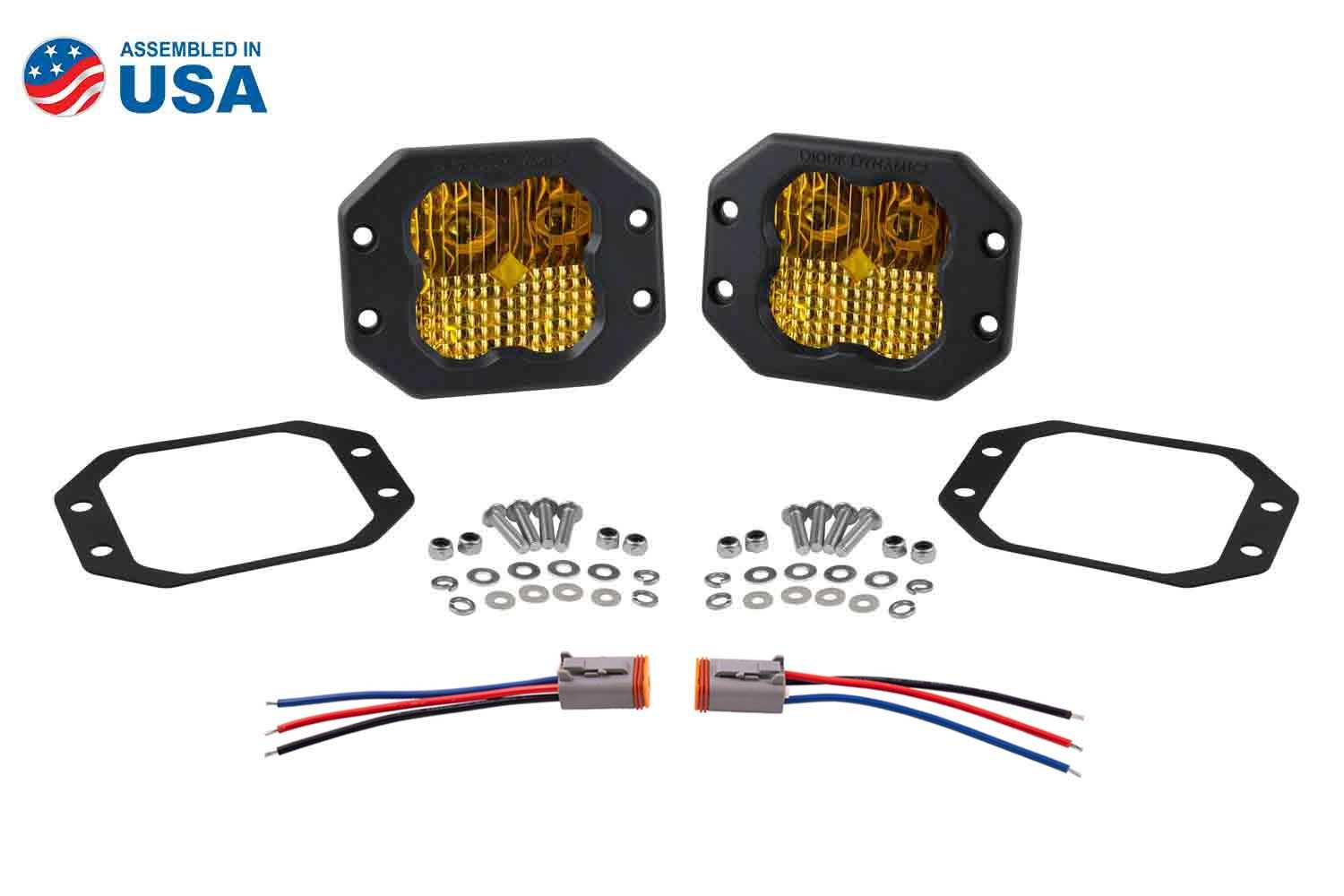

What's in the box 5 ITEMS
Two (2) SS3 3” Flush LED Pods
Two (2) Deutsch-style wire pigtails
Two (2) Flush Frame Gaskets
Mounting hardware and drilling template
Specification guide
Optical
Lumens 2700
Color temperature 3000K
Beam spread Fog 80°x8°
Power 36W
Operating voltage 9-30V
Grade Performance
Intensity 10 900 cd
LED emitter Cree XP-L HI
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)

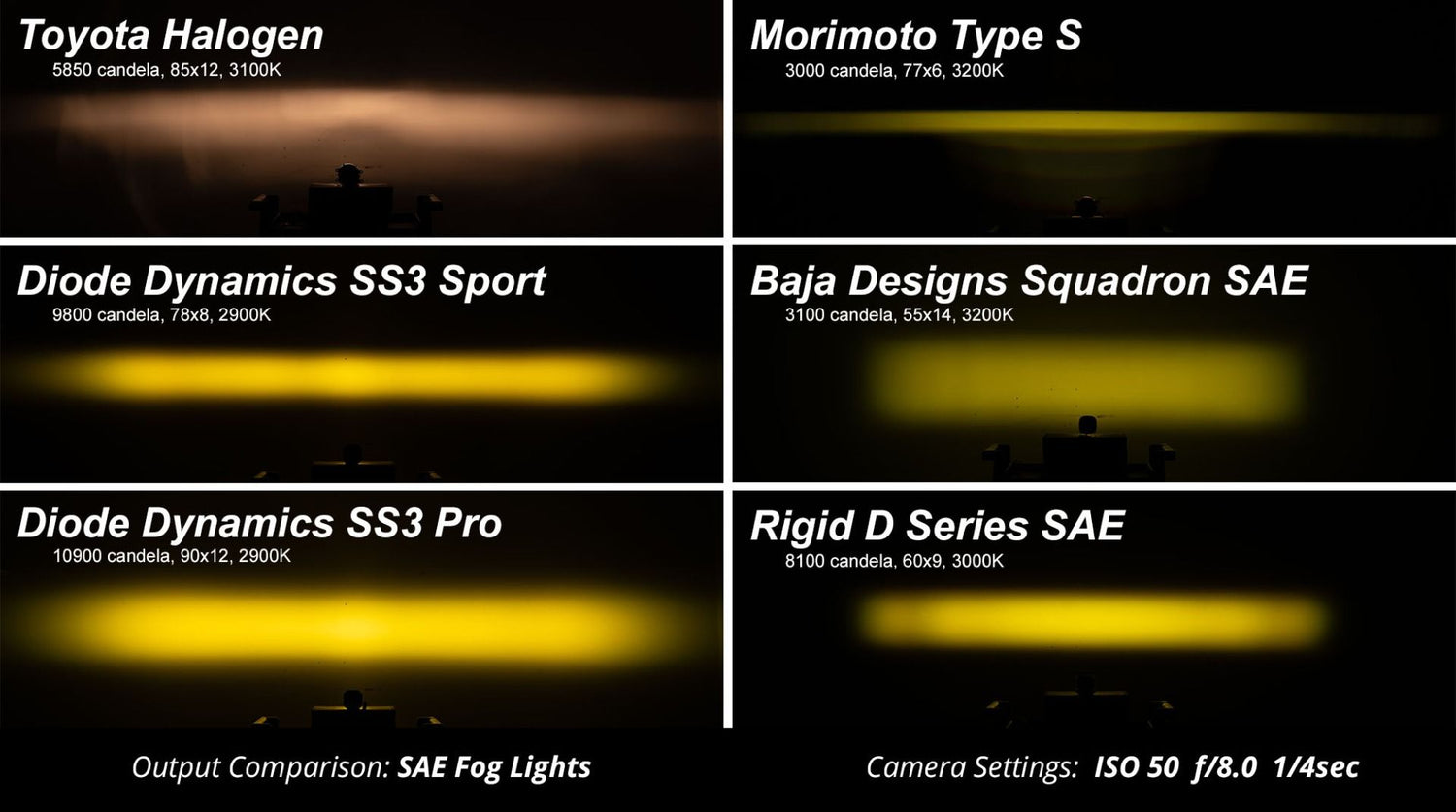

SAE/DOT SAE J583 Foglamp Beam Pattern
Country of origin USA
Features & benefits

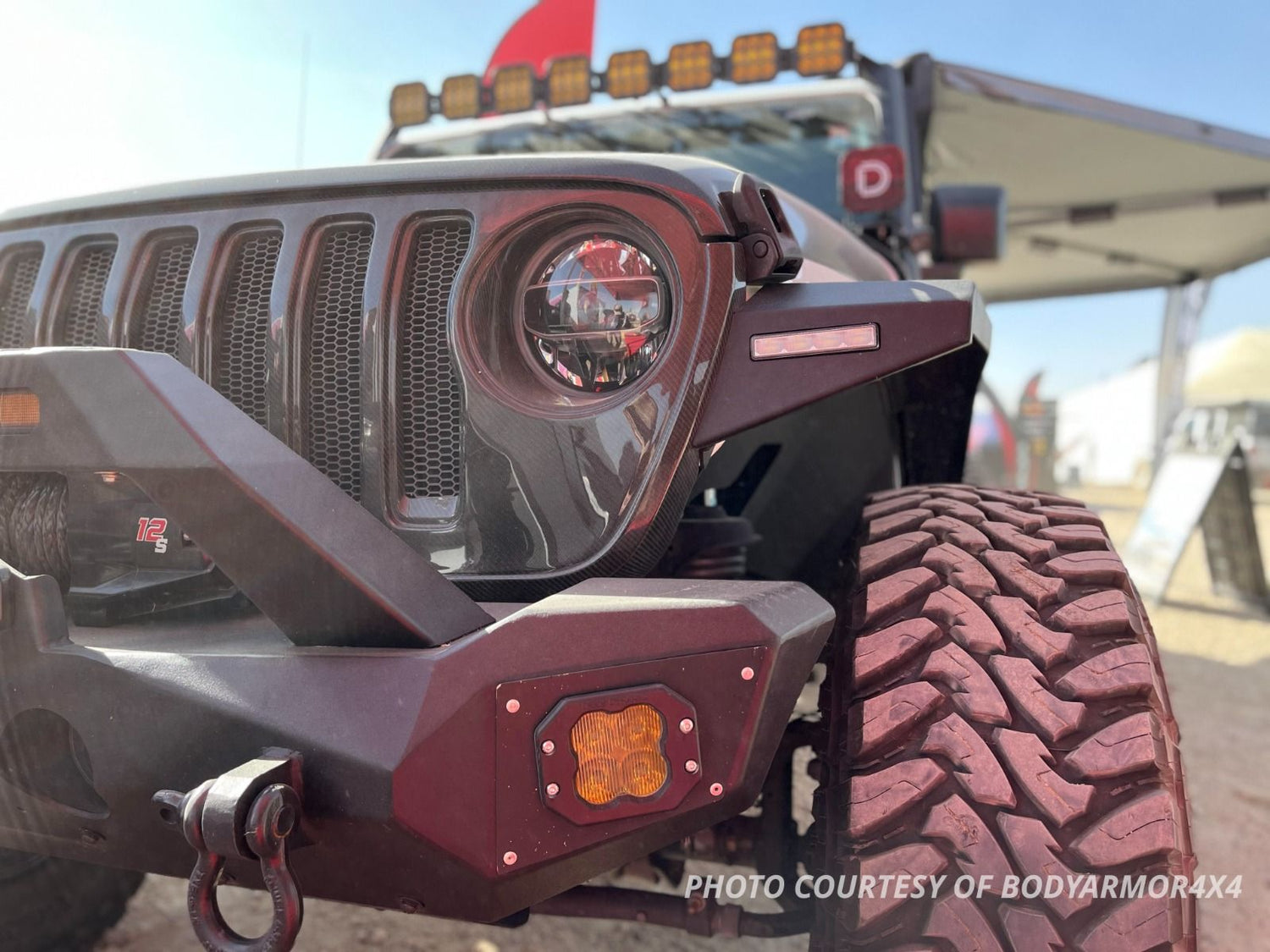

Allows for flush installation on bumpers and truck beds

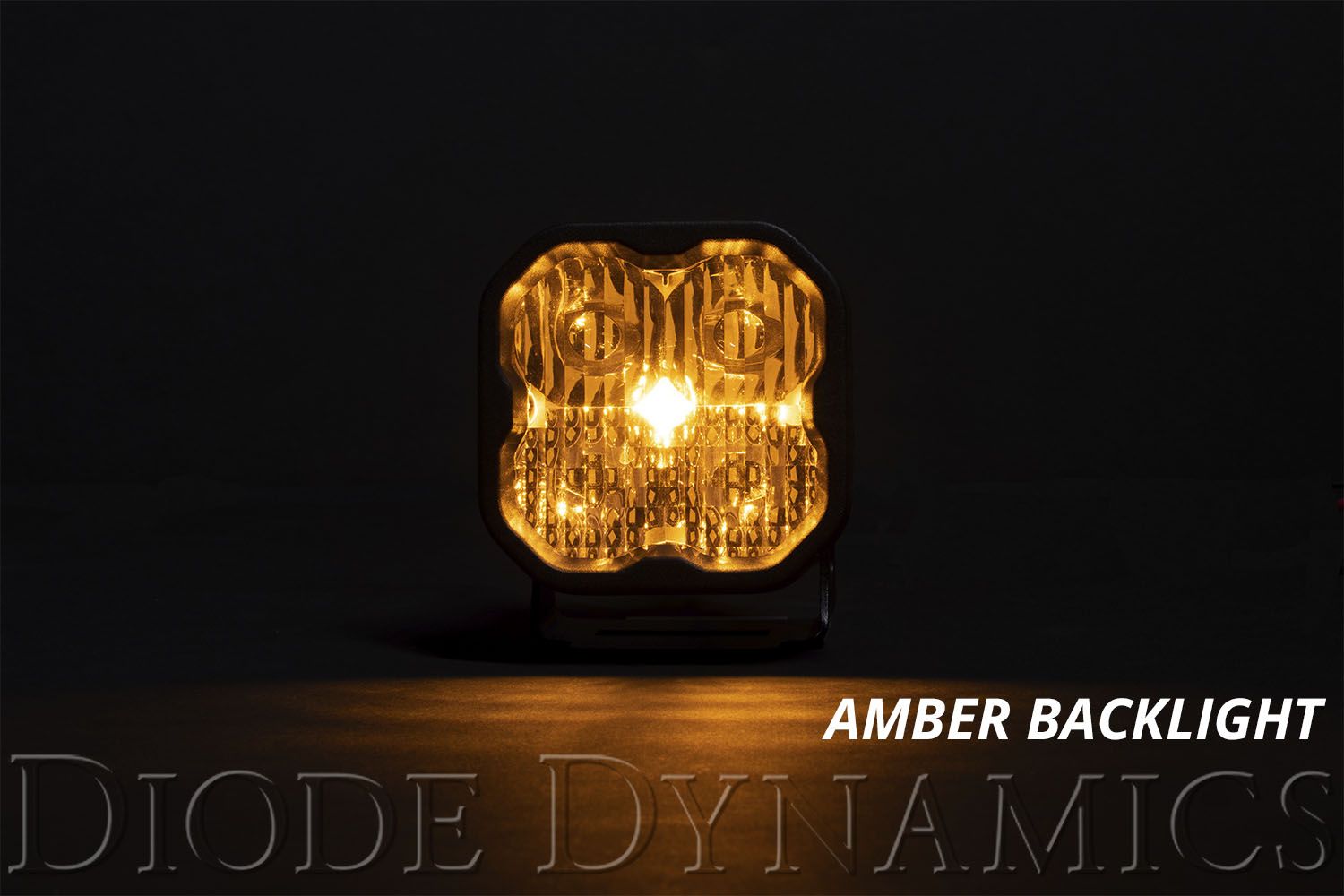

Backlight accent feature, in a brilliant amber color
Advanced TIR optics provide high efficiency and focus

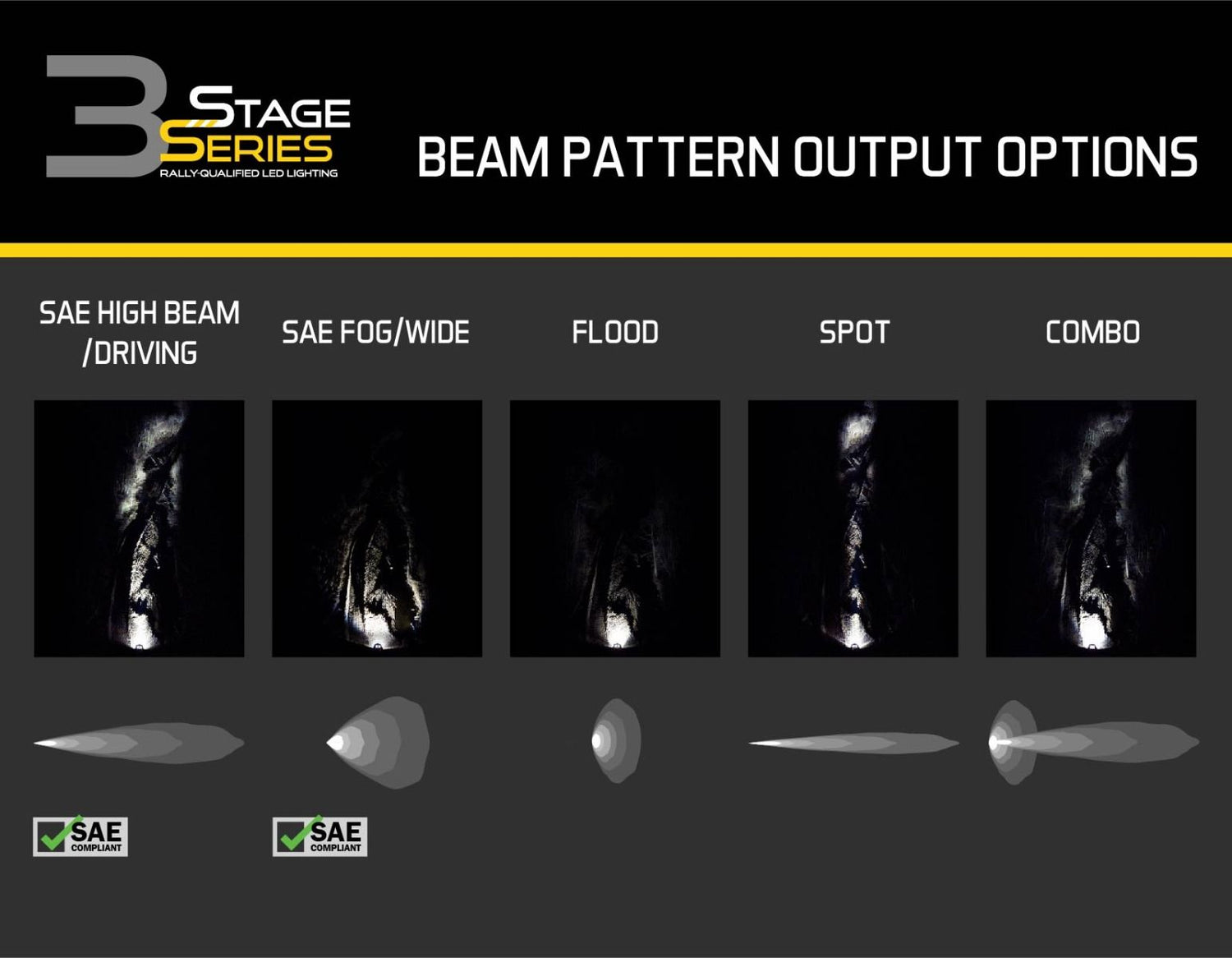

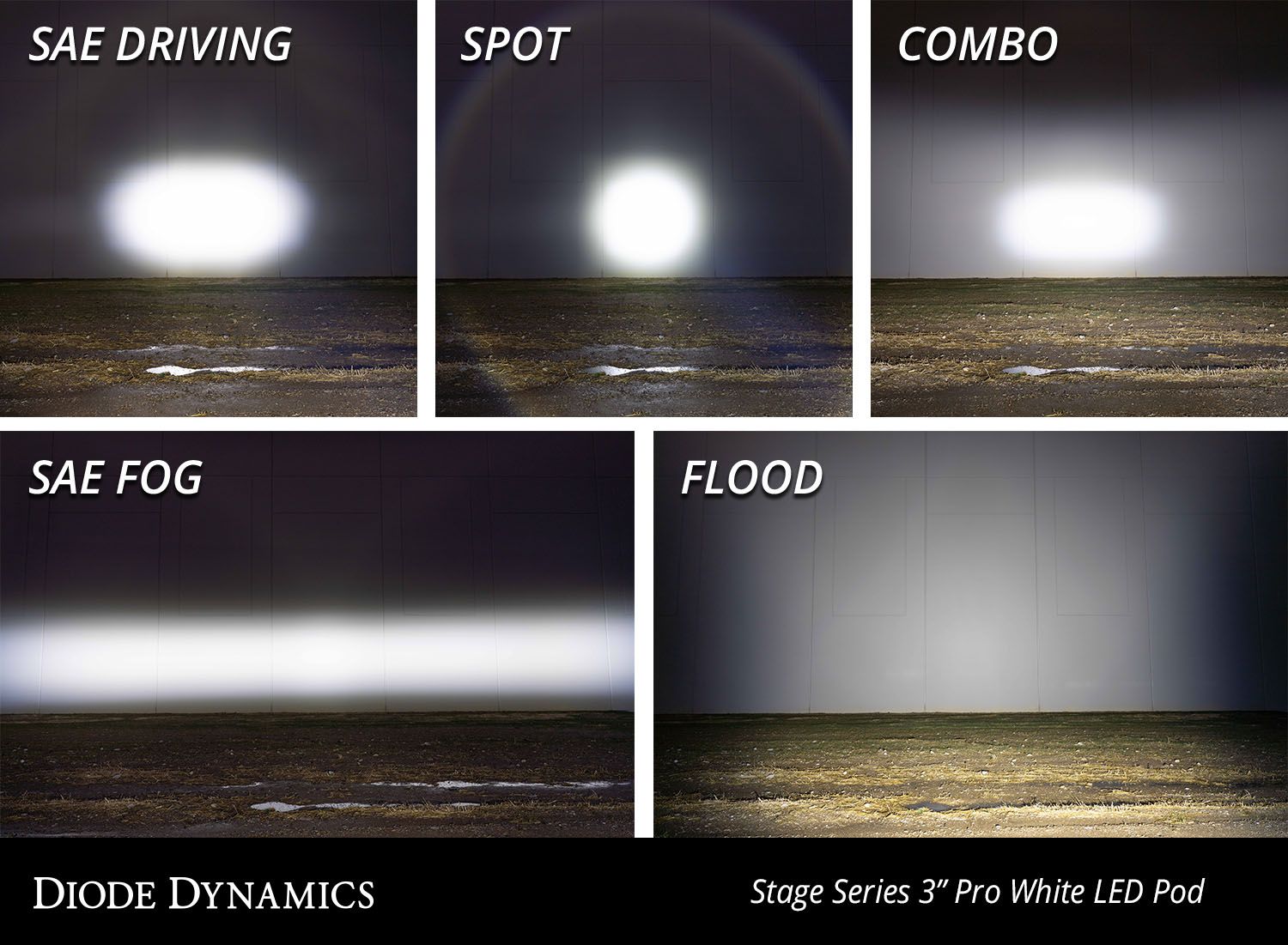

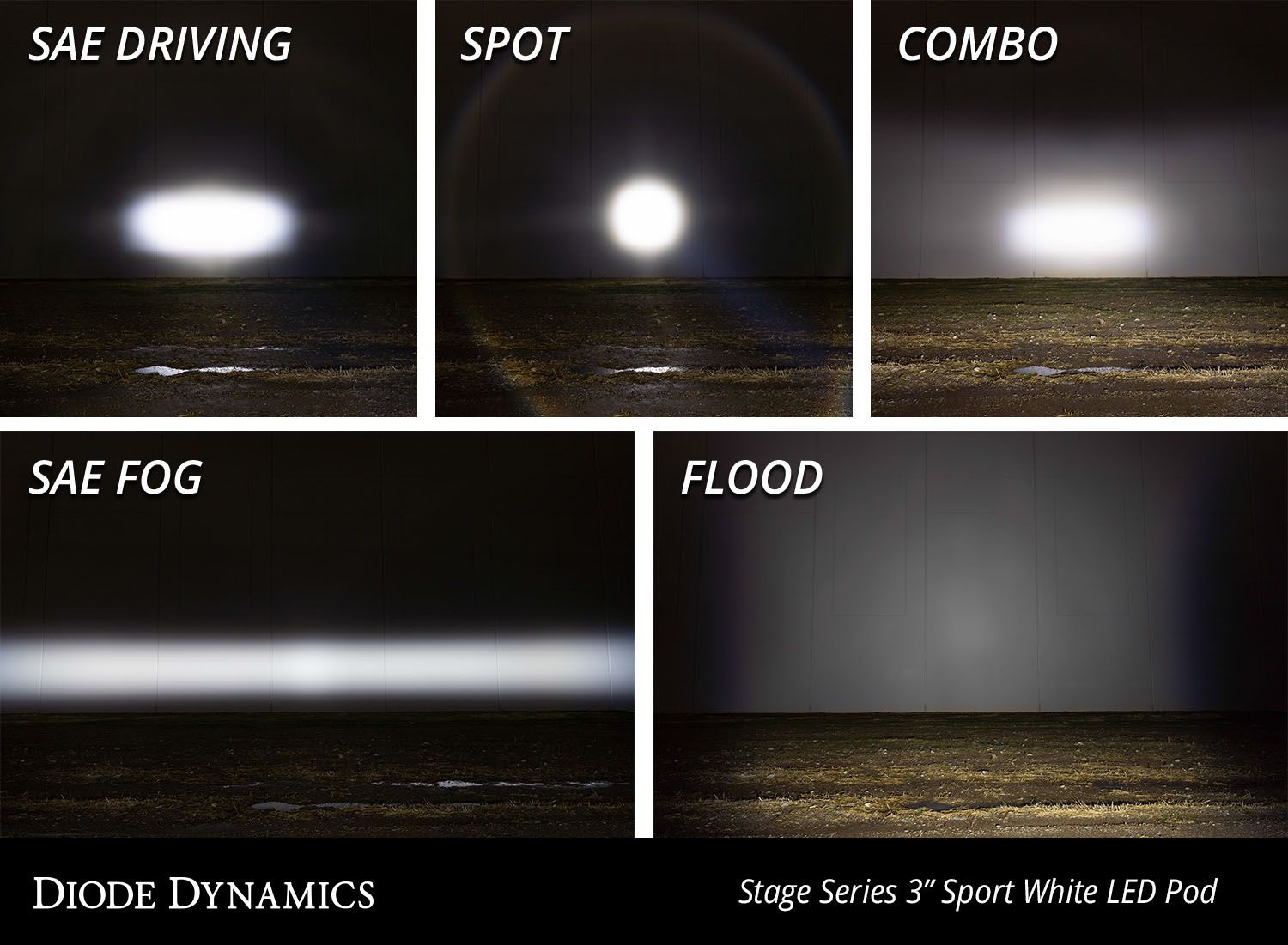

Available in SAE Driving, SAE Fog, Combo/Driving, or Flood, beam patterns
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Made in USA with global materials.
Description

The Diode Dynamics SS3 Pro flush mount LED pod pair delivers serious forward and auxiliary lighting in a compact, low-profile housing built for trucks, Jeeps, and UTVs. Whether you're running them as driving lights pushing a tight, focused beam down a dark trail, as a wide flood for illuminating a worksite or campsite, or as SAE-compliant fog lights cutting through rain and dust, these pods are built around custom TIR optics that put light exactly where it needs to go.

You can choose from Driving, Combo, Flood, SAE Fog, or Amber beam and color options, so the same platform covers everything from long-range spot lighting to close-range area coverage to yellow-tinted bad-weather visibility. Each setup is tailored to a specific job rather than trying to do everything poorly at once.

The SS3 Pro is built with a pin-fin heatsink and a powdercoated aluminum body that handles heat and trail abuse without complaint. If you want a clean flush mount look with output that backs it up, this pair fits the bill.
