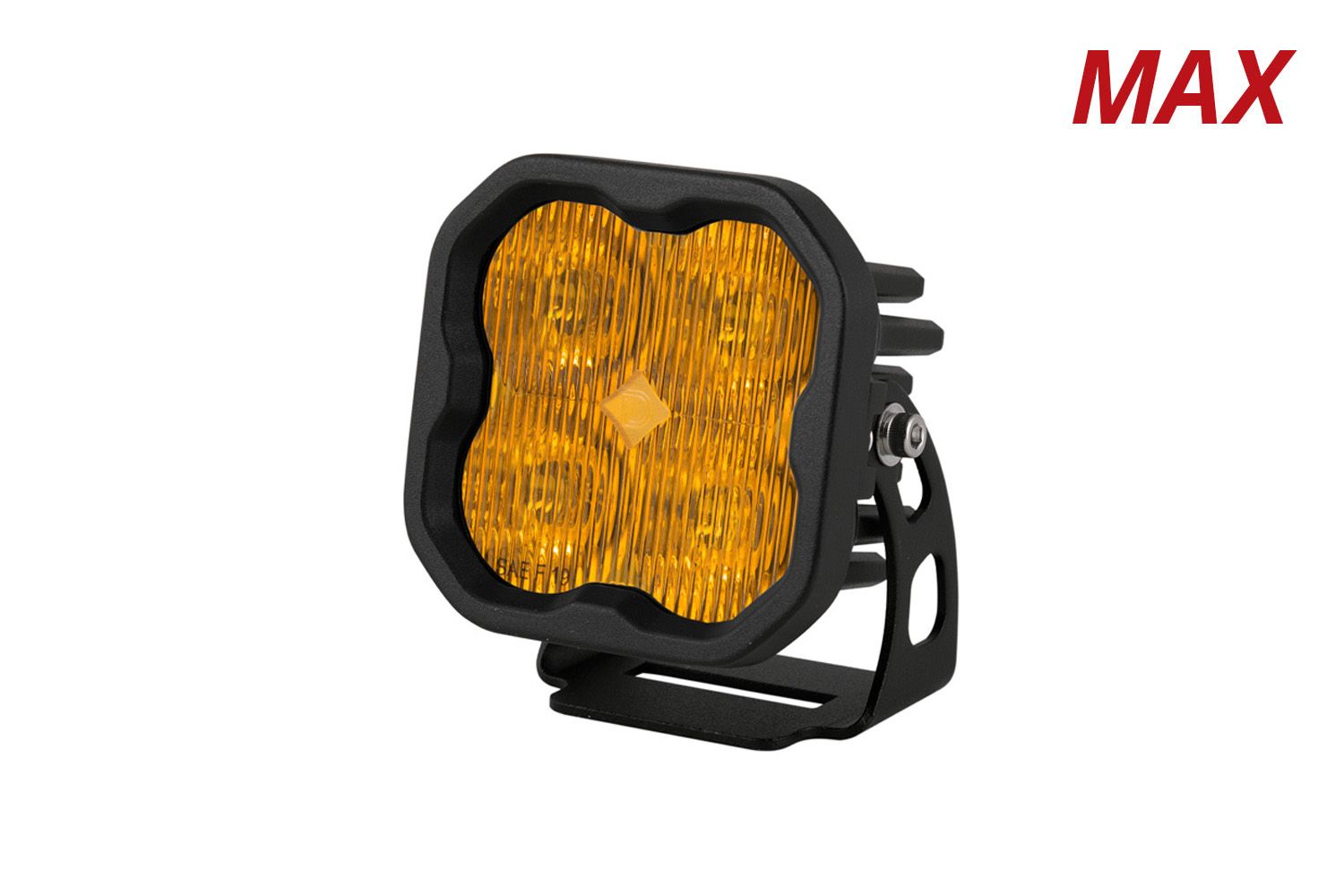

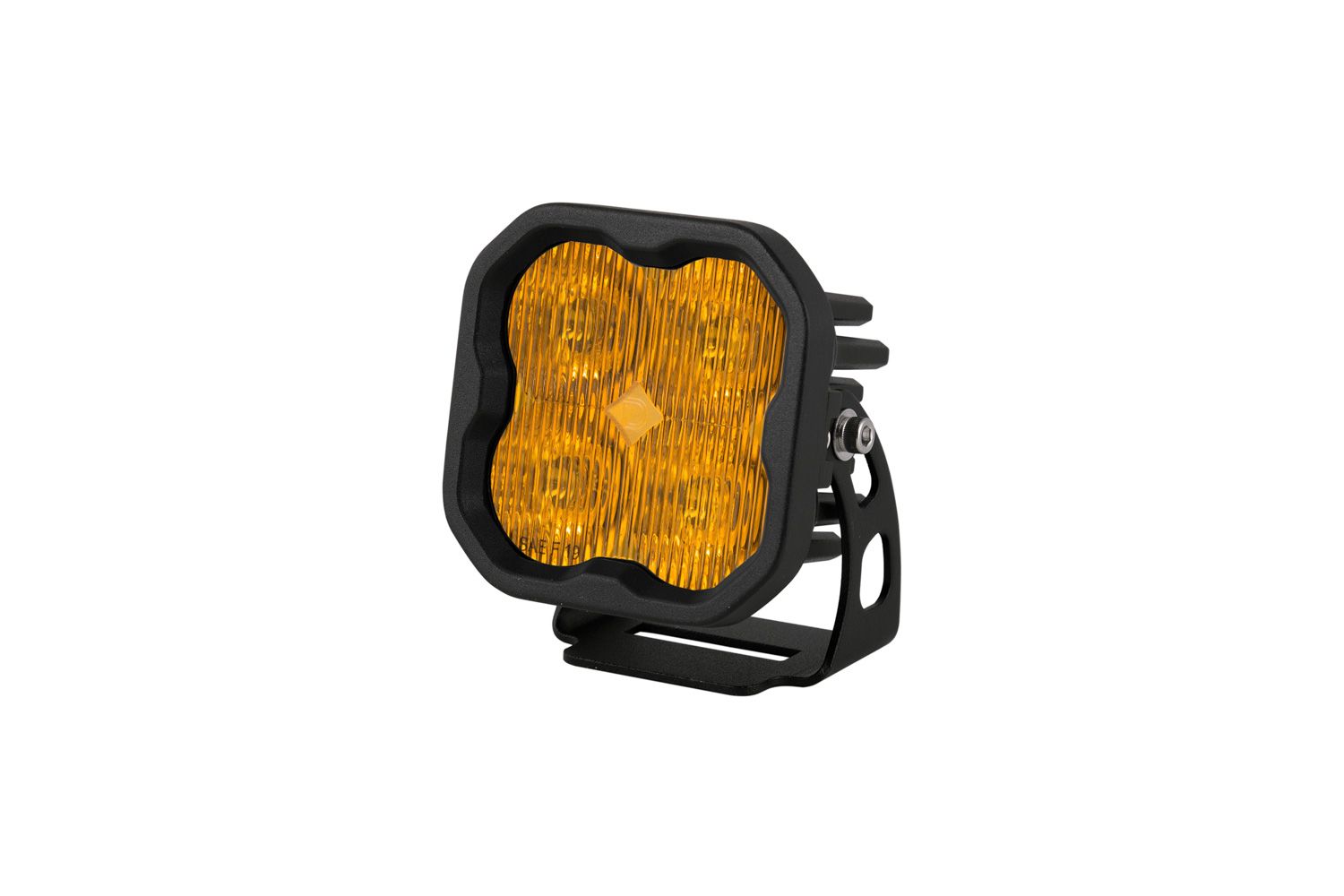

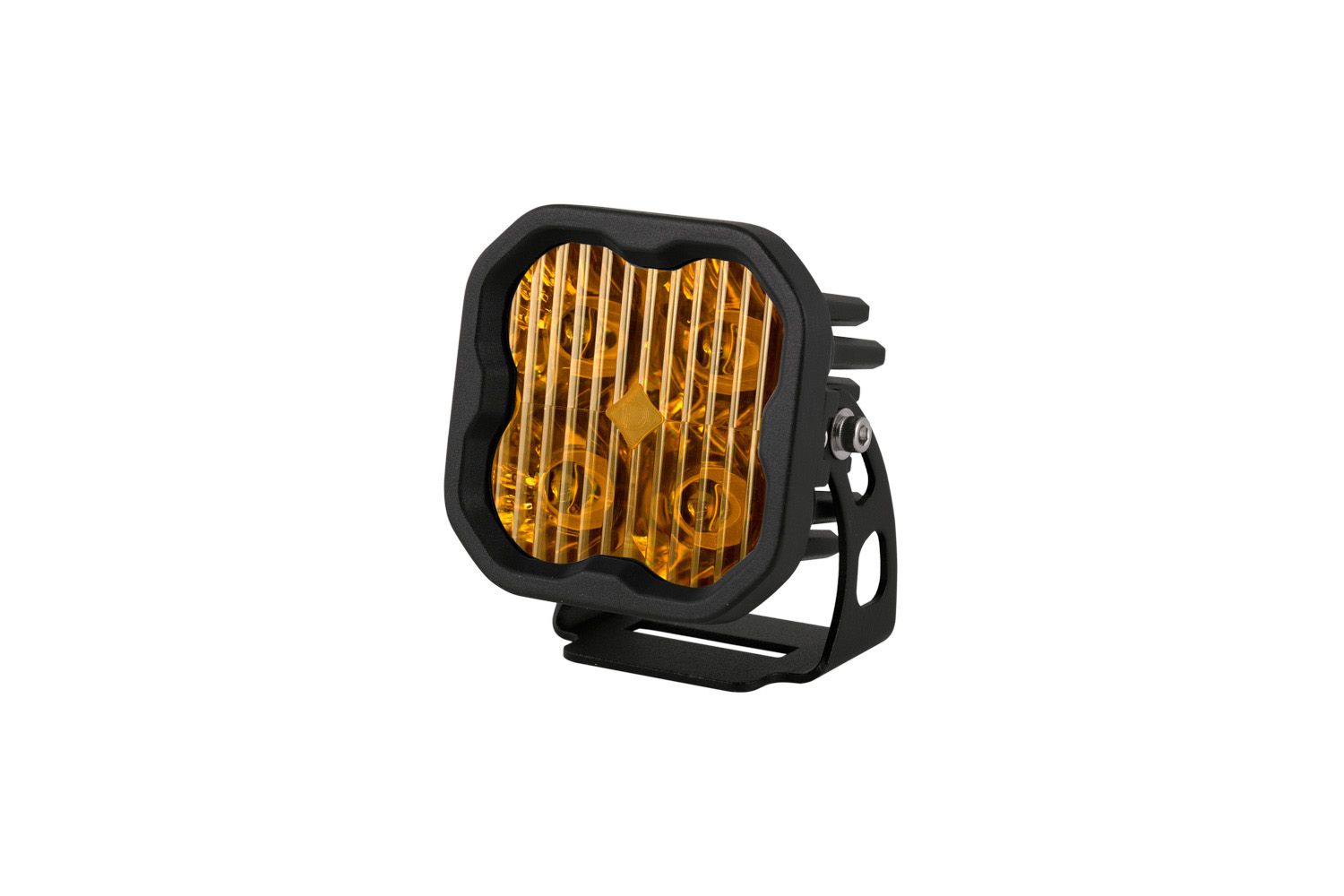

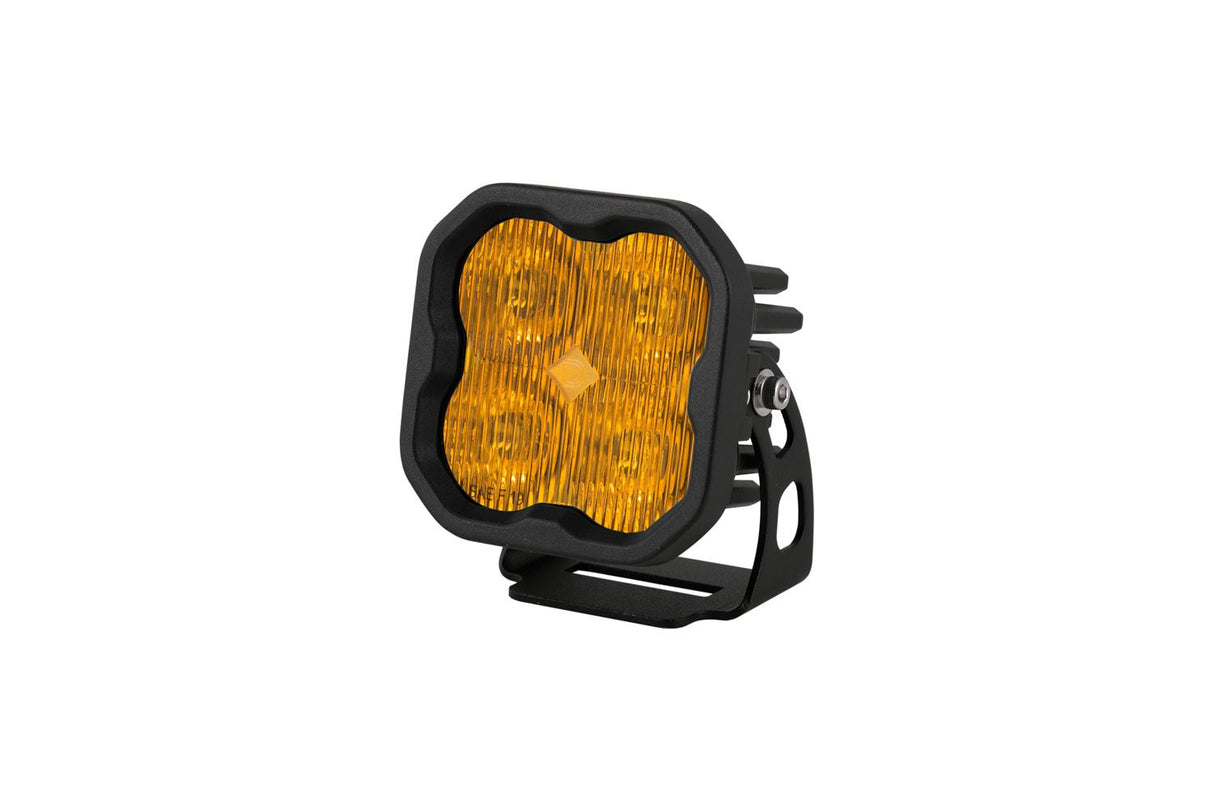

SS3 SAE Yellow Max LED Pod (one)

Diode Dynamics  |  SKU: DD6971S  |  Barcode: 691025932652
Regular price $ 431.00 CAD
Choose Your Beam Pattern
Backlight Color
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

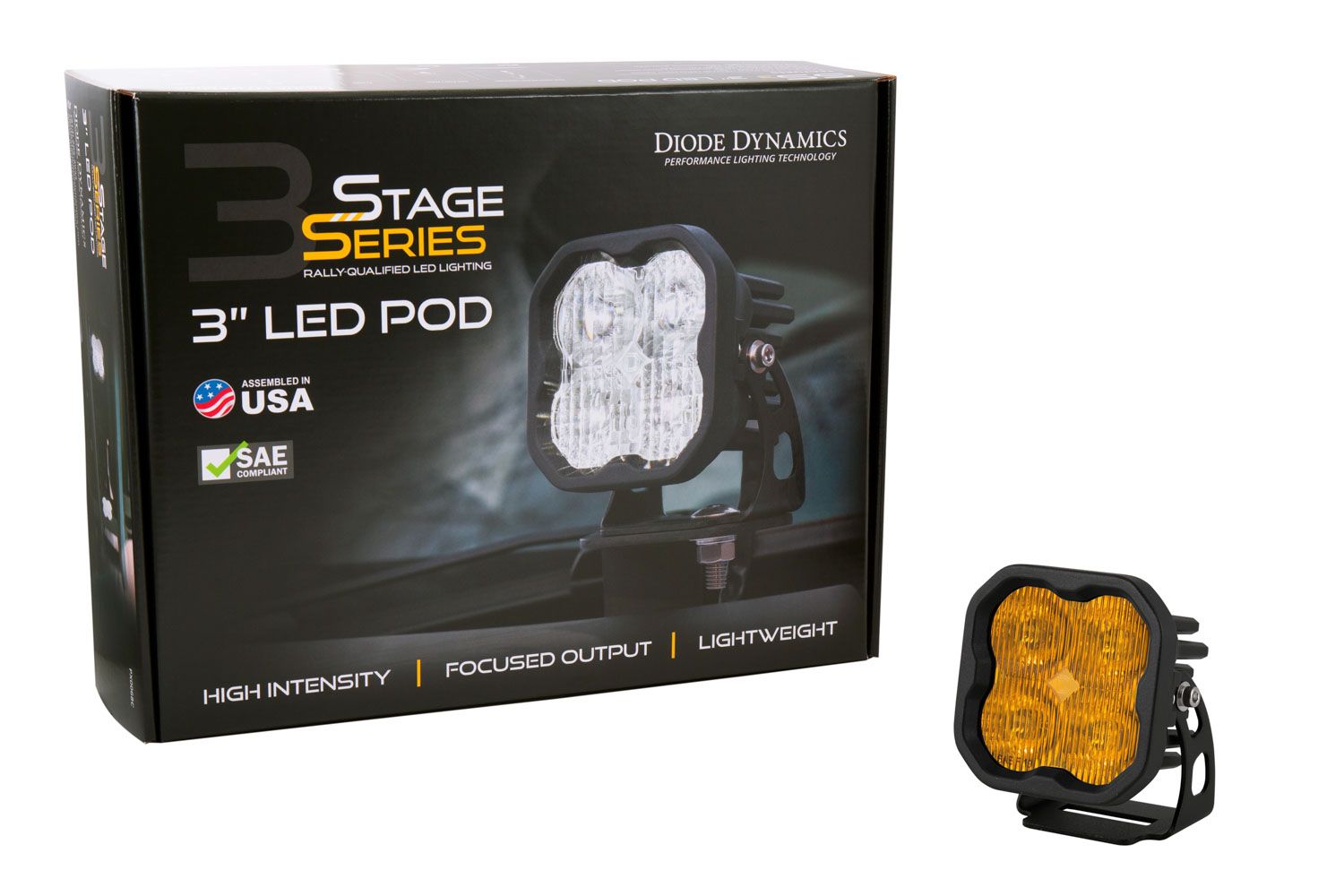

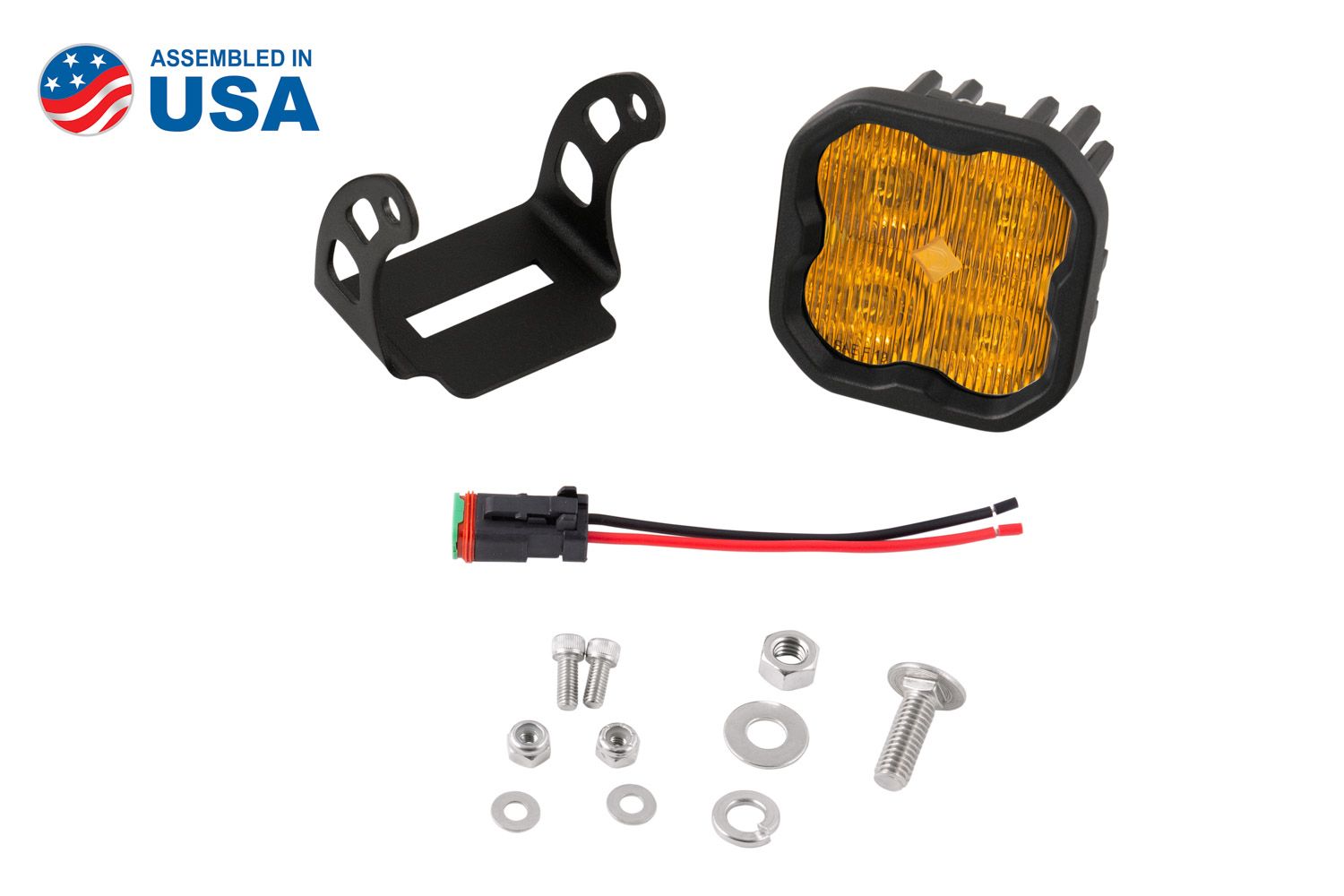

What's in the box 3 ITEMS
One (1) SS3 3” LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket and hardware
Optical
Color temperature 3000K
Beam spread Driving 20°x8°
Power 38W
Operating voltage 9-30V
Grade Performance
LED emitter Osram Boost HX
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Features & benefits
Modern TIR optics provide highest intensity on the market

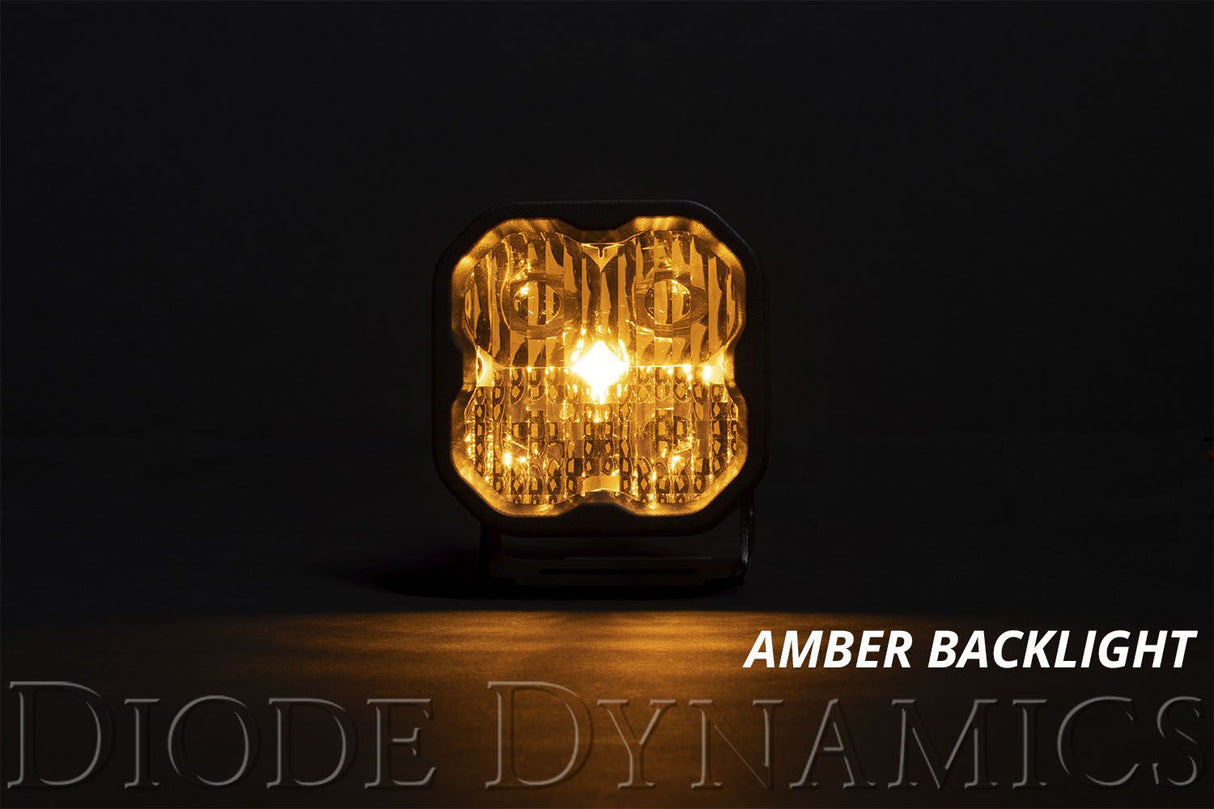

Backlight accent feature, available in a brilliant amber color

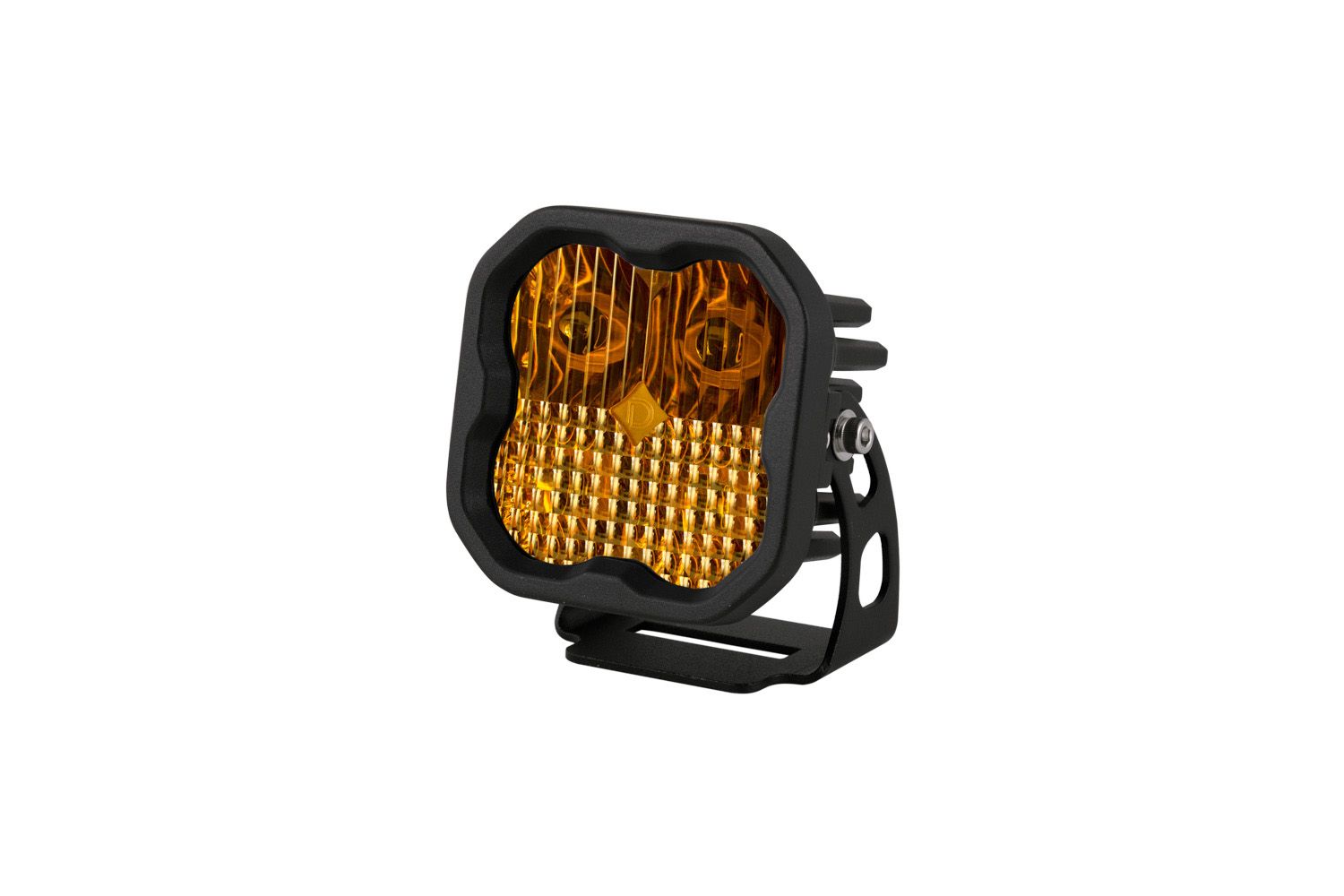

Available in SAE Driving, SAE Fog, Flood, Combo/Driving, or Spot beam patterns
Durable powdercoated aluminum construction
Integrated Deutsch-style connector
Made in USA with global materials.
Description

The Diode Dynamics SS3 Max LED Pod is a single, high-output 3-inch light built for drivers who need serious illumination for off-road trails, work sites, or low-visibility conditions. Available in Amber, Combo, Driving, and SAE Fog beam patterns, this pod gives you the flexibility to build a lighting setup tuned exactly to how you use your truck, Jeep, or UTV.

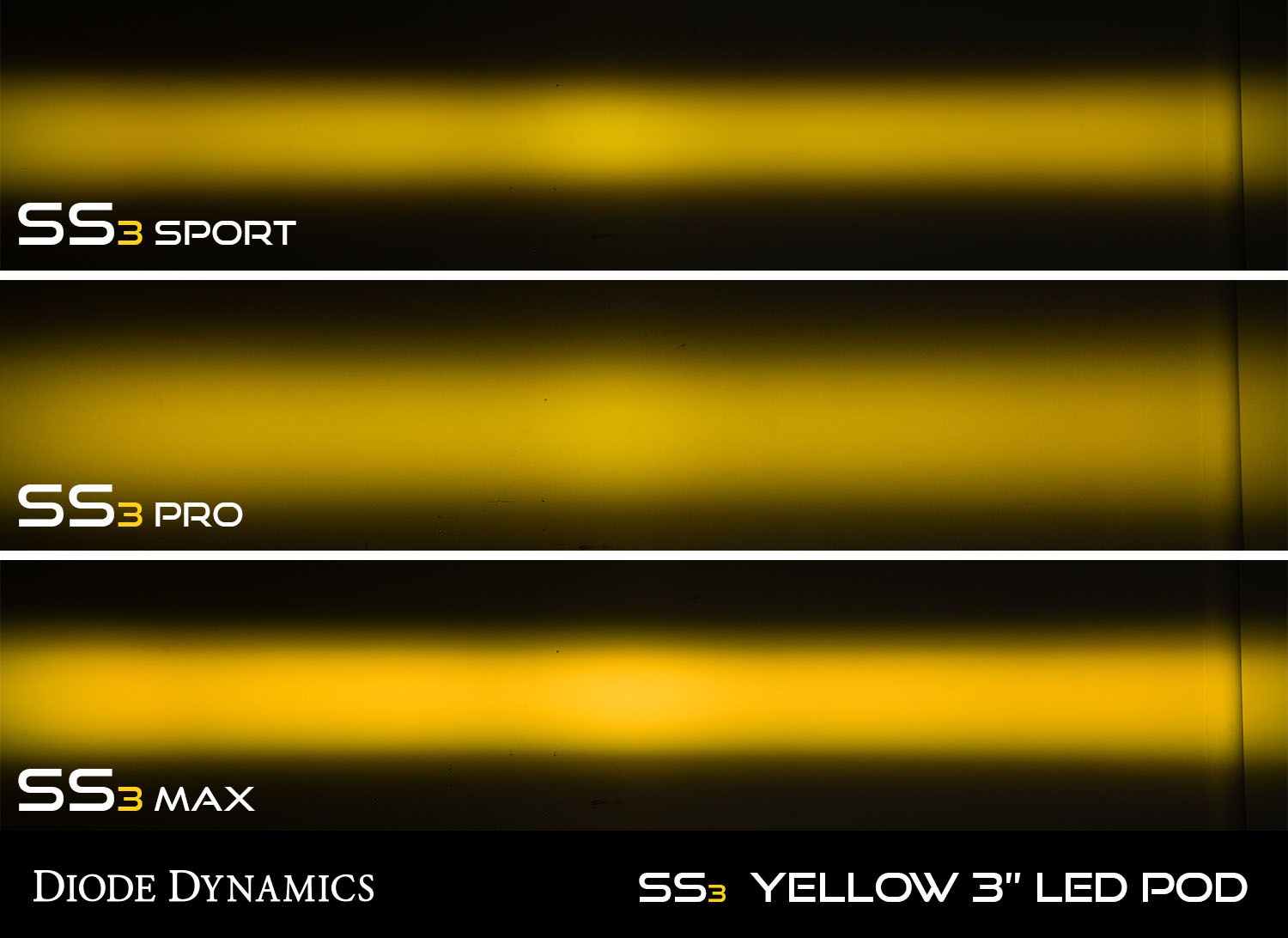

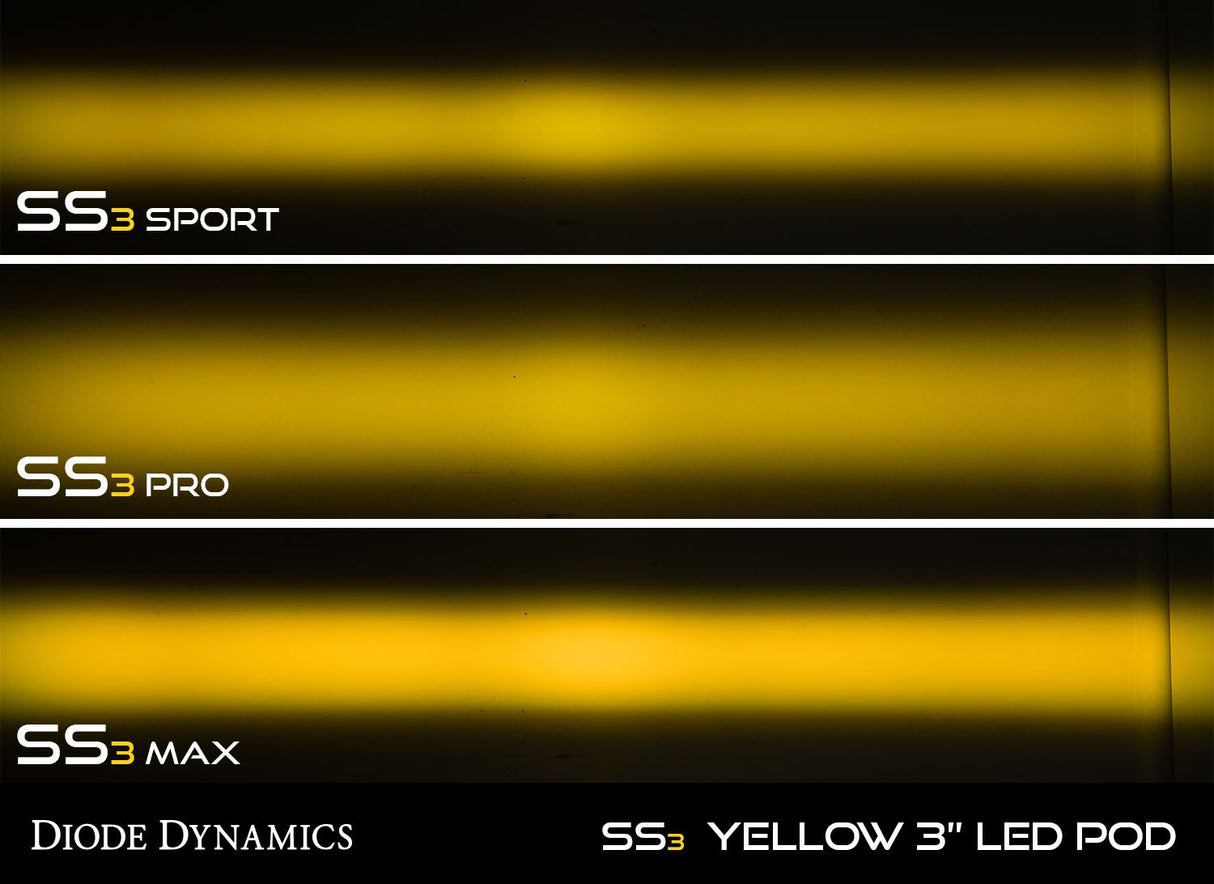

The Driving pattern throws a tight, long-reaching beam ideal for high-speed trail running or dark rural roads, while the Combo pattern balances reach and spread for versatile all-around use. The SAE Fog pattern is road-legal and designed to cut through rain, dust, and low-lying haze, and the Amber option reduces eye strain and scatter in harsh conditions.

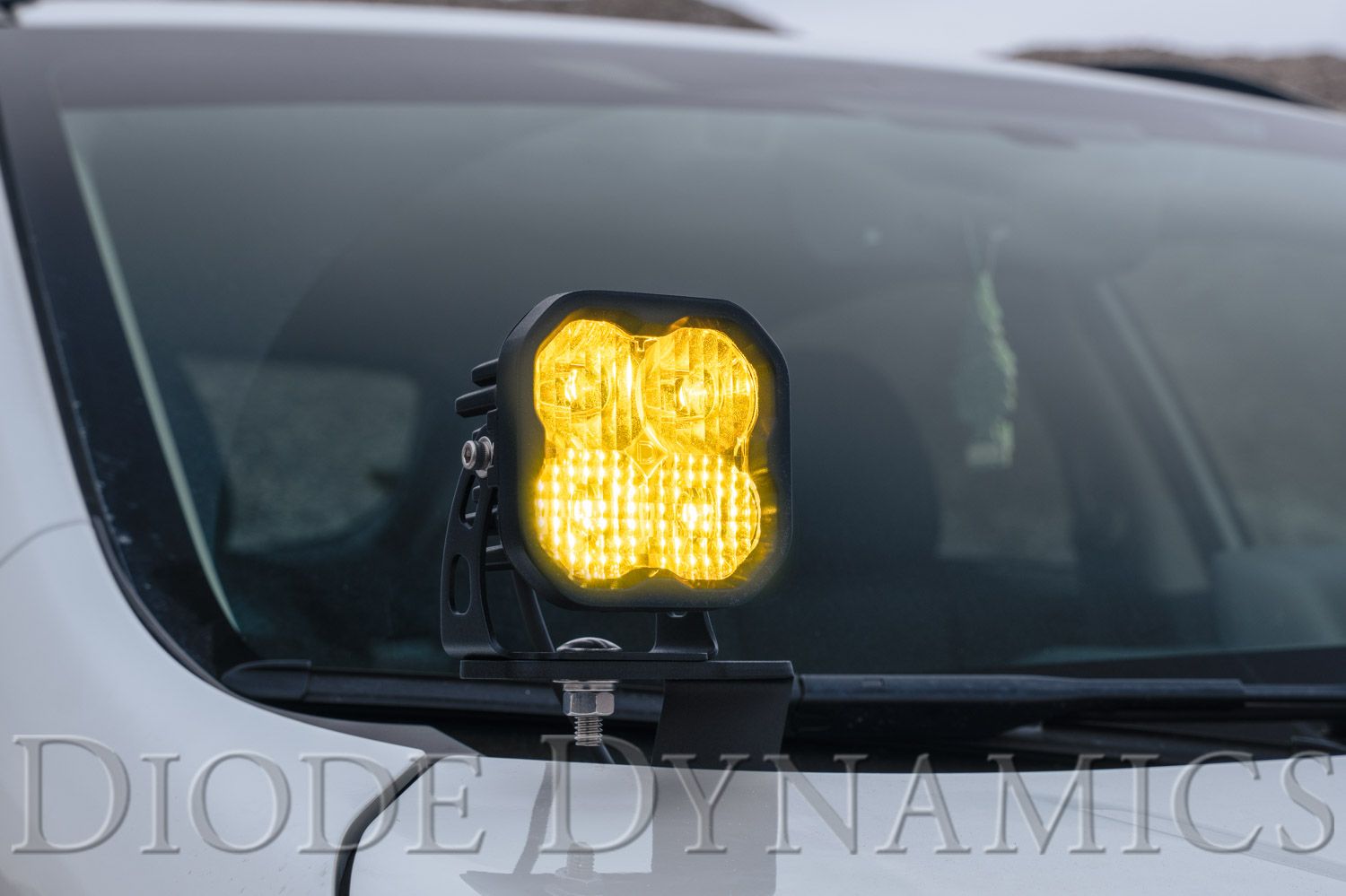

SS3 Max pods are built around custom TIR optics that extract maximum efficiency from every LED, packed into a rugged, powdercoated housing with a pin-fin heatsink to manage heat over long runs. Whether you're mounting a pair as driving lights or adding a single pod to fill a specific gap in your setup, this is a no-compromise choice.
