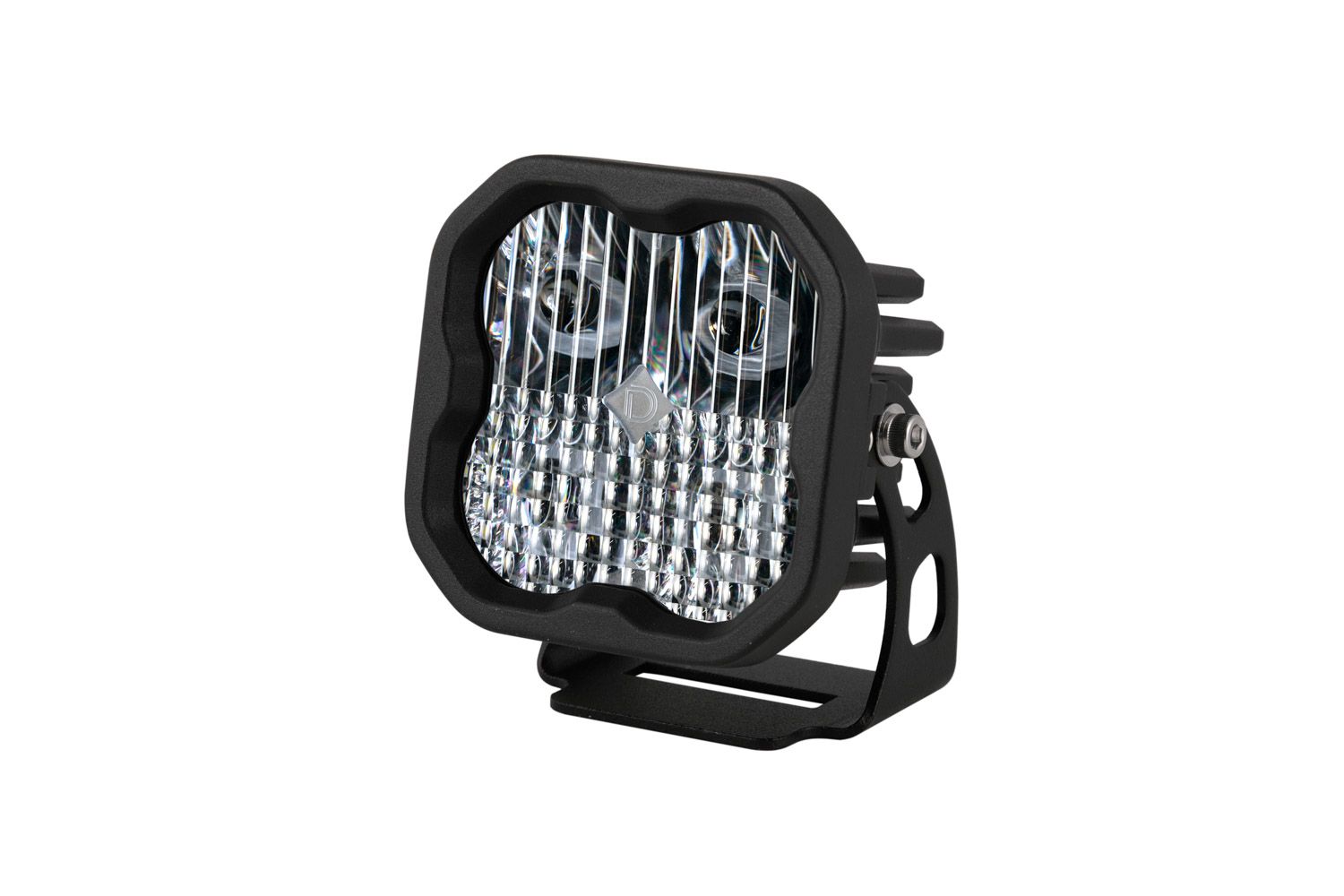

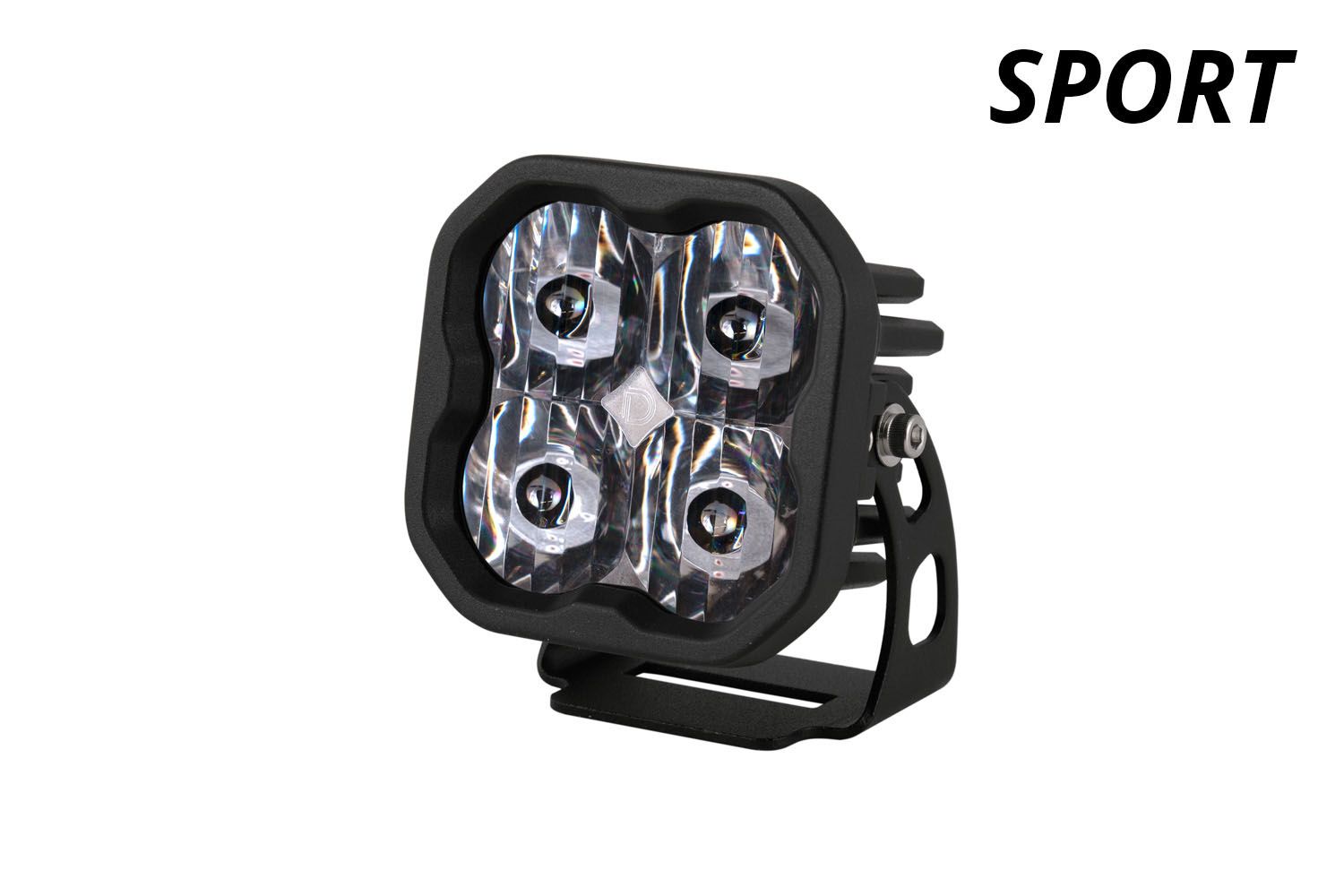

SS3 SAE/DOT White Sport LED Pod (one)

Diode Dynamics  |  SKU: DD6865S  |  Barcode: 691025931365
Regular price $ 208.00 CAD
Choose Your Beam Pattern
Choose Your Backlight Color
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

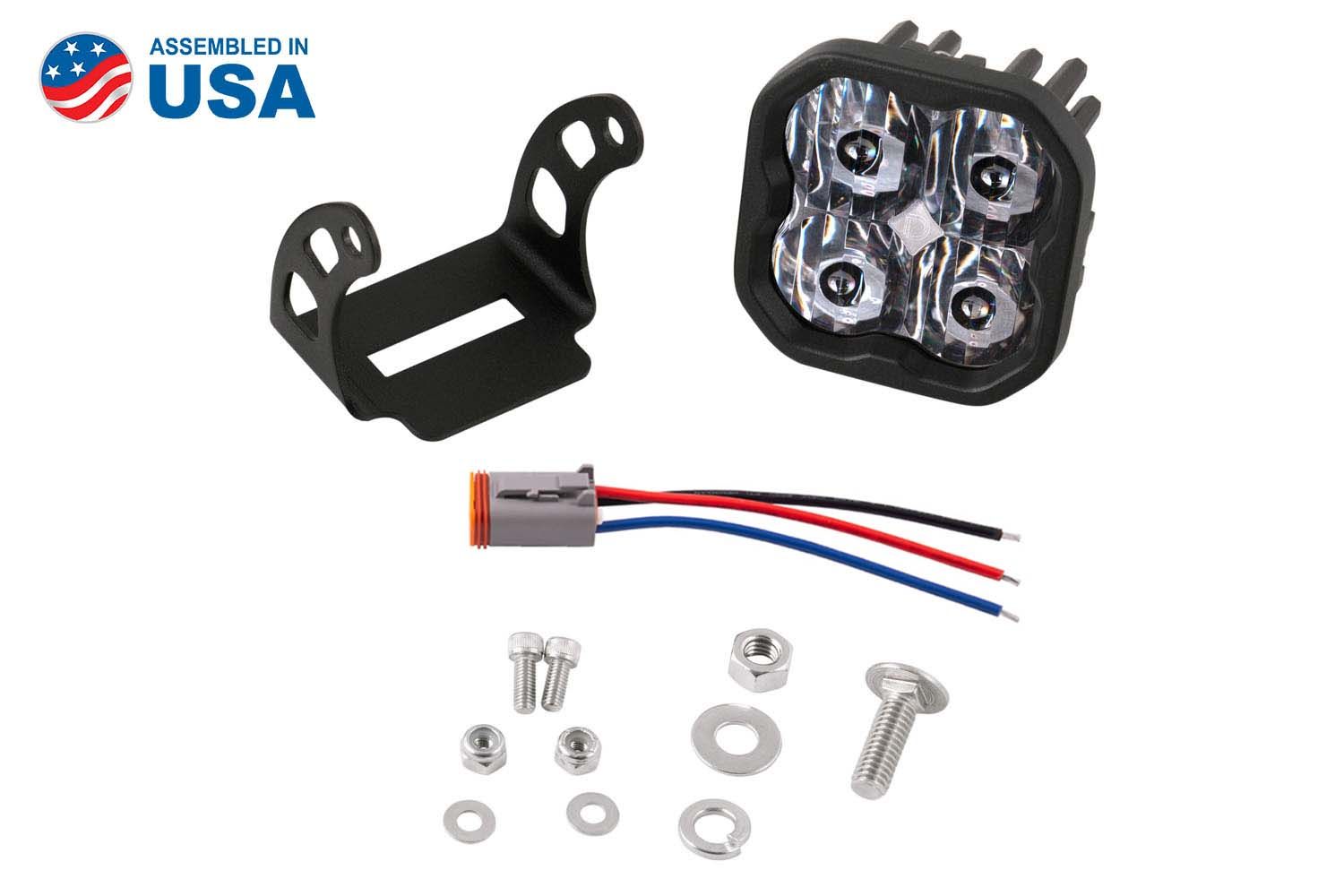

What's in the box 3 ITEMS
One (1) SS3 3” LED Pod
One (1) Deutsch-style wire pigtail
One (1) Mounting bracket and hardware
Optical
Lumens 1520
Color temperature 6000K
Beam spread Combo/Driving 80°x30°
Power 14W
Operating voltage 9-30V
Grade Performance
Intensity 9 100 cd
LED emitter Luxeon Z ES
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Features & benefits

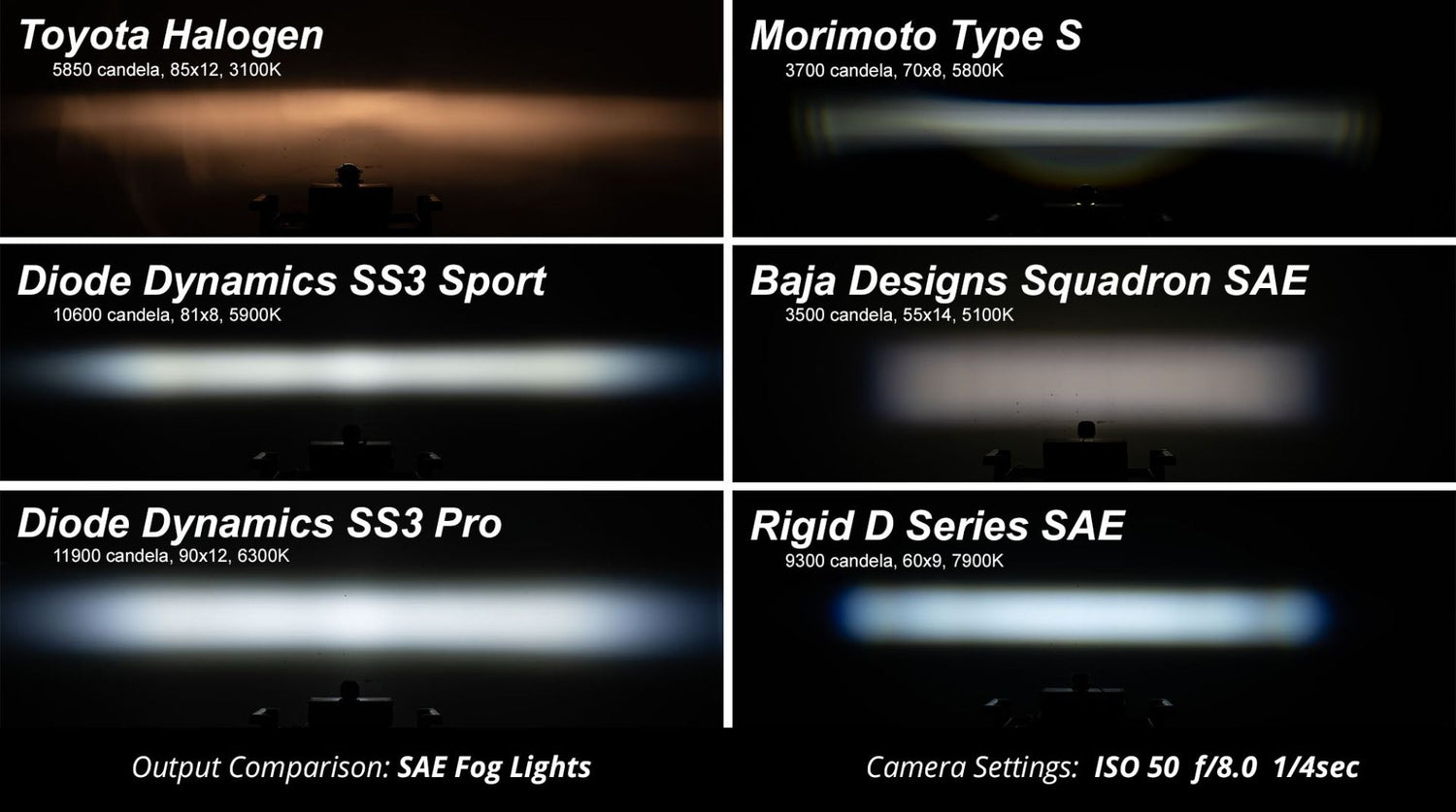

Modern TIR optics provide highest intensity on the market

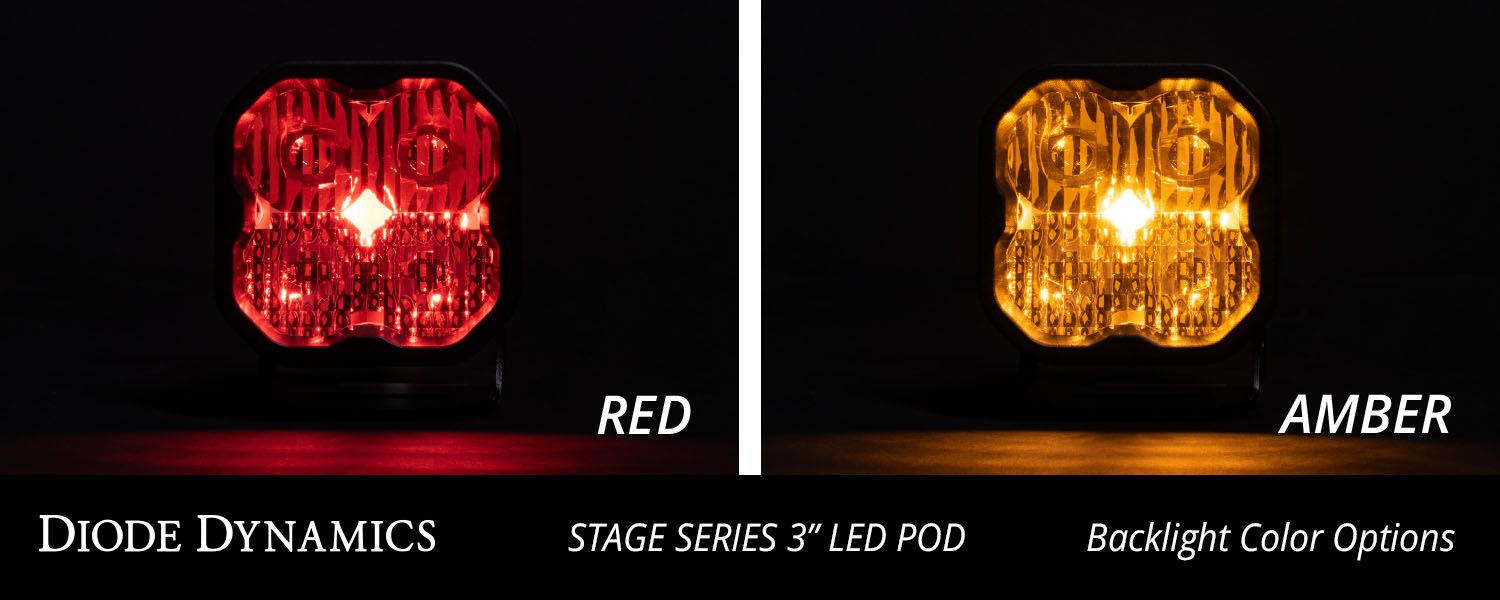

Backlight accent feature, available in amber or red

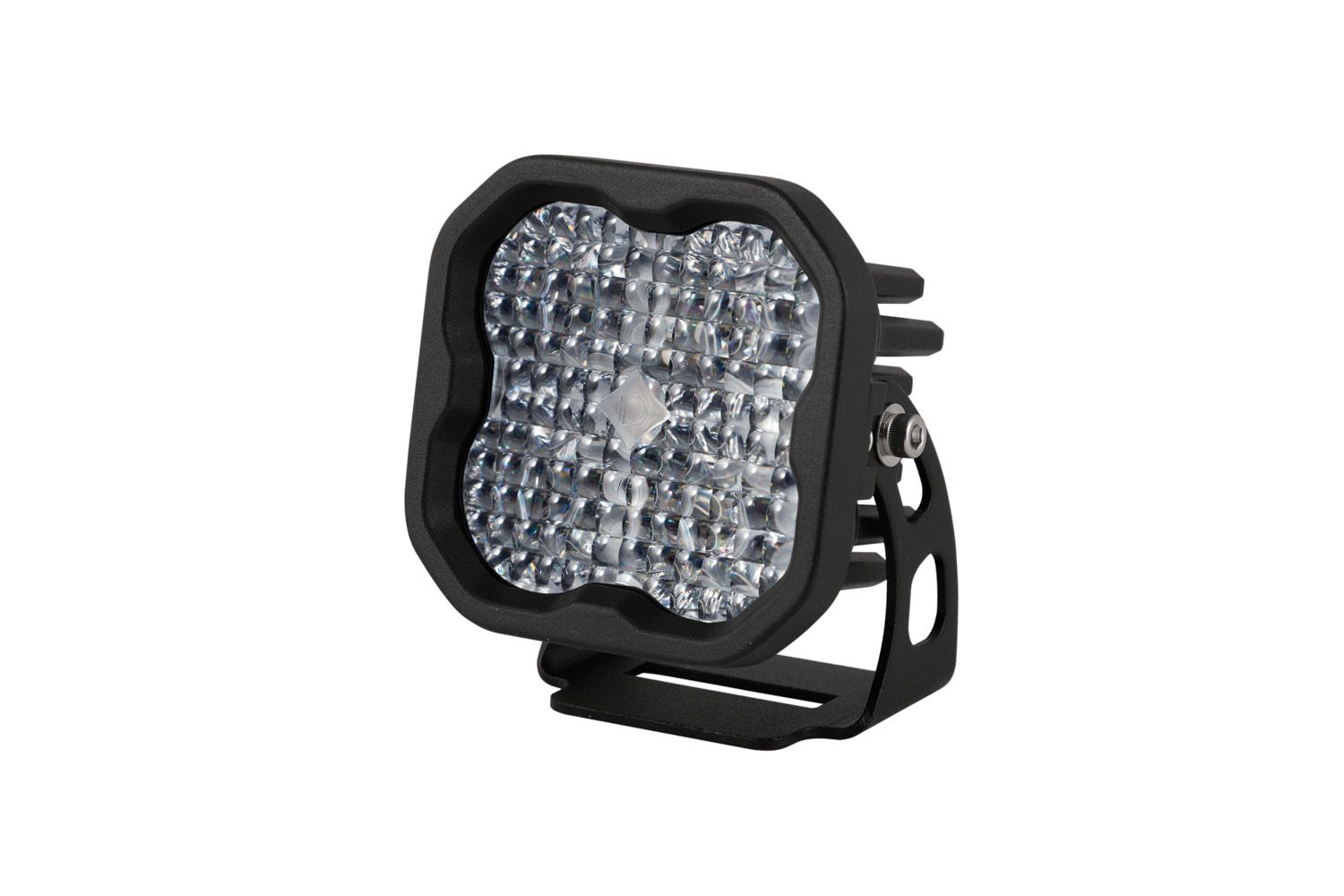

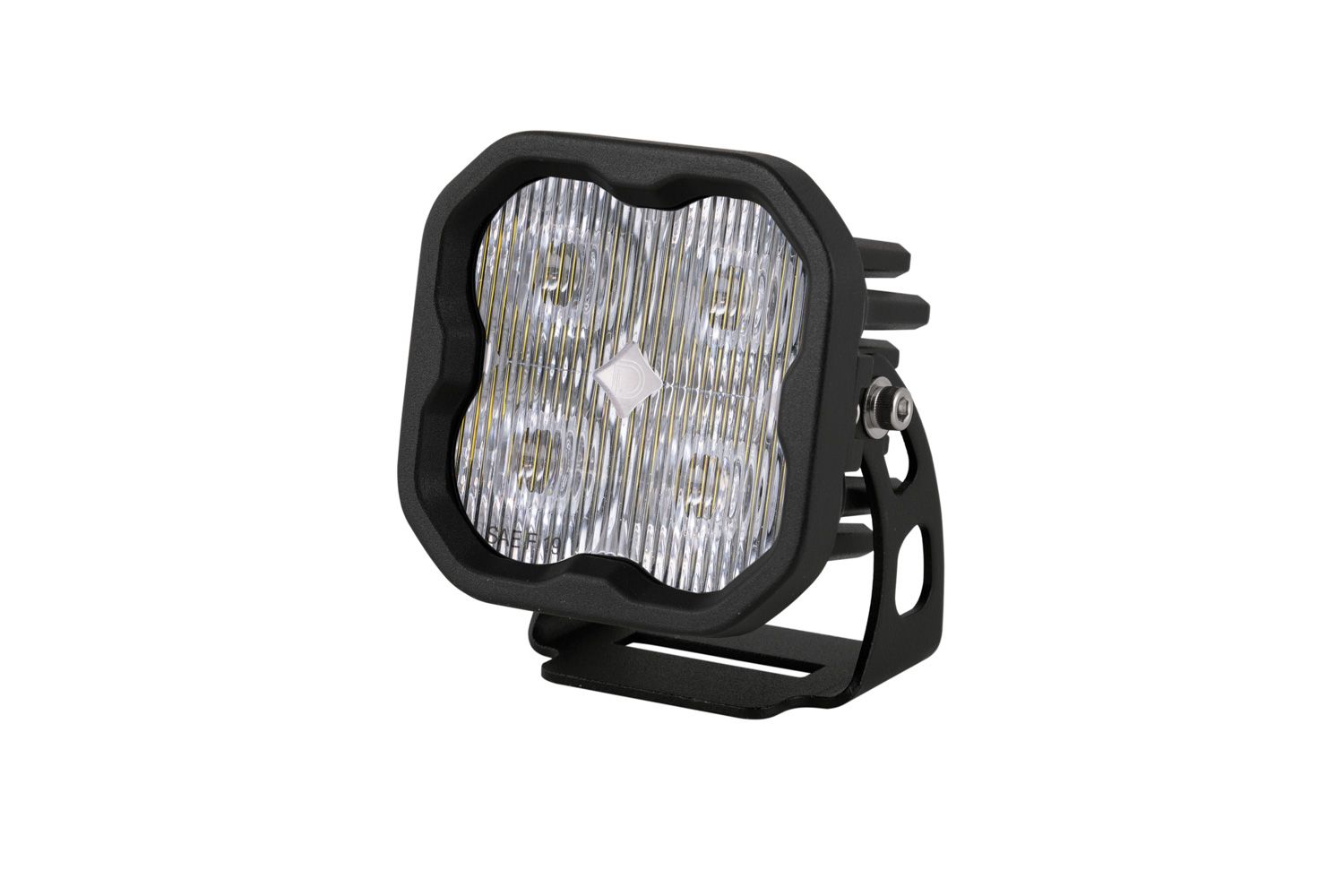

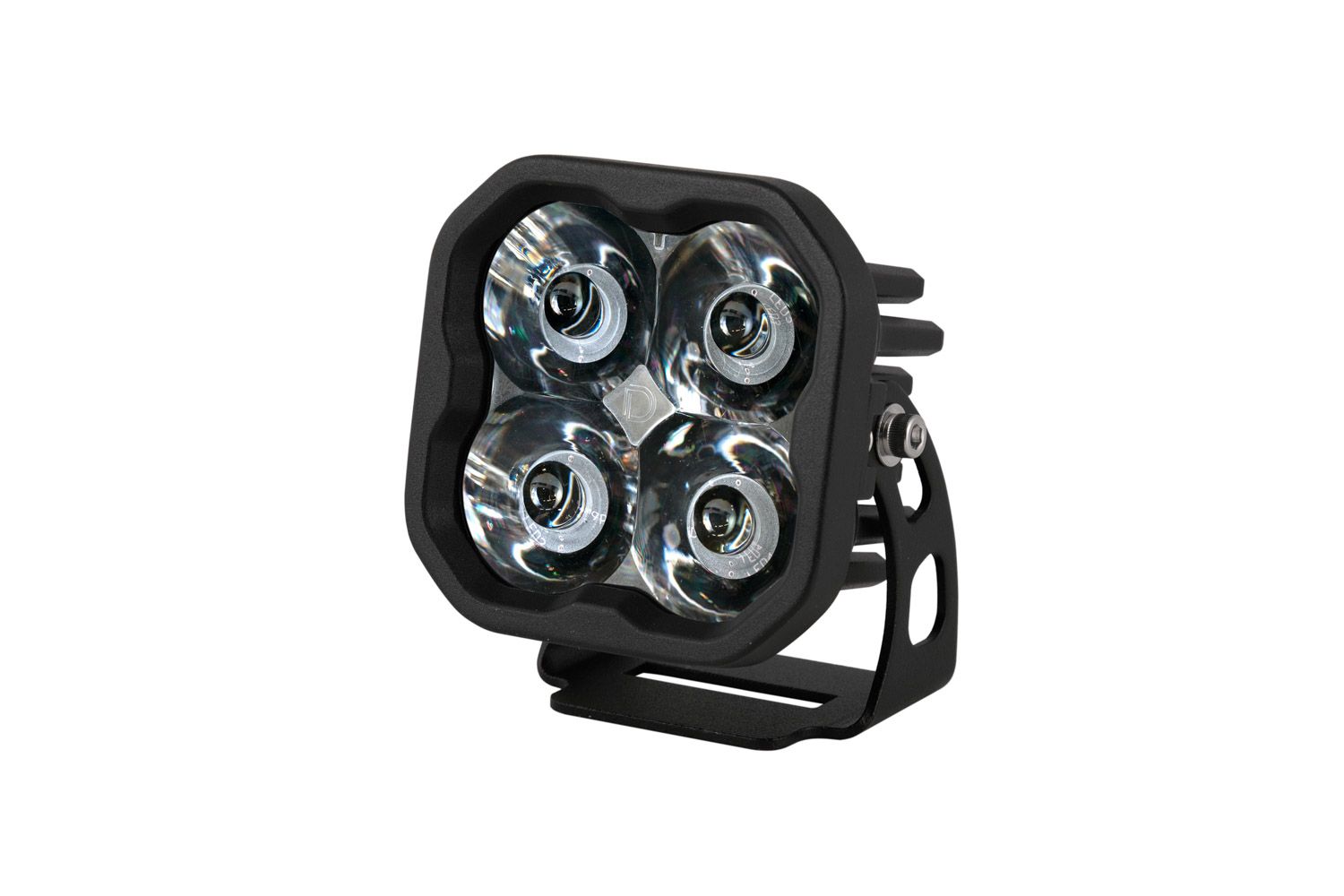

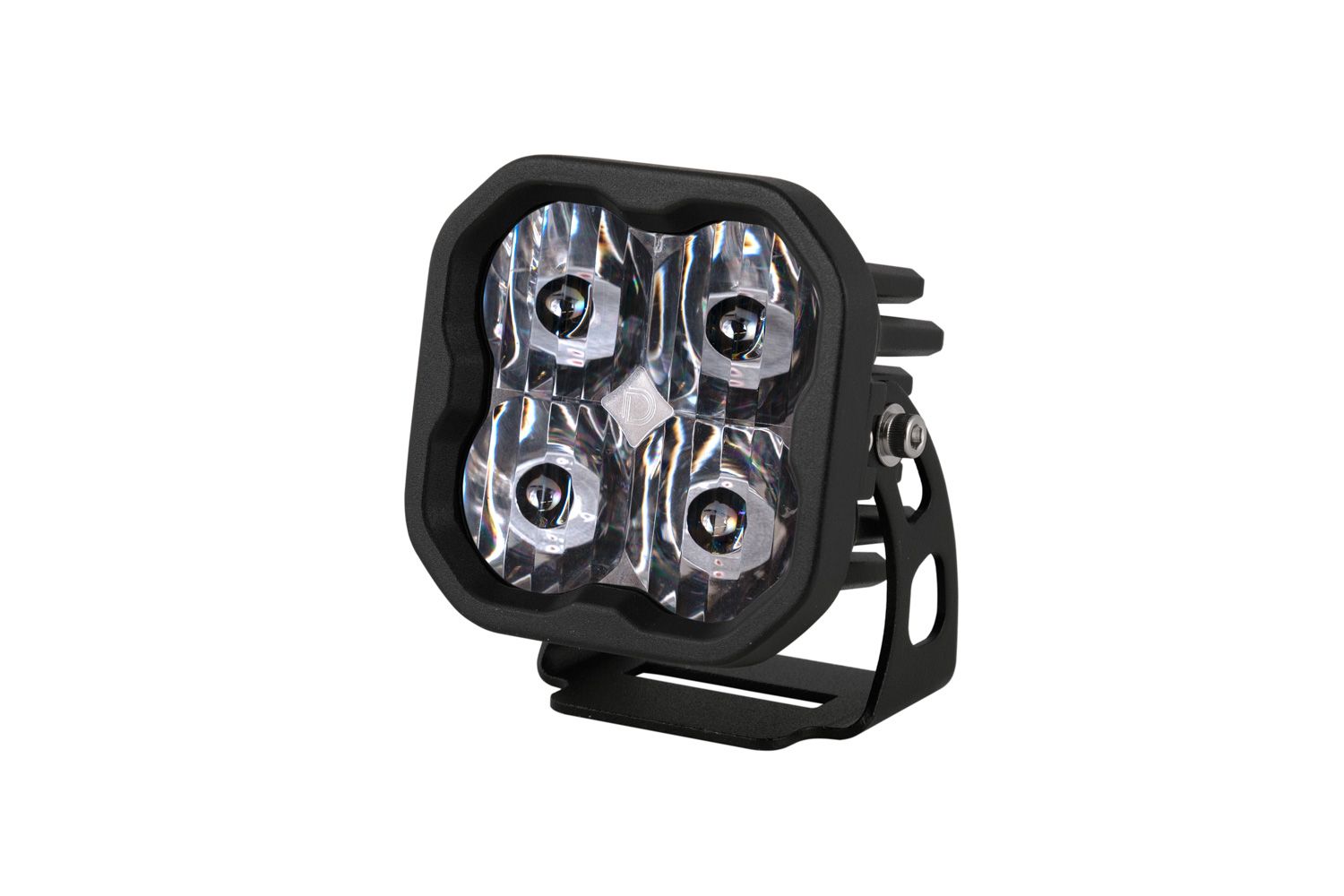

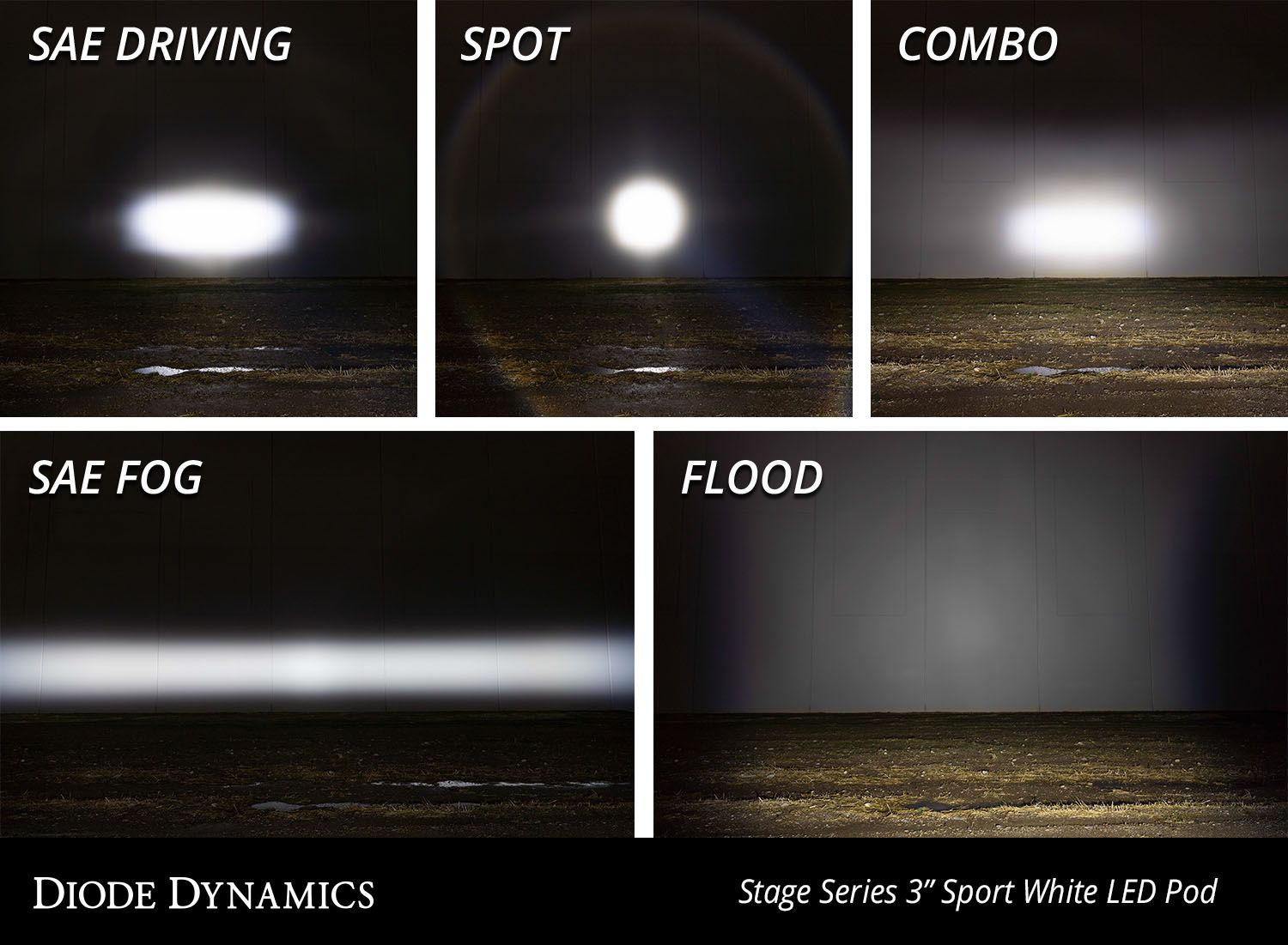

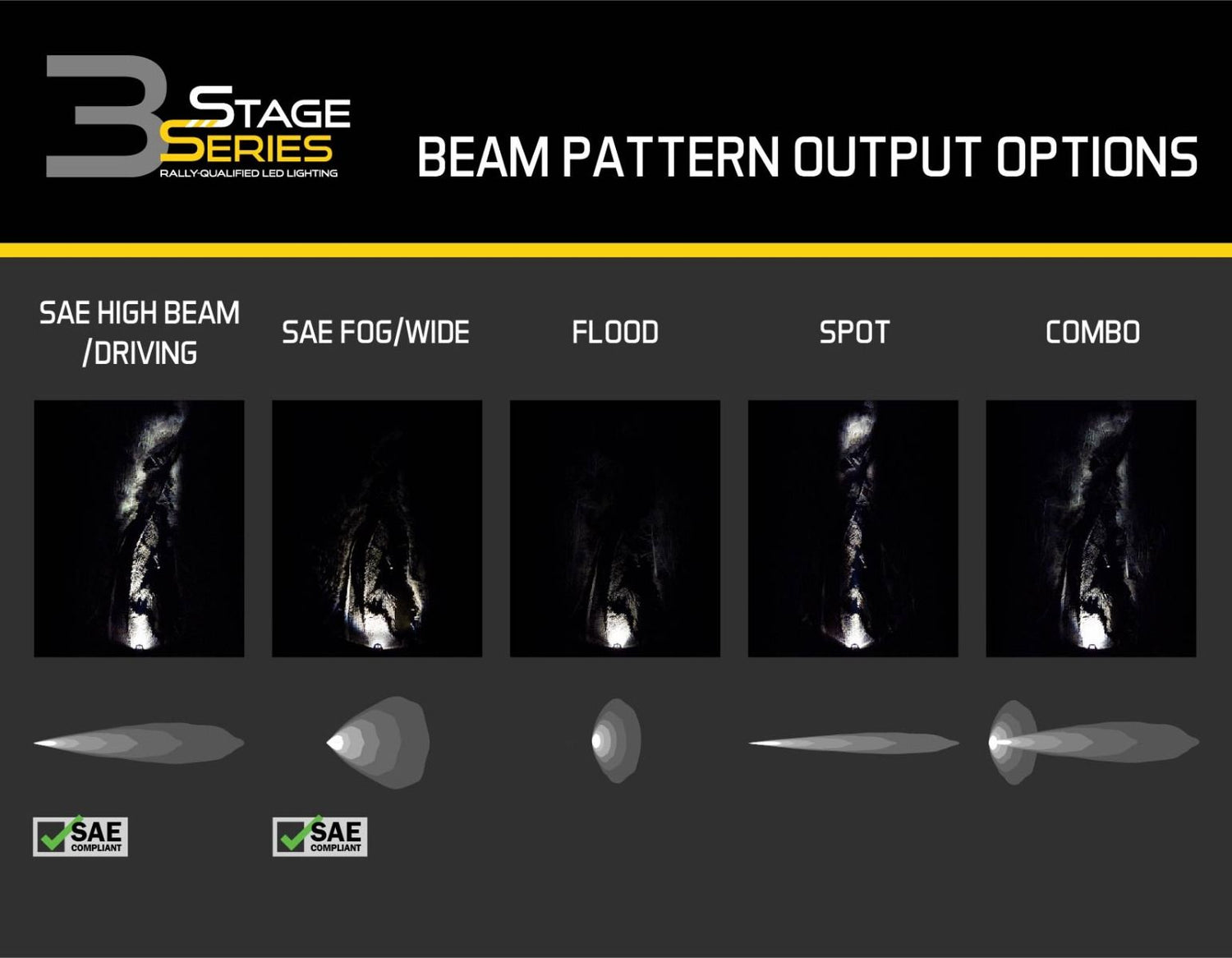

Available in SAE Driving, SAE Fog, Flood, Combo/Driving, or Spot beam patterns
Durable powdercoated aluminum construction
Integrated Deutsch-style connector
Made in USA with global materials.
Description

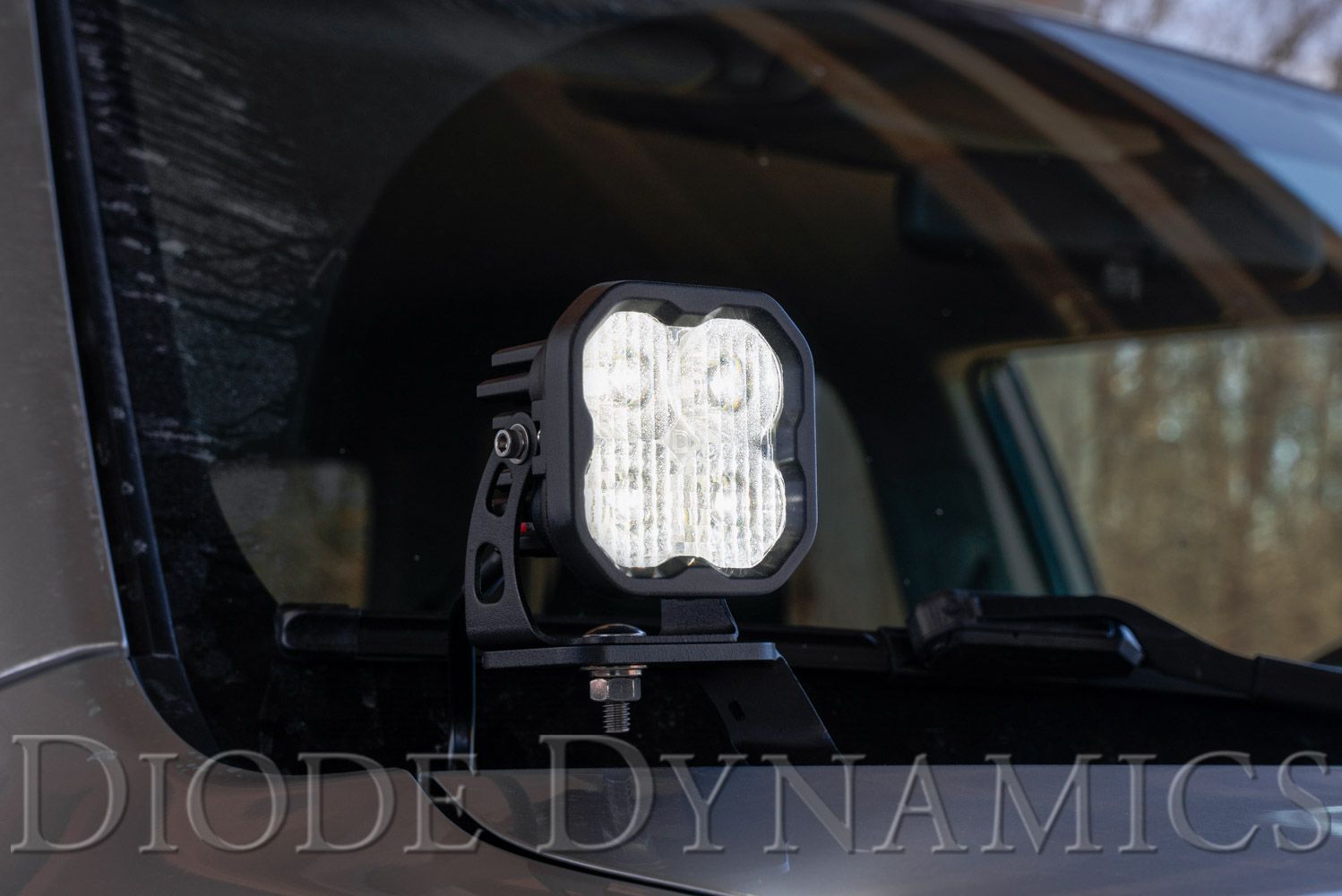

The Diode Dynamics SS3 Sport LED Pod is a compact, high-output auxiliary light built for truck, Jeep, and UTV owners who need reliable illumination across a wide range of conditions. Whether you're mounting a pair up front, in a ditch light position, or tucked into a bumper, these pods deliver focused, usable light exactly where your setup demands it.

The SS3 Sport is available in eight beam and color configurations — Spot, Combo, Flood, SAE Driving, SAE Fog, Amber, and Red — so you can match the optic to your specific application. Spot and Driving patterns push light far down the trail, Combo and Flood patterns spread coverage across wider areas, and the SAE-compliant options are suited for road-legal fog or driving light use. Amber works well in dust, rain, and snow, while Red is ideal for low-profile illumination that won't compromise night vision.

TIR optics squeeze maximum efficiency from every LED, and the pin-fin heatsink keeps thermals in check during extended use. If you're building out a lighting system or replacing a single pod, the SS3 Sport gives you a proven, well-engineered foundation to work from.

Documentation
$ 208.00 CAD● In stock
