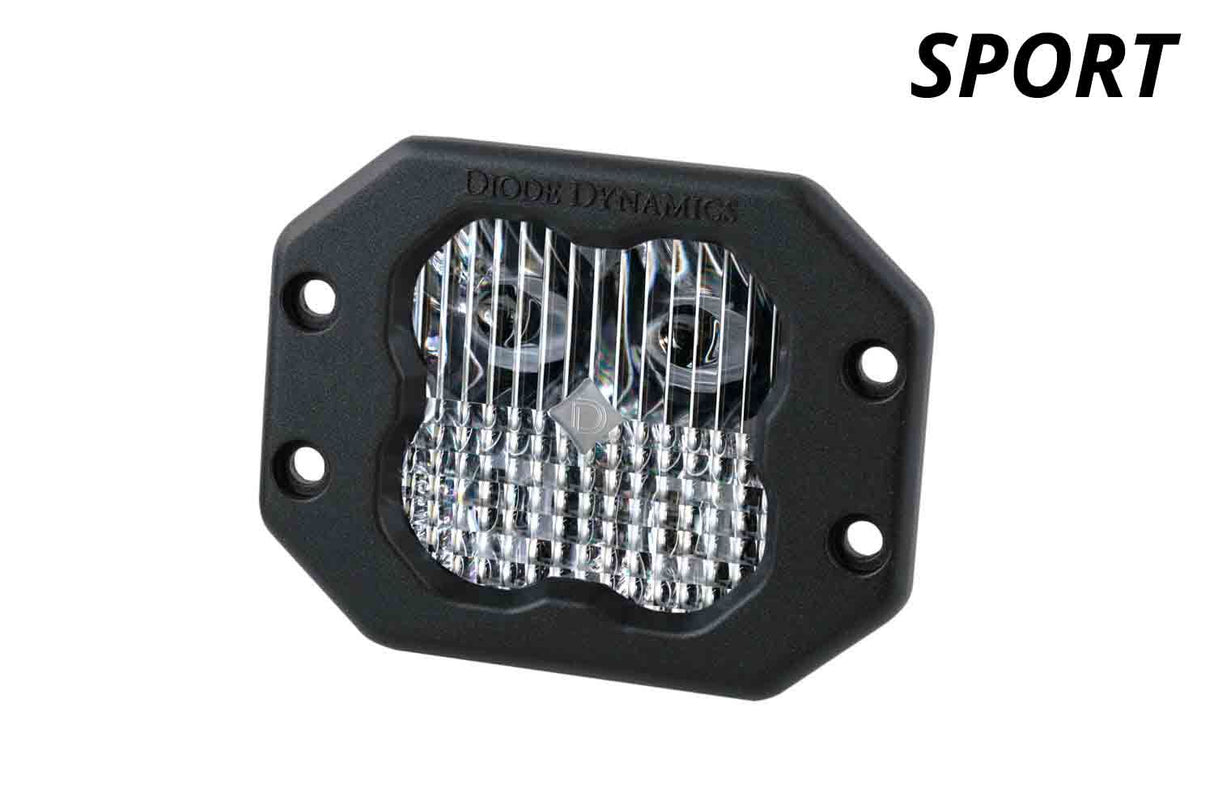

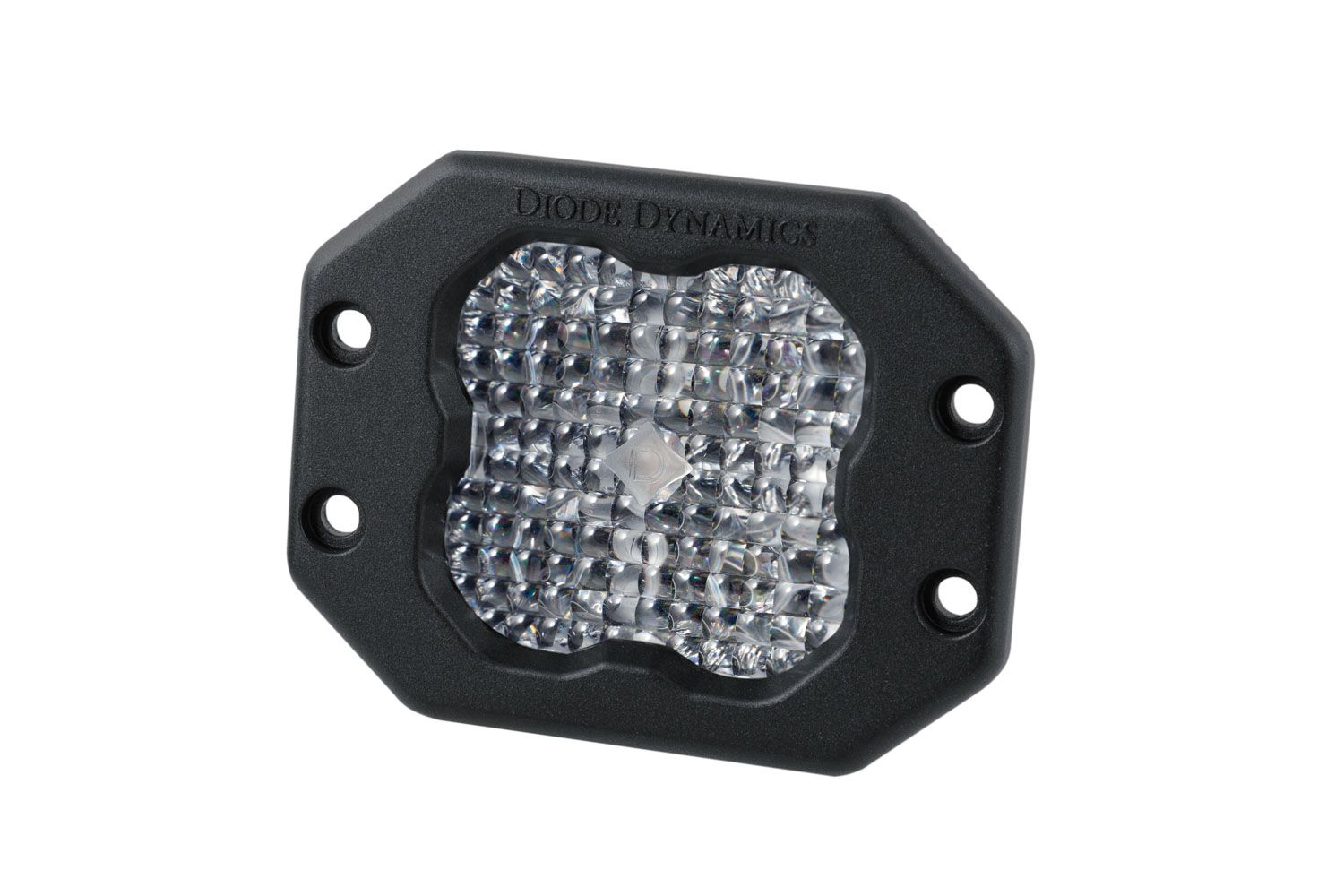

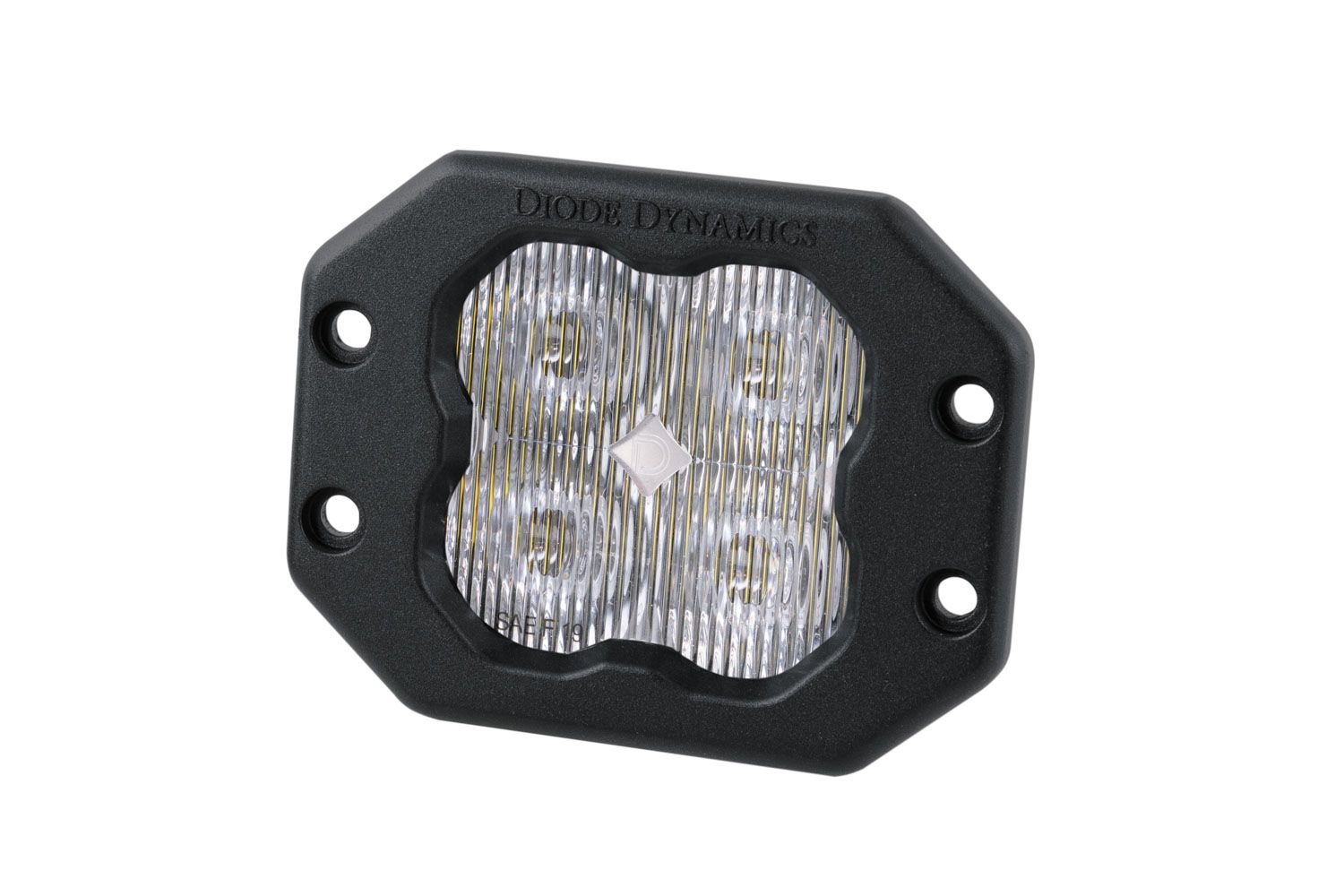

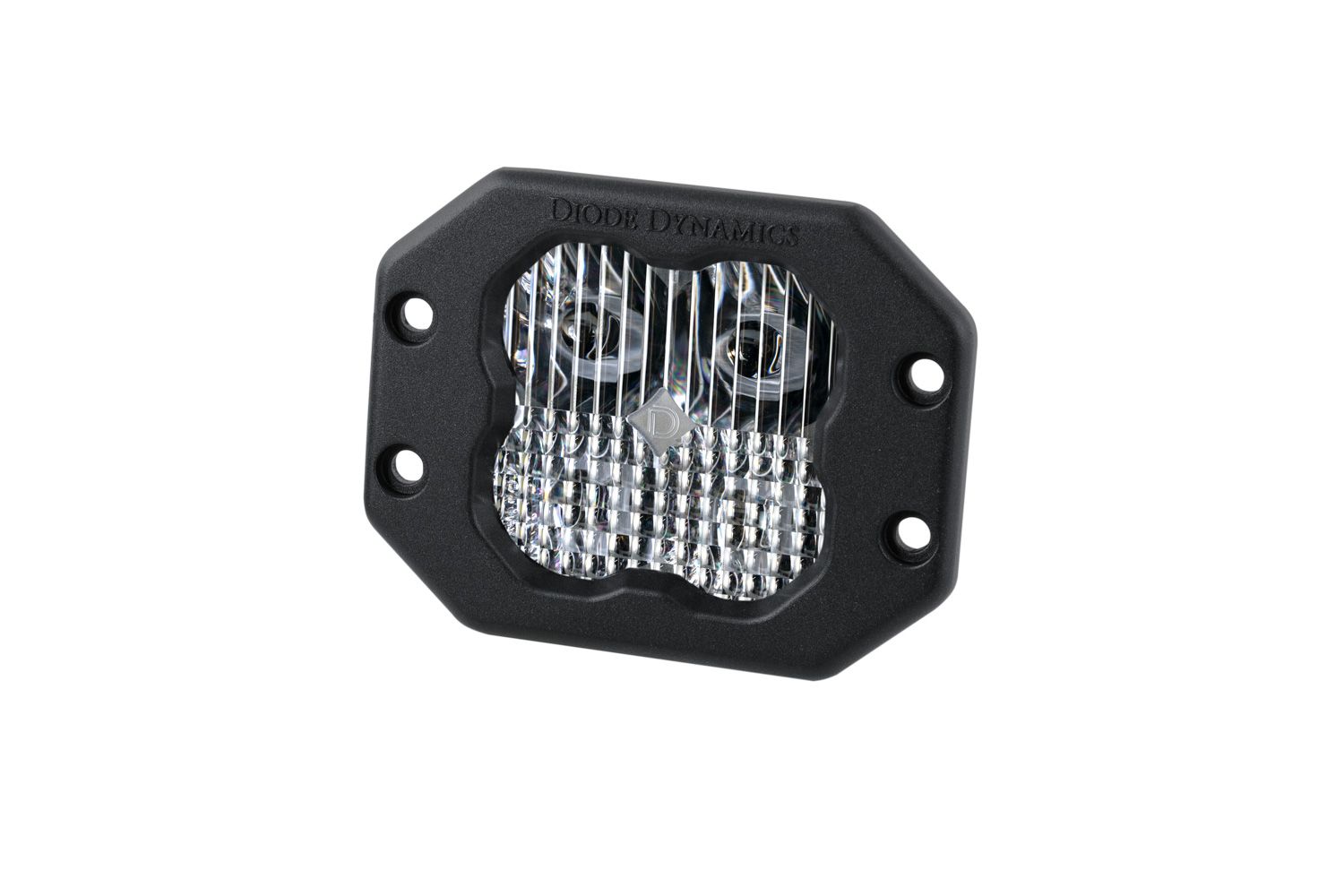

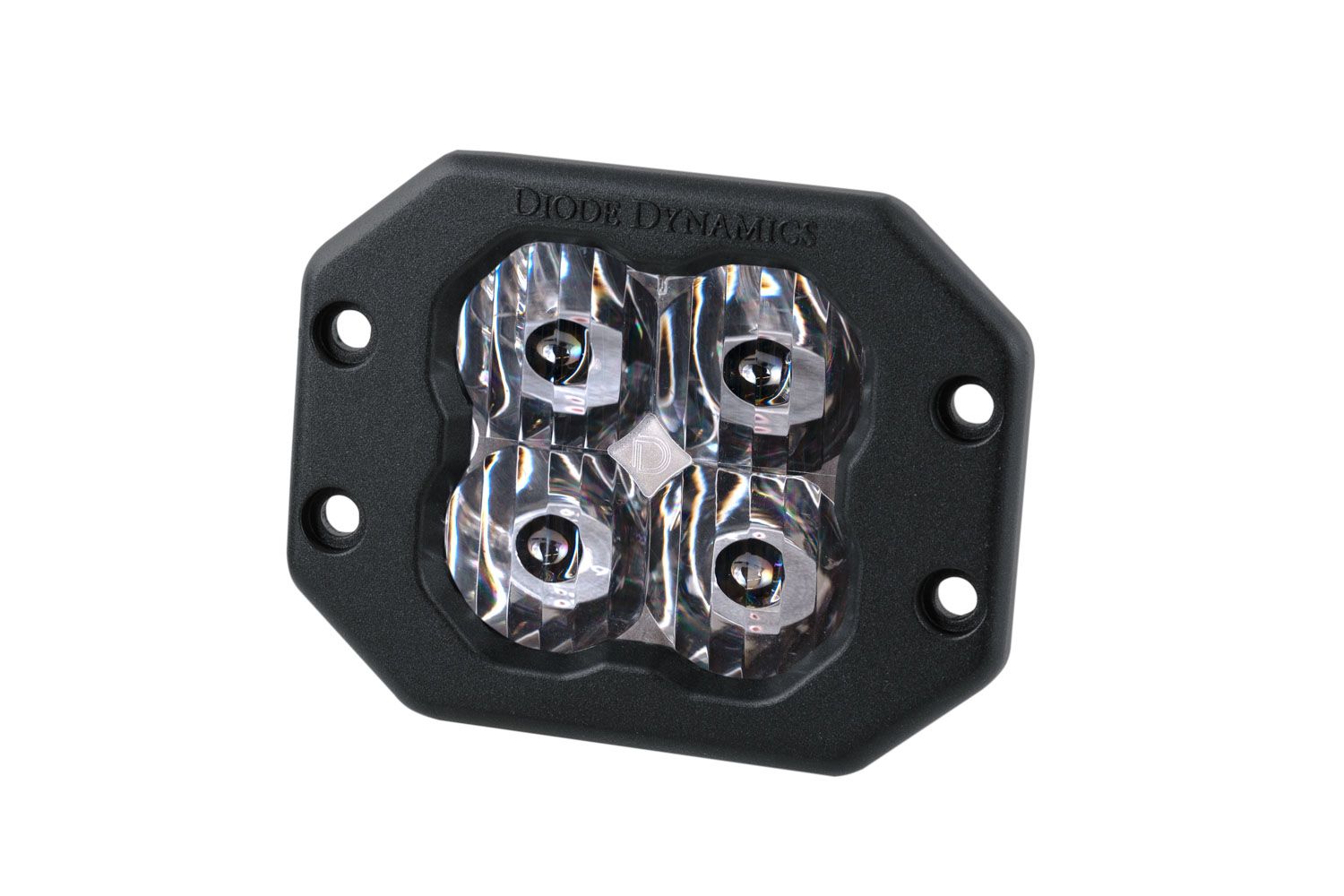

SS3 SAE/DOT White Sport Flush Mount LED Pod (one)

Diode Dynamics  |  SKU: DD6920S  |  Barcode: 00691025932904
Regular price $ 208.00 CAD
Choose Your Beam Pattern
Choose Your Backlight Color
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

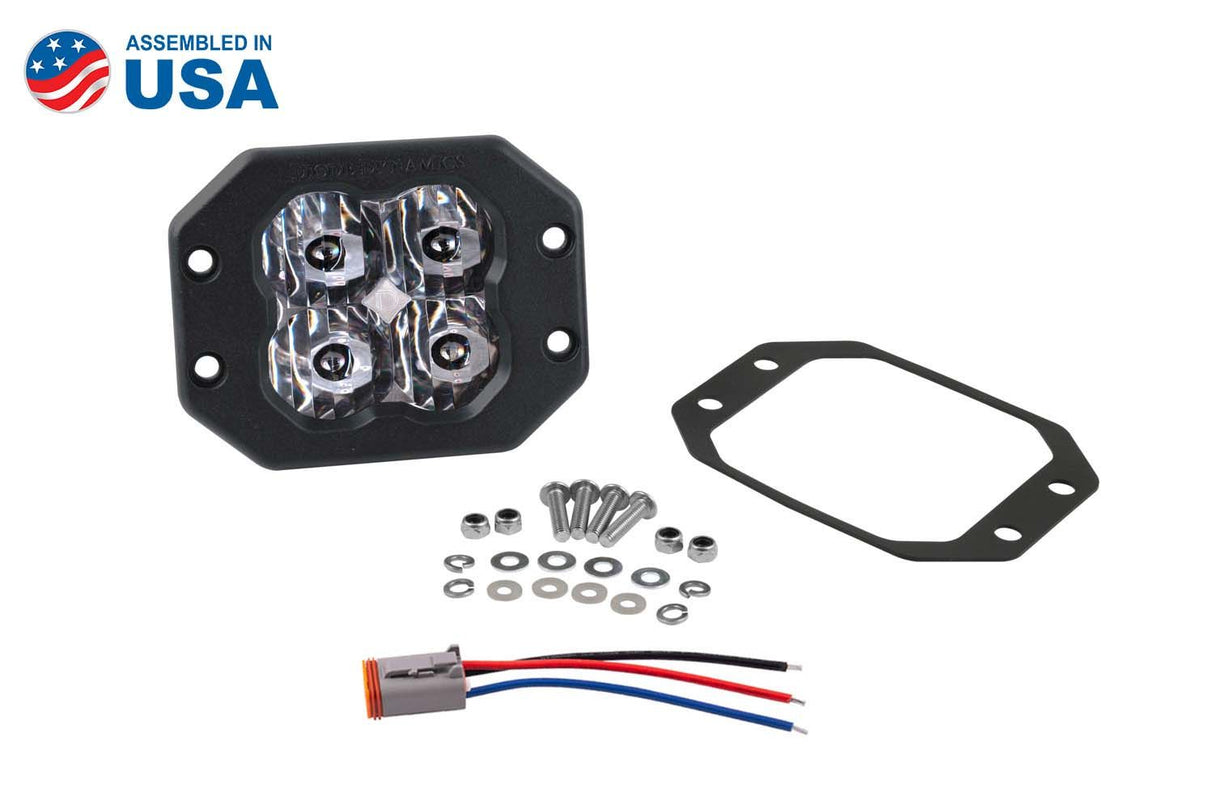

What's in the box 6 ITEMS
One (1)

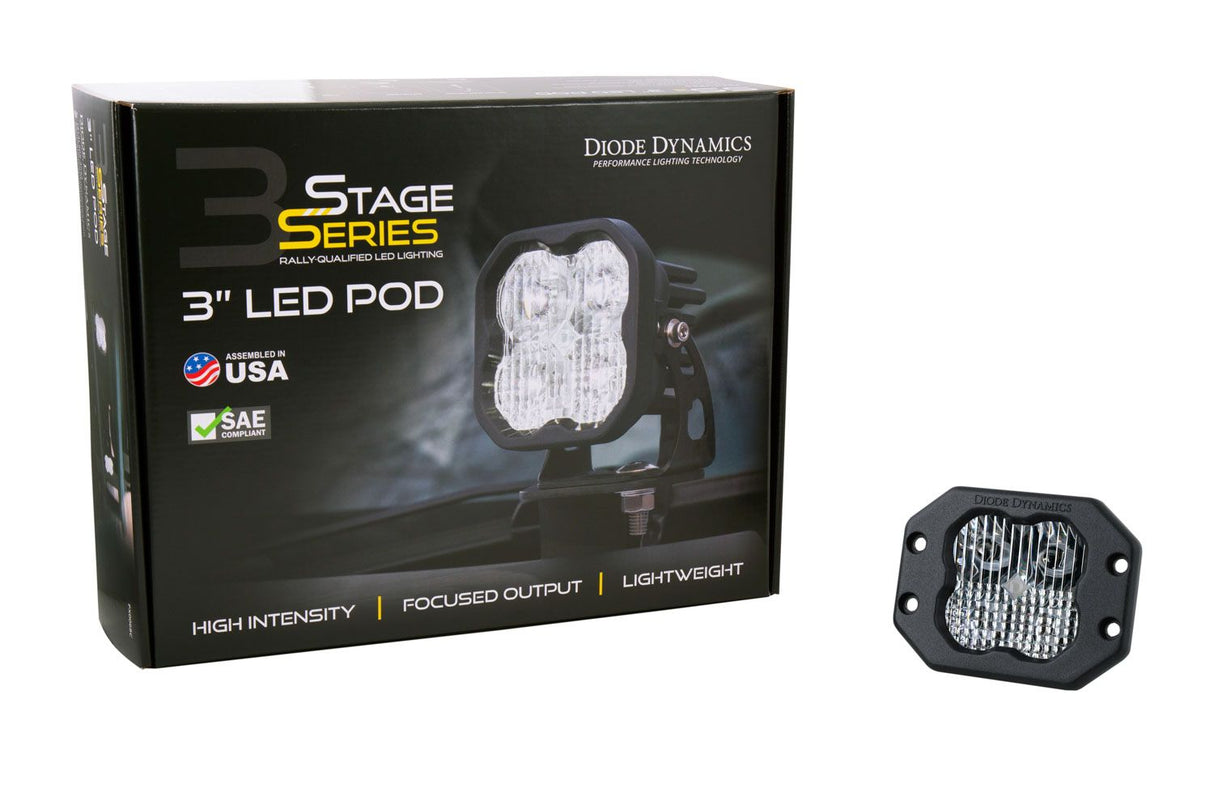

SS3 3” Flush LED Pod
One (1) Deutsch-style wire pigtail
One (1) Flush Frame Gasket
Mounting hardware and drilling template
Specification guide
Optical
Lumens 1520
Color temperature 6000K
Beam spread Combo/Driving 80°x30°
Power 14W
Operating voltage 9-30V
Grade Performance
Intensity 9 100 cd
LED emitter Luxeon Z ES
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Allows for flush installation on bumpers and truck beds

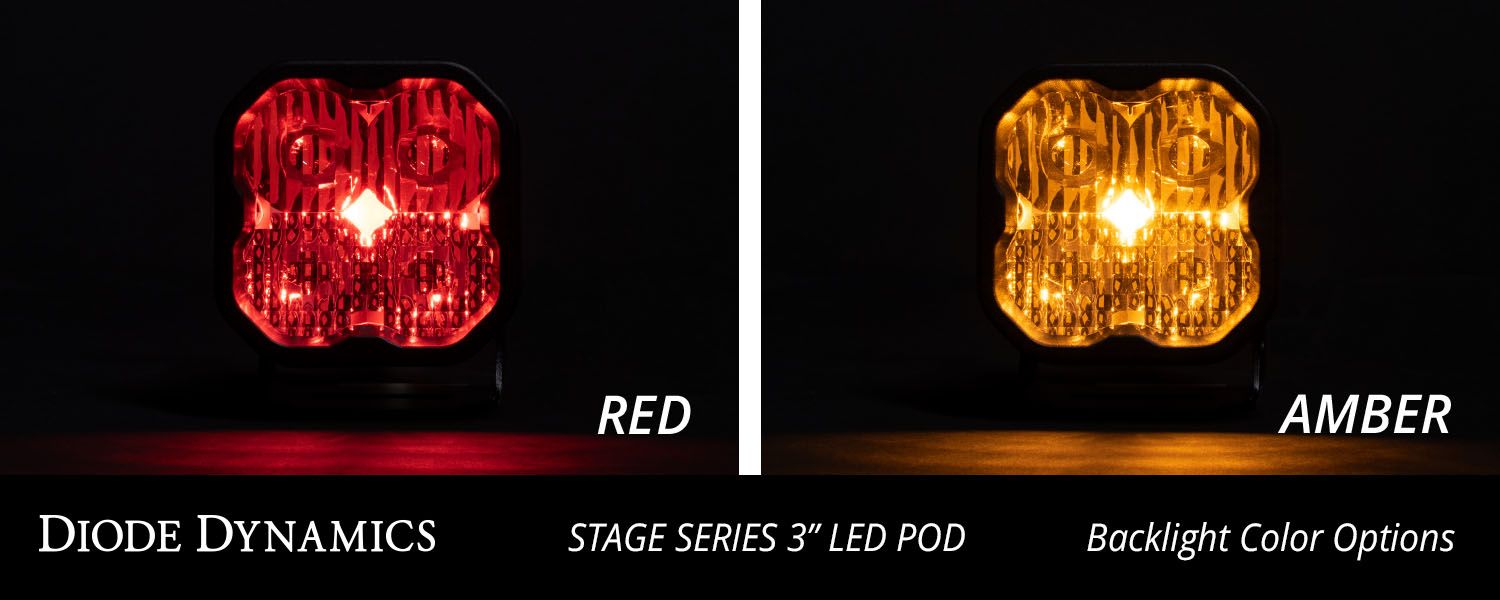

Backlight accent feature, available in amber or red
Advanced TIR optics provide high efficiency and focus

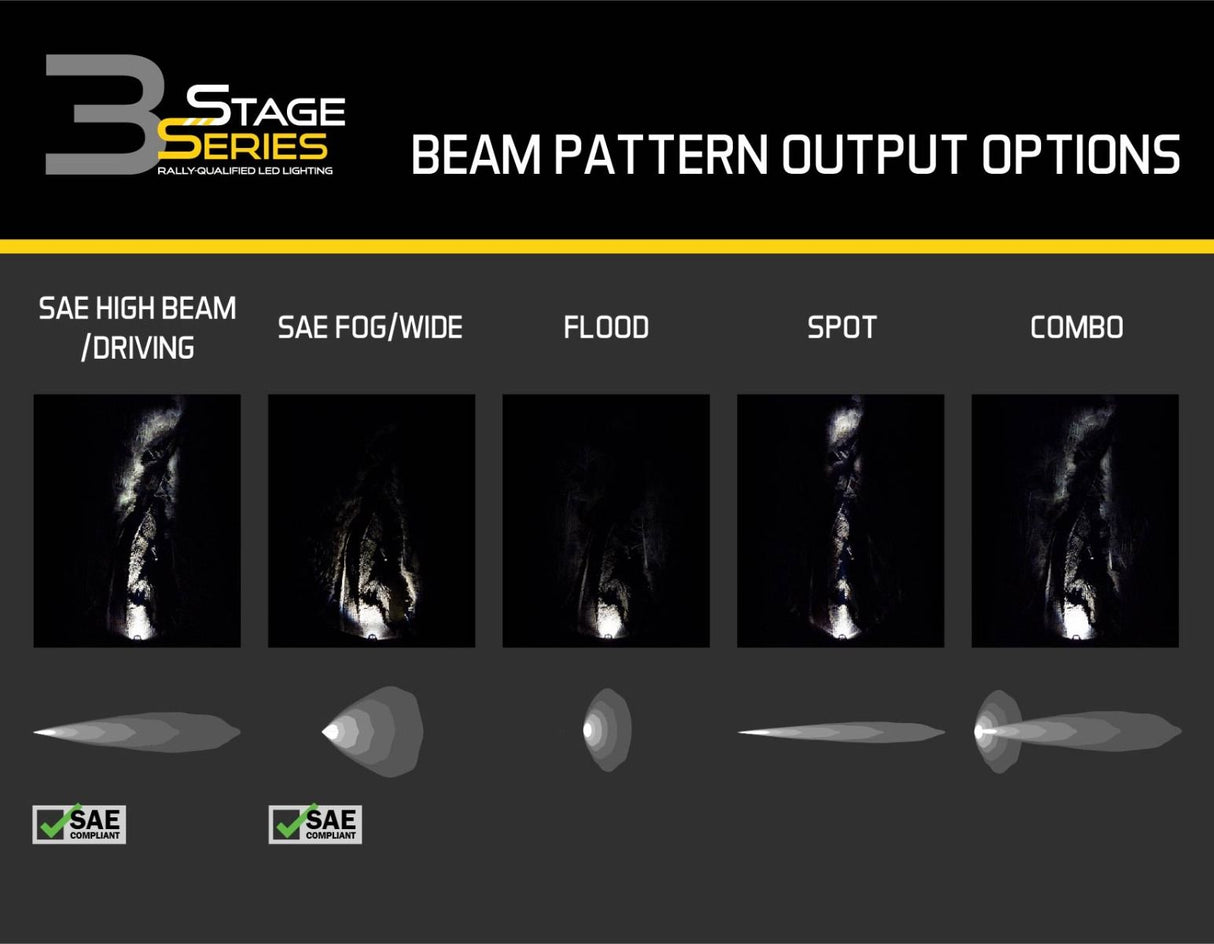

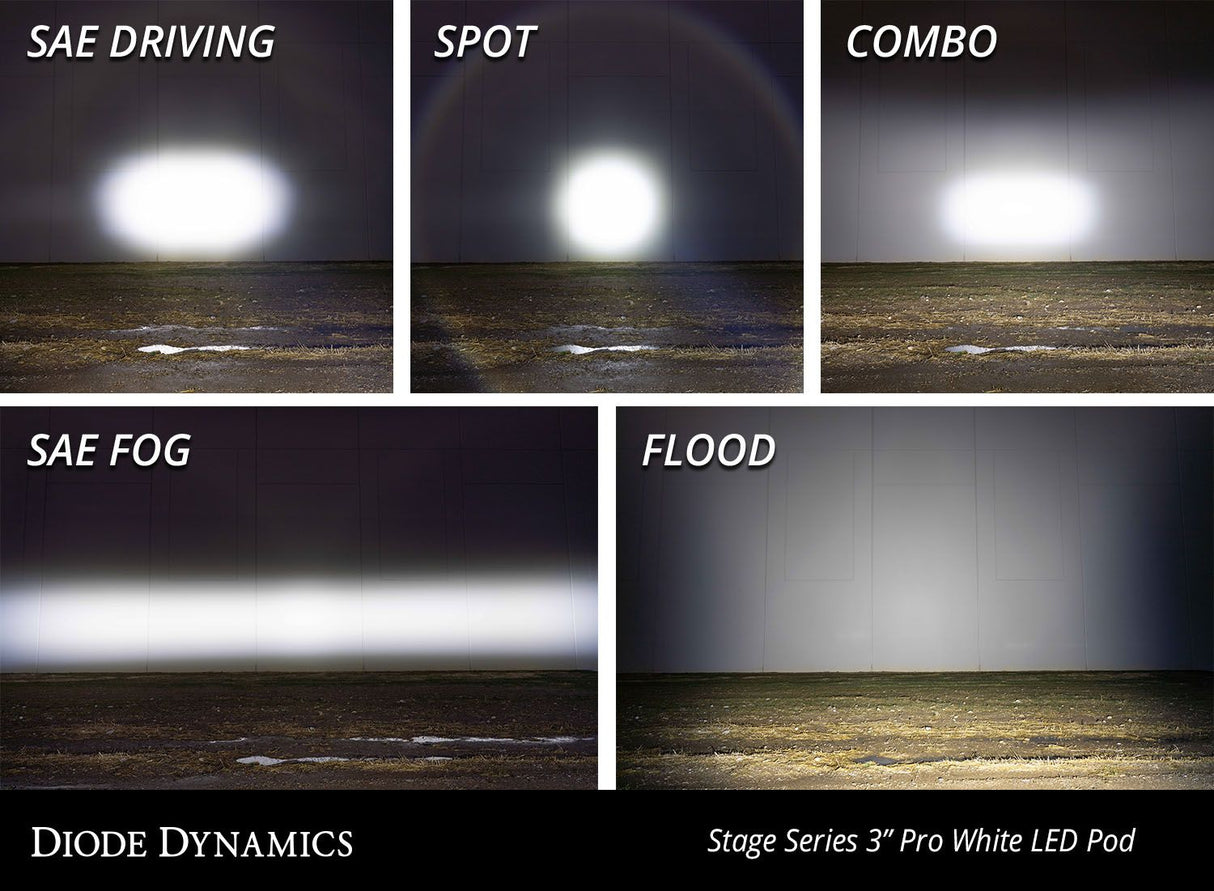

Available in SAE Driving, SAE Fog, Combo/Driving, or Flood, beam patterns
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Made in USA with global materials.
Description

The Diode Dynamics SS3 Sport Flush Mount LED Pod is a compact, high-output lighting solution designed for drivers who need a versatile, purpose-built light for off-road trails, work sites, or everyday visibility upgrades. Built around custom-engineered TIR optics, the SS3 Sport delivers focused, efficient output in a flush-mount form factor that installs cleanly on bumpers, A-pillars, roll bars, or anywhere you need targeted illumination.

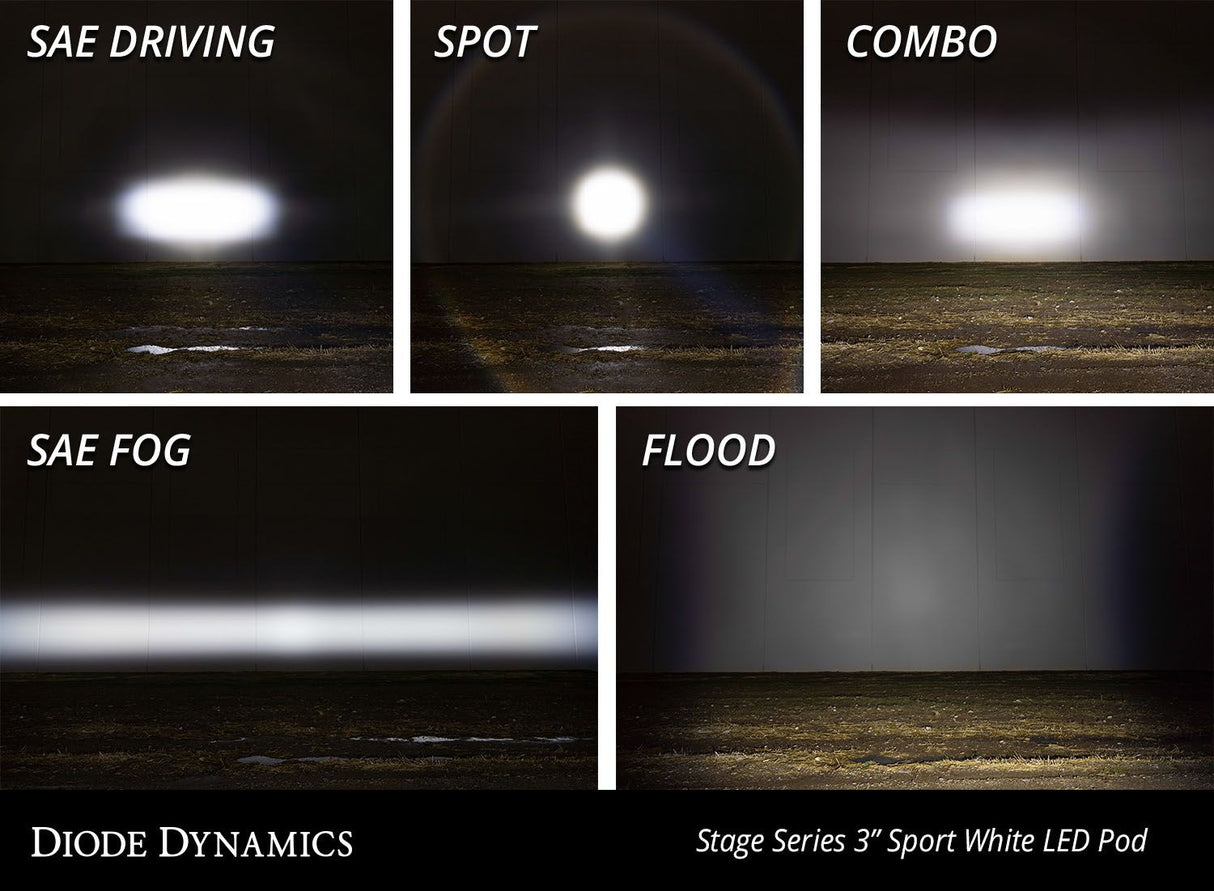

The real strength of this pod is its range of available beam and color options. Choose SAE Driving for long-range road use, SAE Fog for low-lying weather conditions, Flood for wide area coverage, or Combo for a balance of both reach and spread — all in white. If your build calls for something different, Amber and Red variants are also available, useful for hunting, emergency signaling, or light-sensitive environments.

The pin-fin heatsink design keeps thermals in check during extended use, and the integrated Deutsch-style connector makes wiring clean and secure. Whether you're running one as a ditch light or pairing two as a dedicated forward lighting setup, the SS3 Sport is a straightforward, well-built choice for truck, Jeep, and UTV owners who want reliable output without unnecessary bulk.

Documentation
