C2R White Flood Standard LED Pod (one)

Diode Dynamics  |  SKU: DD8450S  |  Barcode: 00195995144171
Regular price $ 264.00 CAD
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

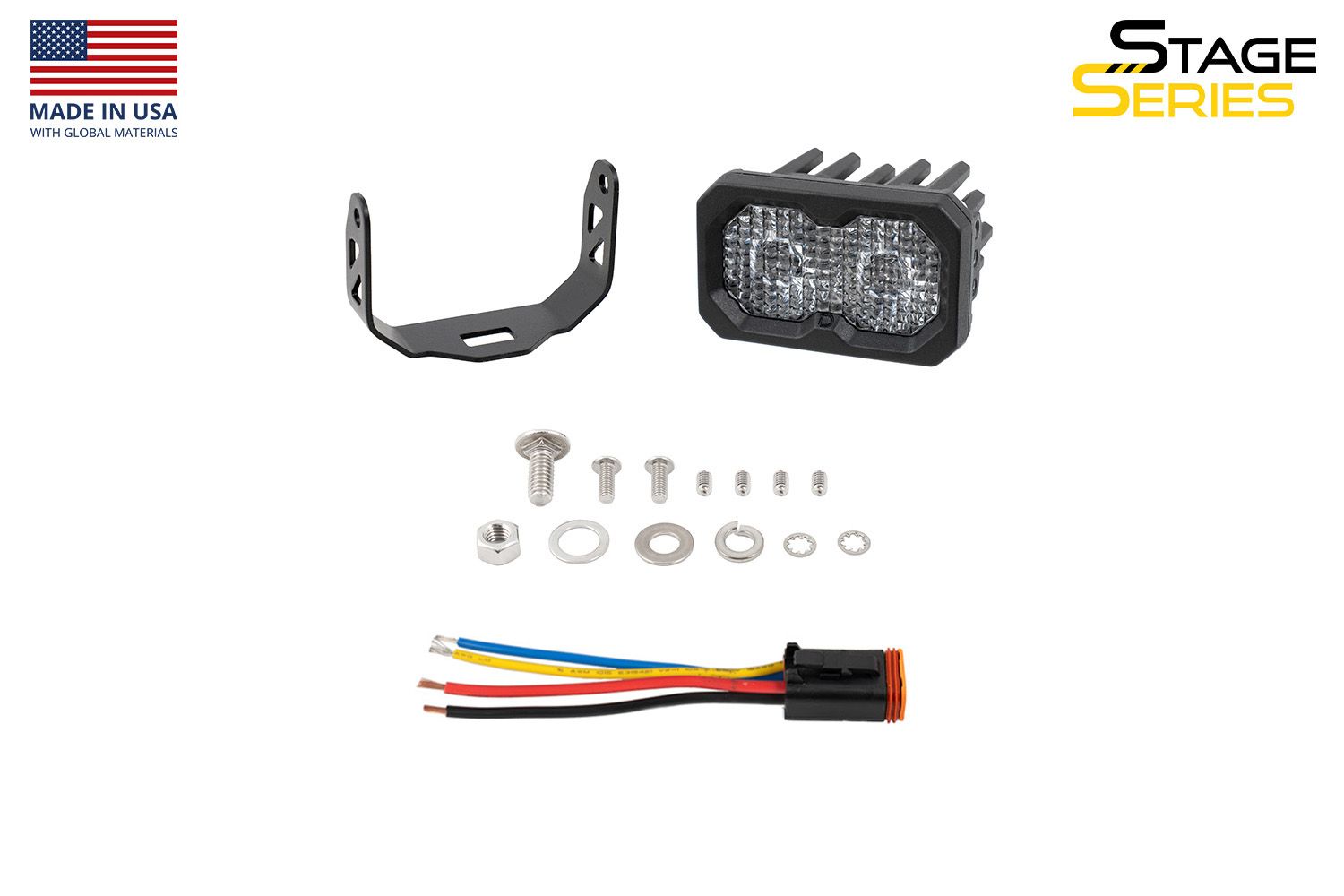

What's in the box 3 ITEMS
Two (2) Stage Series C2R LED Pods
Two (2) Deutsch-style wire pigtails
Two (2) Mounting brackets and hardware
Optical
Color temperature 6000K
Beam spread Flood 70°x45°
Power 18W
Operating voltage 9-30V
Grade Performance
Intensity Reverse: 1800 cd Brake: 250 cd Parking: 12 cd
LED emitter Cree XP-L HI, Osram 1414 Pure
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Ultra-compact design for tight mounting spots
Triple function
high-power white main beam, high-power red main beam, and low-power red accent light
Patented TIR optics for maximum output
Pin-fin heatsink design, for superior thermal dissipation
Limited Lifetime Warranty
Made in USA with Global Materials
Description

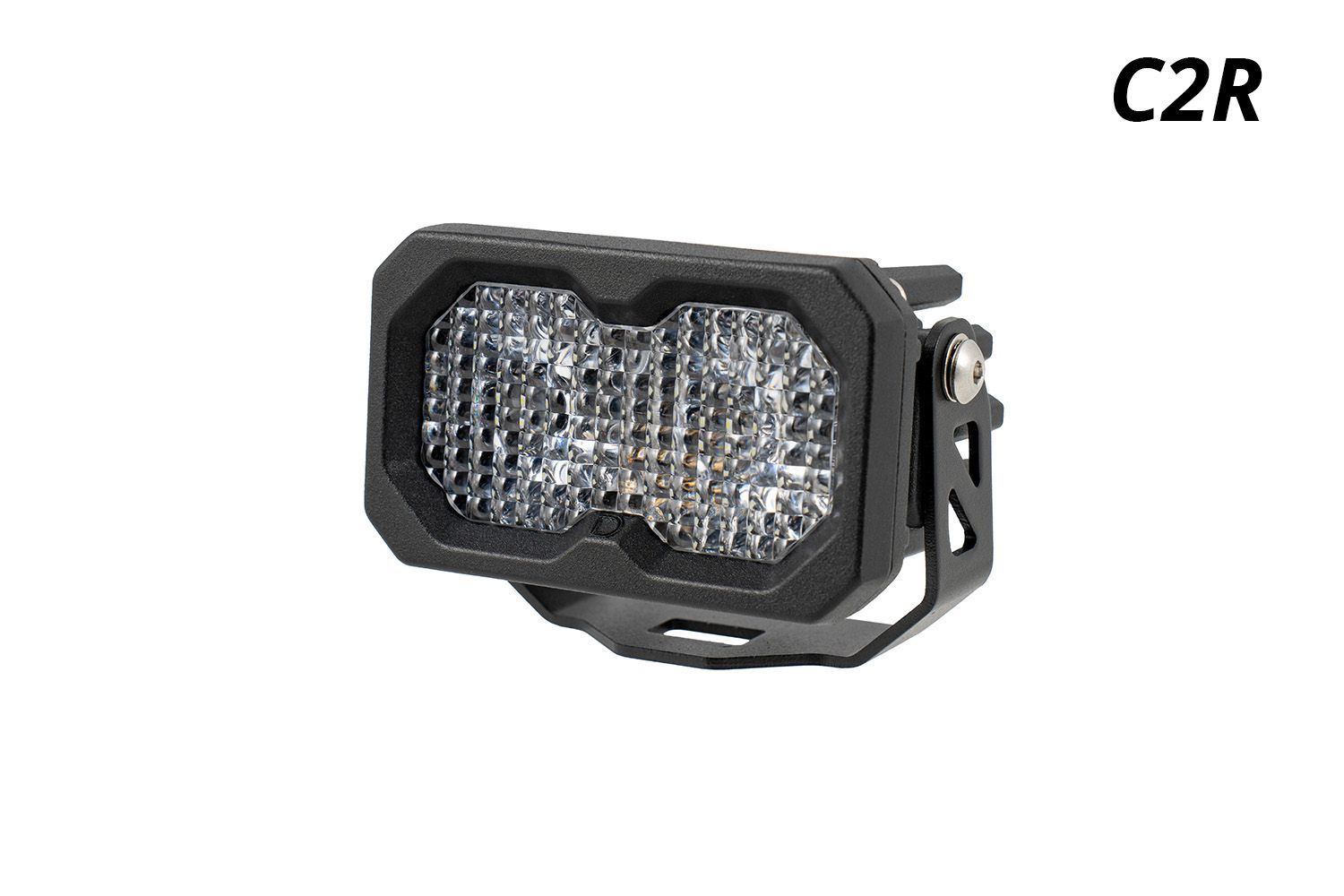

The Diode Dynamics C2R White Flood Standard LED Pod is a compact single-unit LED light designed to throw broad, even illumination across worksites, campsites, or tight off-road terrain where wide coverage matters more than long-range throw. Its flood beam pattern pushes light wide and low, making it a natural fit for area lighting, reverse lighting, or side-mount ditch lights on trucks, Jeeps, and UTVs.

The C2R uses custom-engineered TIR optics paired with high-output LED chips to deliver clean, consistent white light with minimal hotspots. A pin-fin heatsink keeps thermals in check during extended use, so output stays steady whether you're running it through a long night shift or a weekend trail run.

Because it's sold as a single pod, you can mount one exactly where your build needs it — or pair two for a symmetrical setup. If you need versatile, wide-angle white light in a tough and tidy package, the C2R Flood is a straightforward choice.

Documentation
$ 264.00 CAD● In stock
