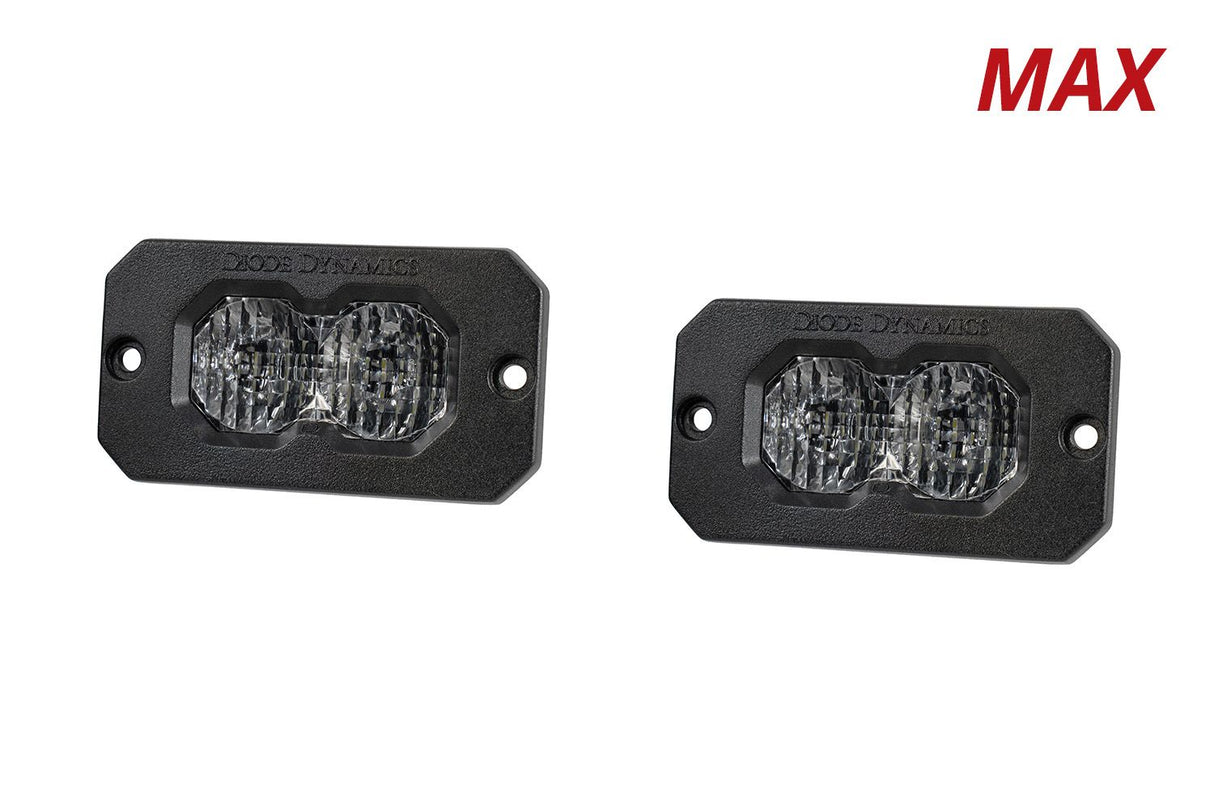

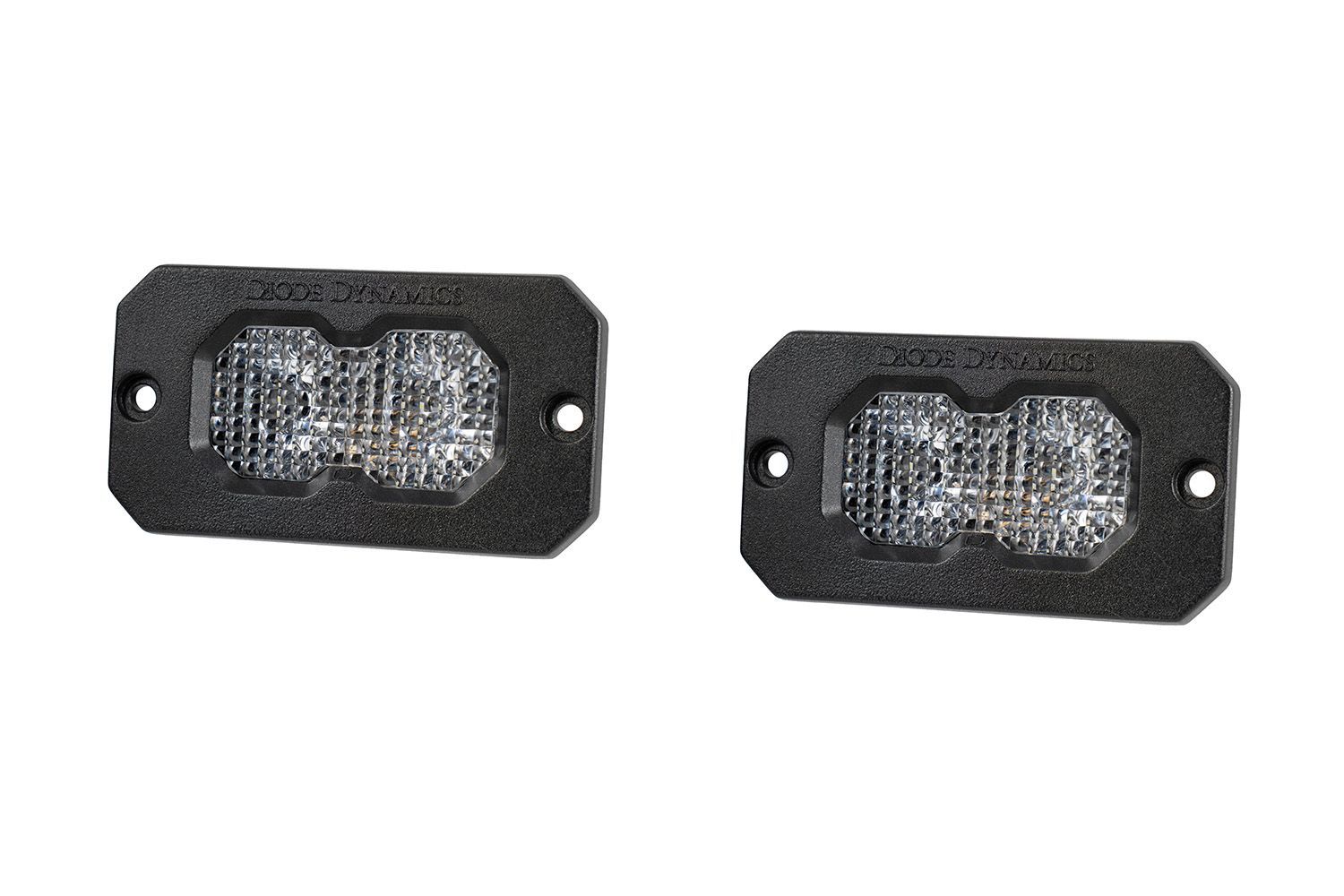

C2 2.0 White Max Flush Mount LED Pod (pair)

Diode Dynamics  |  SKU: DD8130P  |  Barcode: 00195995143204
Regular price $ 667.00 CAD
Choose Your Beam Pattern
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

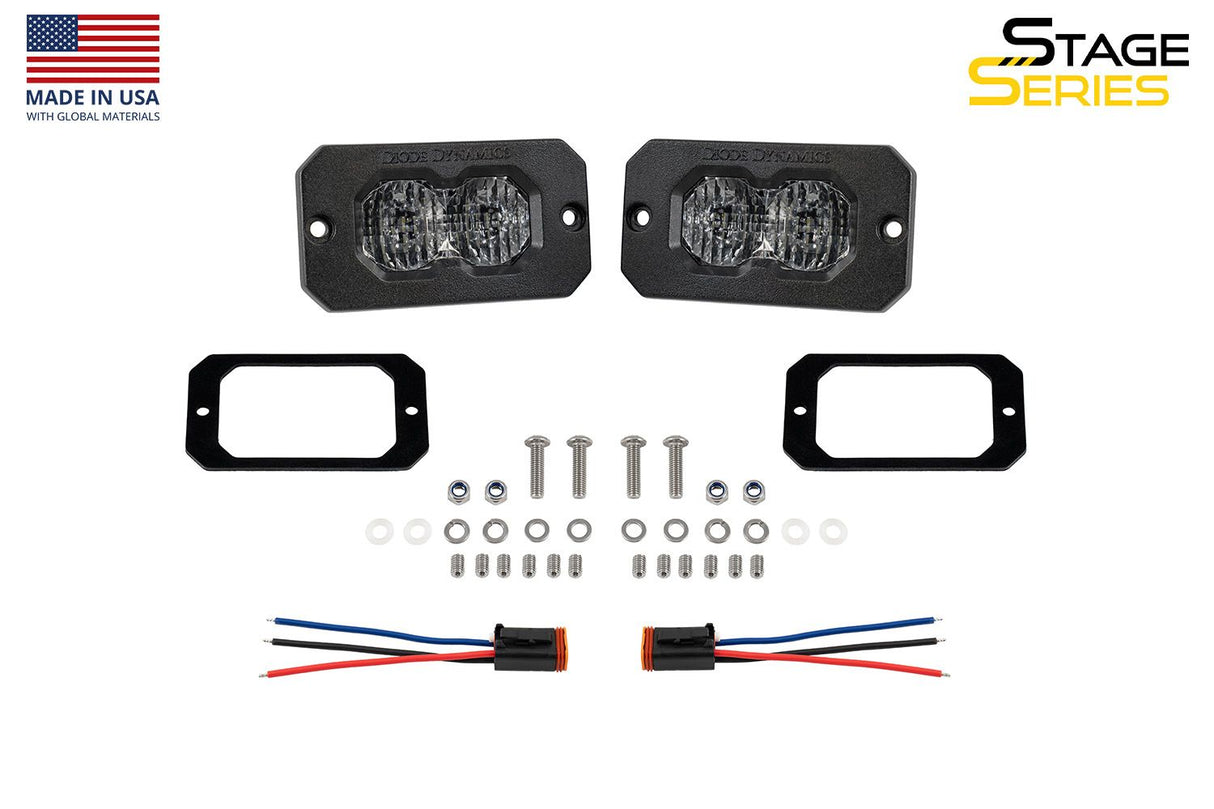

What's in the box 3 ITEMS
Two (2) Stage Series C2 2.0 LED Pods
Two (2) Deutsch-style wire pigtails
Two (2) Mounting brackets and hardware
Optical
Color temperature 6000K
Beam spread Combo/Driving 55°x20°
Power 30W
Operating voltage 9-30V
Grade Performance
Intensity 23 000 cd
LED emitter Osram Boost HX
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits
Ultra-compact design for tight mounting spots
Patented TIR optics for maximum output
Up to 95% more power than C2 1.0

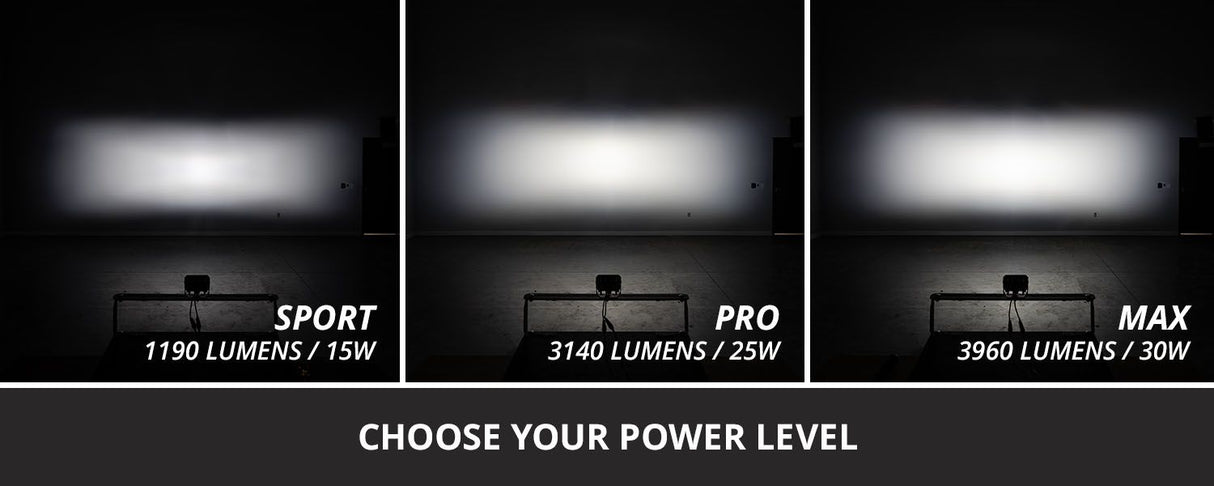

Available in Sport, Pro, and new 3900-lumen Max power levels
Limited Lifetime Warranty
Made in USA with Global Materials
Description

The Diode Dynamics C2 2.0 Max Flush Mount LED Pod pair is a next-generation compact lighting solution built for off-road, work, and auxiliary use wherever you need serious output in a tight package. Updated TIR optics deliver focused, efficient light with significantly more power than the previous generation, and the refreshed housing lets you link multiple pods together for a clean, scalable setup.

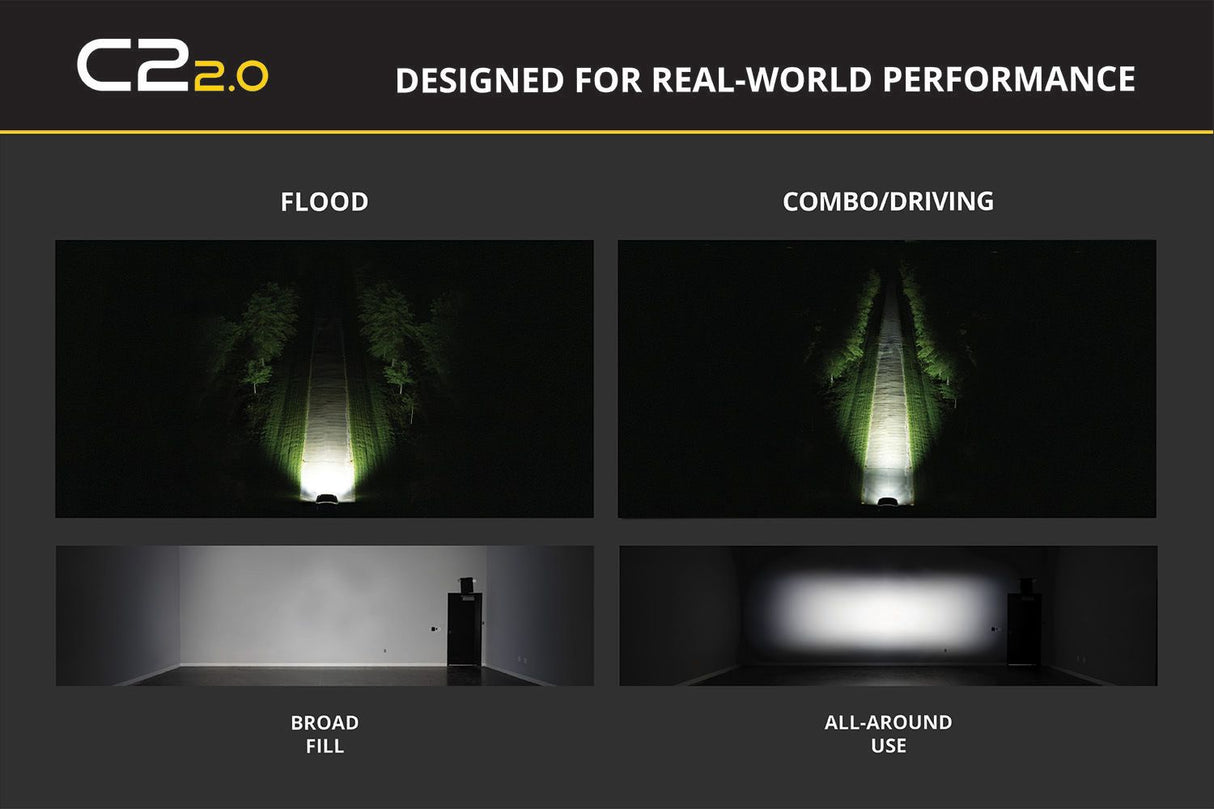

Choose from Combo, Driving, or Flood beam patterns to match exactly how you use your rig — Driving for long-range visibility on trails or back roads, Flood for wide area coverage when you're working around the vehicle, or Combo when you want the best of both reach and spread in a single pod.

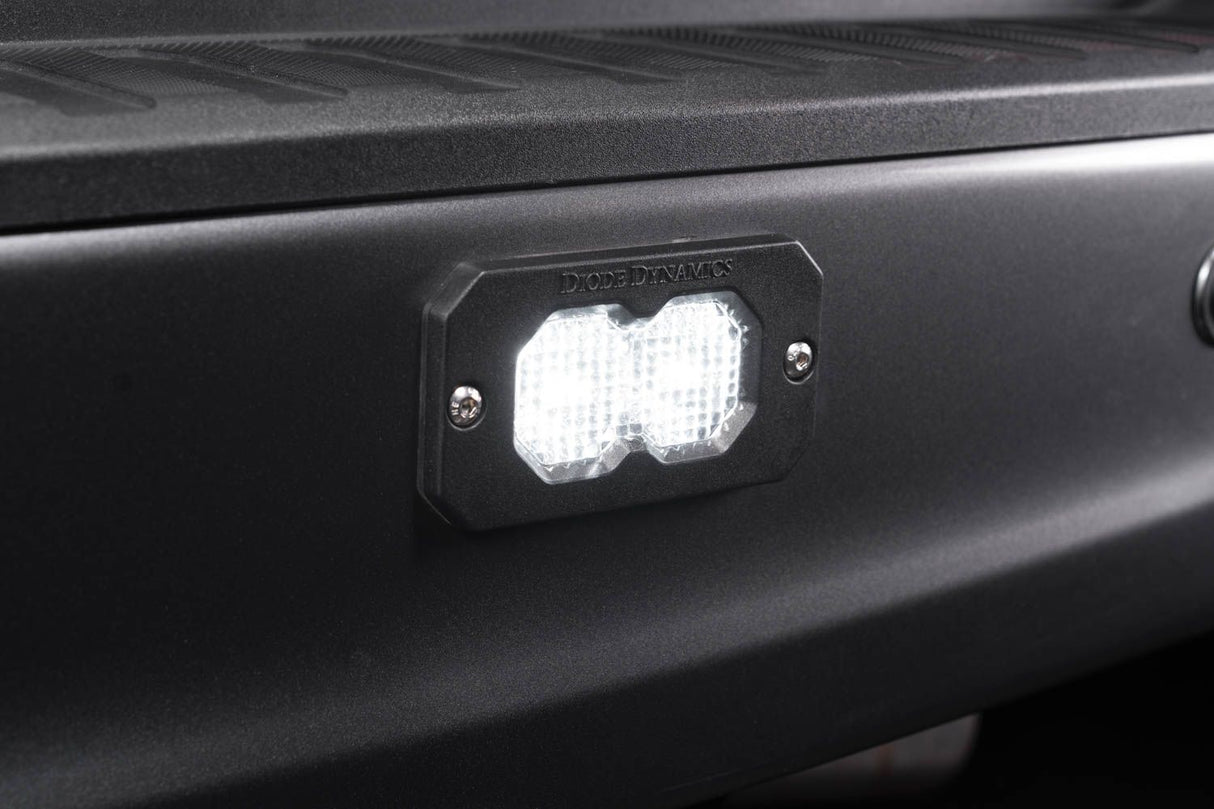

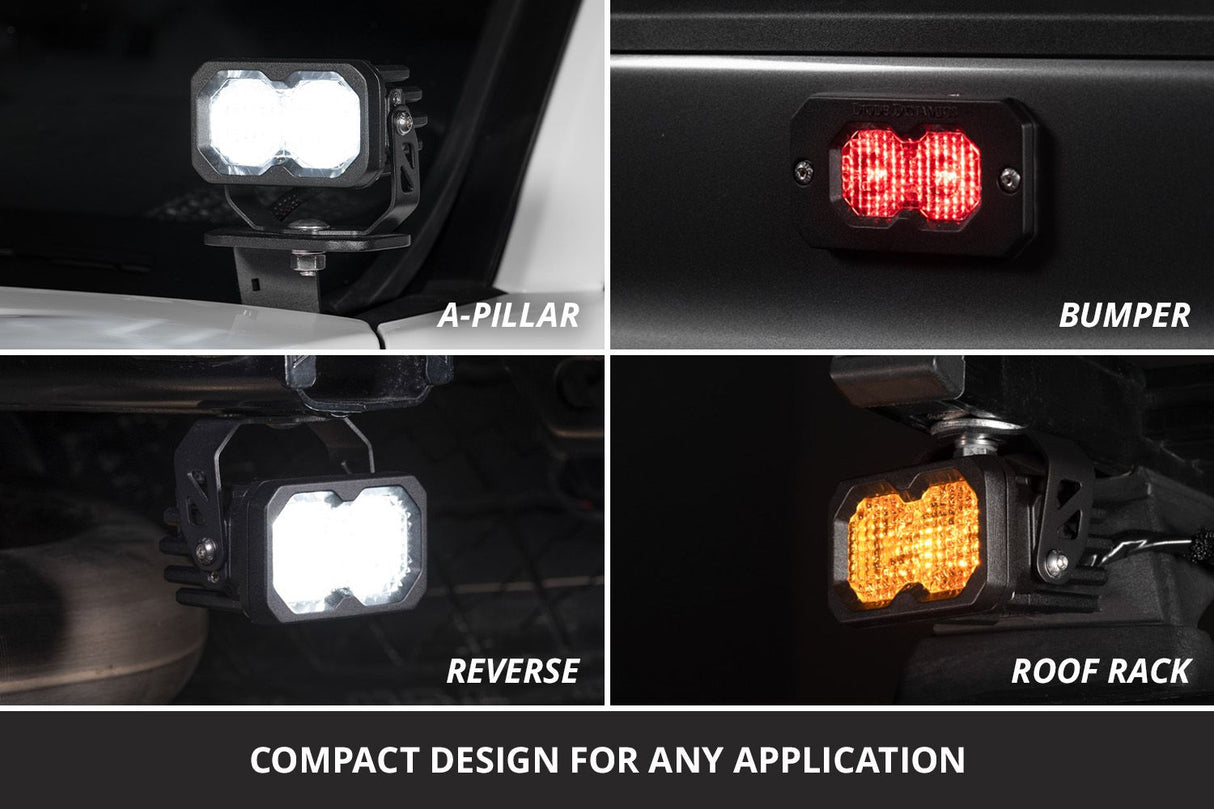

The flush-mount profile keeps your install looking intentional rather than bolted-on, and the ultra-compact footprint makes these pods a natural fit for bumpers, A-pillars, roof bars, or anywhere space is at a premium. If you've been running the original C2, this is a meaningful step up worth making.
