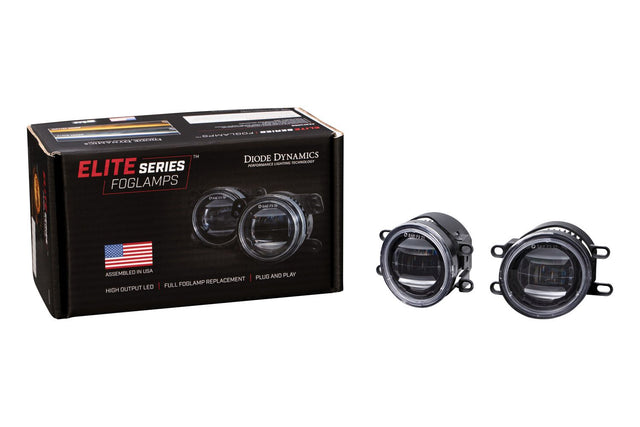

Elite Series Type B Fog Lamps (pair)

Diode Dynamics  |  SKU: DD5134P  |  Barcode: 00195995127297
Regular price $ 361.00 CAD
Choose Your Color
Fitment & Install Notes
Fits
Fits: 2015-2017 Subaru Legacy, 2014-2017 Lexus CT200h, 2013-2018 Lexus ES300h, 2015-2020 Lexus NX300h, 2015-2017 Lexus NX200t, 2016-2016 Lexus IS200t, 2016-2017 Lexus GS200t, 2014-2015 Lexus IS250, 2014-2016 Lexus IS350, 2013-2018 Lexus ES350, 2014-2018 Lexus GS450h, 2010-2021 Lexus RX350, 2013-2020 Lexus GS350, 2008-2011 Lexus LX570, 2013-2015 Lexus LX570, 2008-2014 Lexus IS F, 2015-2015 Lexus RX450h, 2010-2012 Lexus HS250h, 2014-2024 Toyota 4Runner, 2008-2010 Toyota Highlander, 2014-2023 Toyota Highlander, 2007-2011 Toyota Avalon, 2007-2015 Toyota Camry, 2009-2016 Toyota Corolla, 2009-2013 Toyota Matrix, 2010-2011 Toyota Prius, 2015-2016 Toyota Prius, 2007-2008 Toyota Solara, 2006-2012 Toyota RAV4, 2016-2024 Toyota RAV4, 2014-2021 Toyota Tundra, 2012-2023 Toyota Tacoma, 2012-2016 Toyota Prius V, 2012-2016 Toyota Prius C, 2009-2014 Toyota Venza, 2006-2014 Toyota Yaris
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy
What's in the box 4 ITEMS

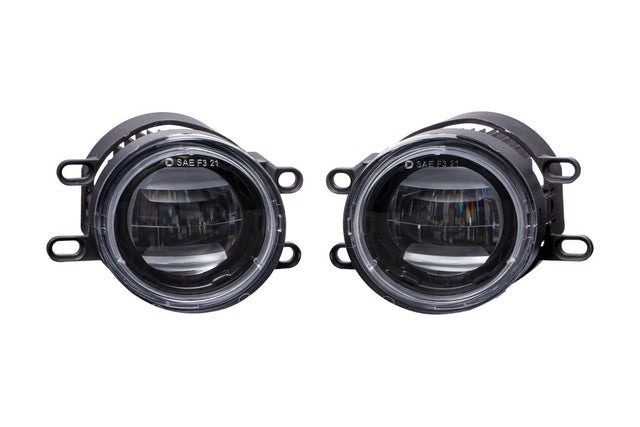

Two (2) Elite Series Type B fog lamps
Two (2) H11 4-pin DT backlight tap wires
Two (2) T-taps
Mounting guide
Optical
Lumens 1850
Color temperature 6000K
Beam spread Fog 80°x6°
Power 17W
Operating voltage 9-16V
Intensity 10 200 cd
LED emitter Multi-Die Automotive Emitters
Driver features Constant Current
Construction
Connector Deutsch DT Input

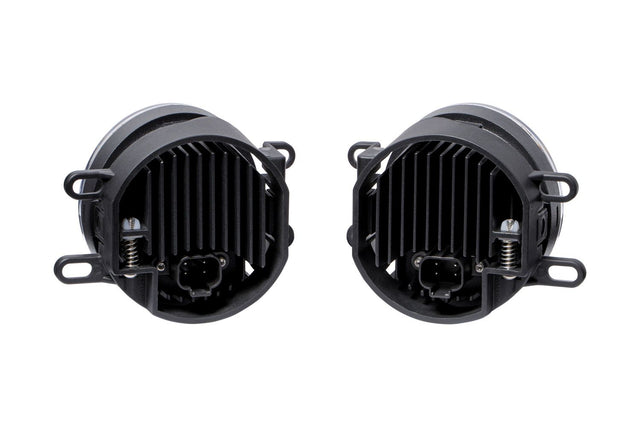

Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Terminal type Pin
Housing shape Angled
Base color Black
Install
Harness included Yes
Mounting hardware Included
Compliance
IP rating IP68 Waterproof
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Country of origin USA
Street legal Yes
SAE/DOT Compliant pattern available
Features & benefits
High-performance OEM-grade replacement

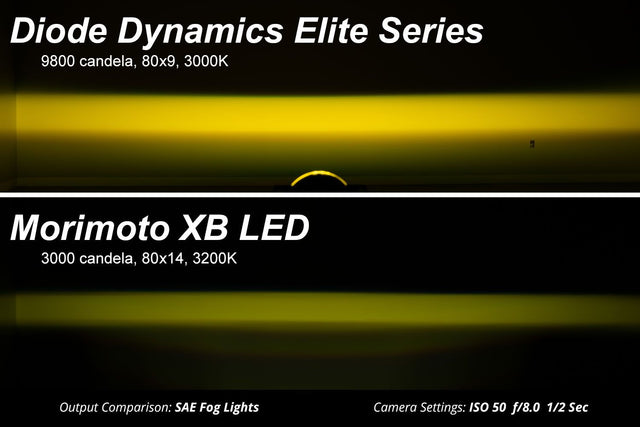

Custom-engineered optic provides extremely wide, intense light output

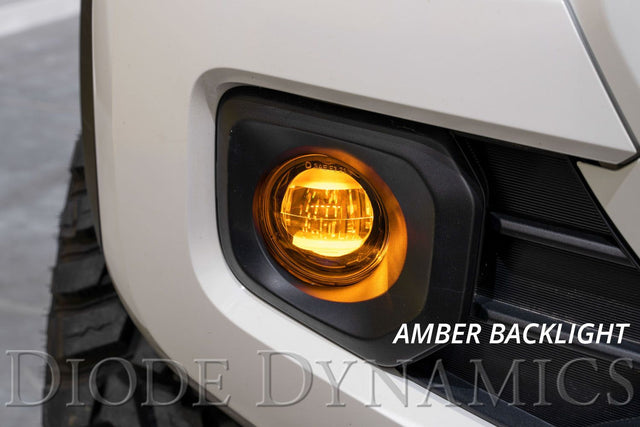

Distinctive integrated amber backlight
Road-legal fog light (SAE F3 compliant)
Plug and play main beam, no modification needed
Engineered and assembled in USA
Description

The Diode Dynamics Elite Series Type B Fog Lamps are a direct-fit LED fog light upgrade engineered for Toyota and Lexus owners who want meaningful low-speed, low-visibility performance from their factory fog light positions. These assemblies replace your worn or dim stock units with a purpose-built LED solution that delivers a wide, intense spread of light exactly where fog lights are meant to work — close to the road surface, cutting through rain, snow, and fog without glaring into oncoming traffic.

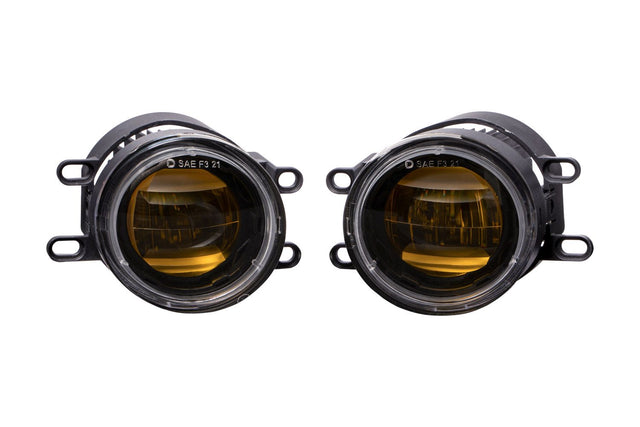

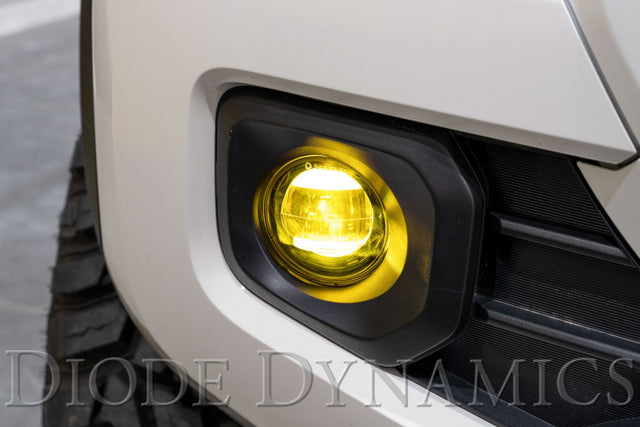

Choose between Cool White and Yellow to match your conditions or preference. Cool White produces a crisp, high-contrast beam ideal for clear nights and mixed weather, while Yellow reduces scatter in heavy fog, rain, and snow for improved road definition when it matters most.

Installation is straightforward thanks to a plug-and-play design with a vehicle-specific bracket, requiring no modification to your factory wiring. The result is an OEM-grade fit with noticeably stronger output and a distinctive appearance that looks at home on your vehicle from day one.
