SSC1 SAE Type BM Fog Light Kit

Diode Dynamics  |  SKU: DD8289  |  Barcode: 00195995142276
Regular price $ 445.00 CAD
Choose Your Optic and Color
Fitment & Install Notes
Fits
Fits: 2022-2025 Lexus NX350h, 2023-2025 Lexus RX500h, 2024-2024 Lexus TX500h, 2019-2024 Toyota Corolla, 2024-2024 Toyota Land Cruiser, 2019-2022 Toyota Prius, 2022-2024 Toyota RAV4, 2021-2024 Toyota Venza, 2020-2022 Toyota C-HR, 2022-2024 Toyota Corolla Cross, 2023-2024 Toyota GR Corolla
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

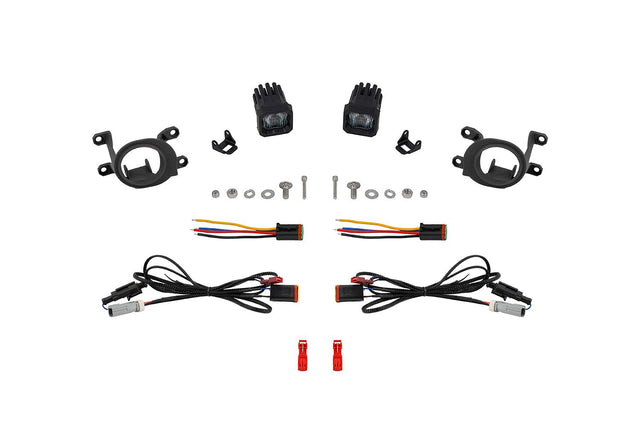

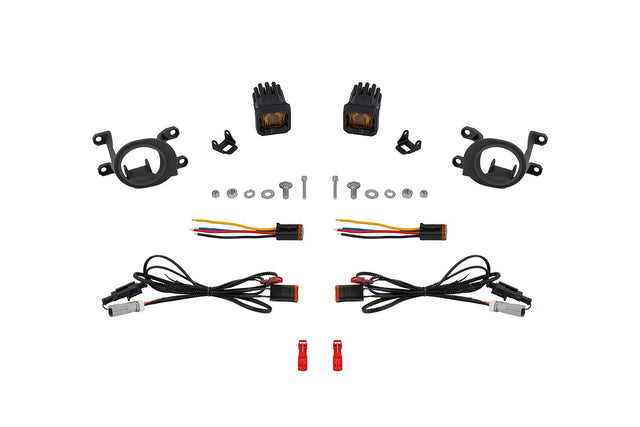

What's in the box 5 ITEMS
Two (2) SSC1 LED pods
Two (2) Foxbeam Type BM brackets
Two (2) 4-Pin DT to DJ70 Adapters
Two (2) T-Tap Connectors
Mounting hardware
Optical
Lumens 430
Color temperature 6000K

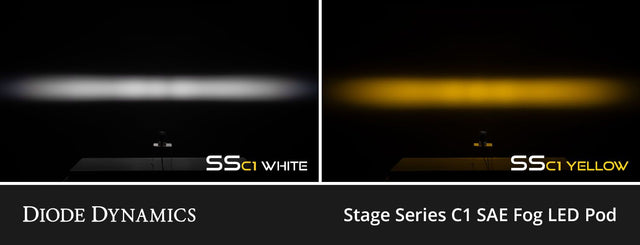

Beam spread Fog 98°x9°
Power 19W
Operating voltage 9-16V
Grade Performance
Intensity 6 000 cd
LED emitter Osram Boost HX
Driver features Constant Current
Construction
Housing material Aluminum
Lens material Polycarbonate
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Terminal type Pin
Base color Black
Bracket color Black
Install
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Country of origin USA
Street legal Yes
SAE/DOT Compliant pattern available
Features & benefits
Advanced TIR optics provide high efficiency and focus
SAE-compliant road-legal output
Includes one-piece 3D-printed bezel, for factory-style appearance
Plug and play, no modification needed
Engineered and Assembled in USA
Description

The Diode Dynamics SSC1 SAE Type BM Fog Light Kit is a direct-fit LED fog light upgrade engineered for select Toyota and Lexus vehicles, delivering road-legal output that outperforms factory halogen fog lights. Whether you're navigating rain, mist, or low-visibility conditions, the SSC1's TIR optics produce a focused, SAE-compliant fog beam that cuts through without the scatter that causes glare for oncoming drivers.

Available in White SAE Fog or Yellow SAE Fog, this kit lets you choose the light color that best suits your conditions and preferences — white for crisp, modern output in most weather, or yellow for improved contrast and reduced eye fatigue in heavy fog and precipitation.

Installation is straightforward thanks to a vehicle-specific molded bracket that bolts directly into your existing fog light location with no cutting, drilling, or modification required. The result is a clean, factory-style appearance with noticeably stronger illumination — a practical upgrade for daily drivers and weekend adventurers alike.

Documentation
