SS5 CrossLink Lightbar Kit for Prinsu/Sherpa Roof Racks

Diode Dynamics  |  SKU: DD7816  |  Barcode: 00195995136138
Regular price $ 2,182.00 CAD
Choose Your Power Level
Choose Your Kit
Choose Your Optic and Color
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy
Optional add-ons 1 AVAILABLE

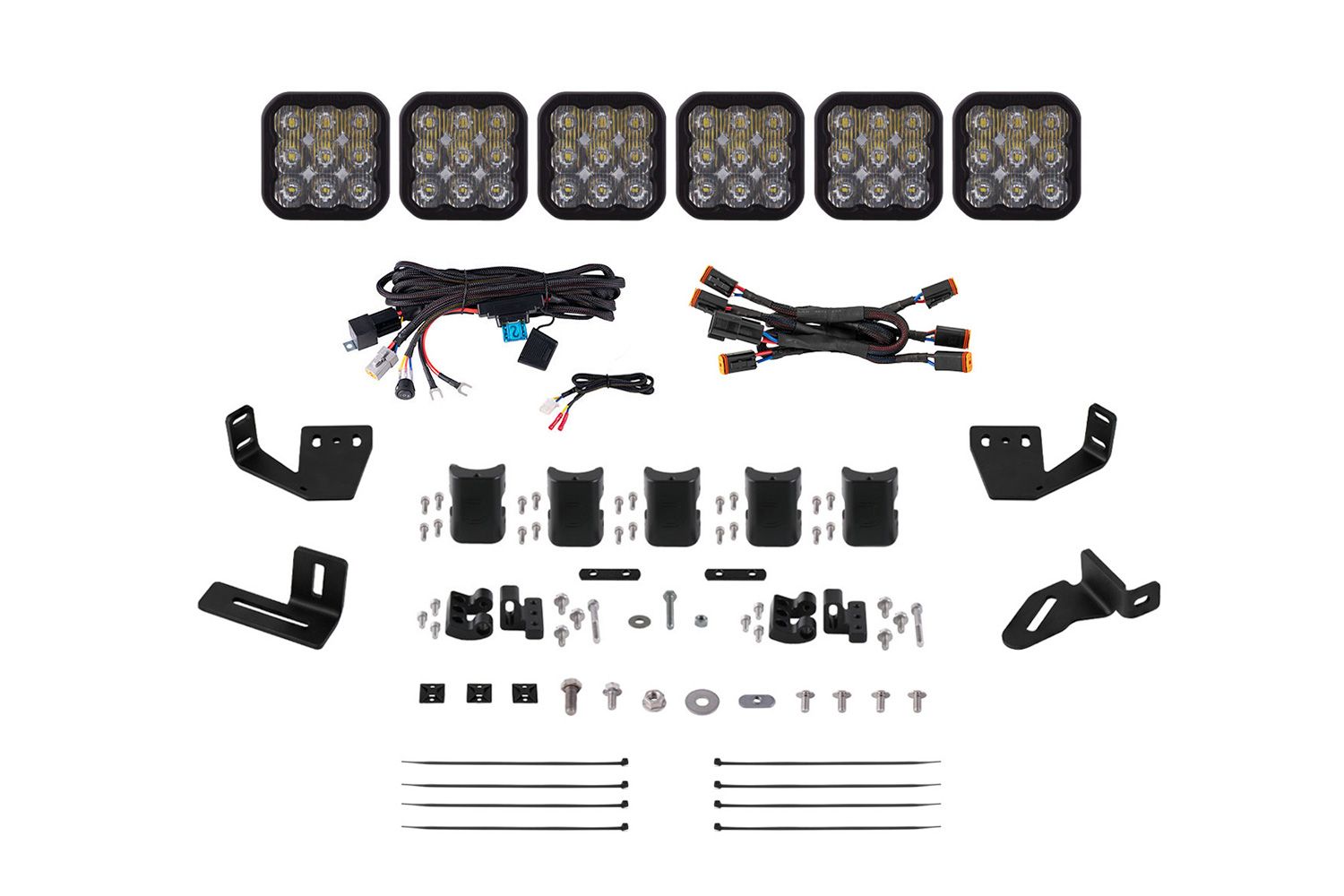

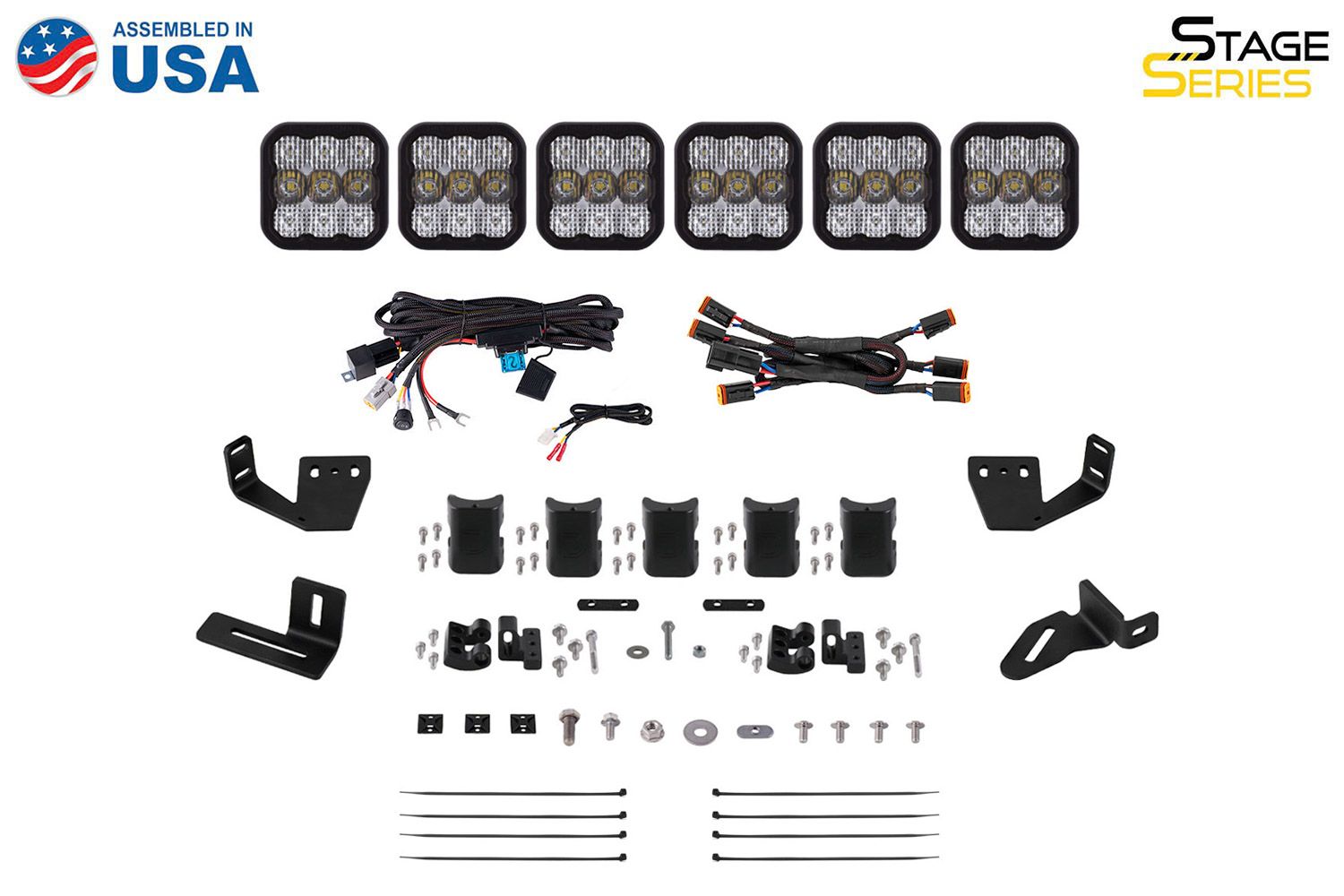

What's in the box 7 ITEMS
Six (6) Stage Series 5inch LED pods
One (1) Roof rack mounting kit
One (1) CrossLink support bracket kit
Five (5) CrossLinks with hardware
One (1) CrossLink endmount kit
One (1) CrossLink splitter harness
One (1) Heavy-duty single-output wiring harness
Optical
Lumens 3700
Color temperature 6000K

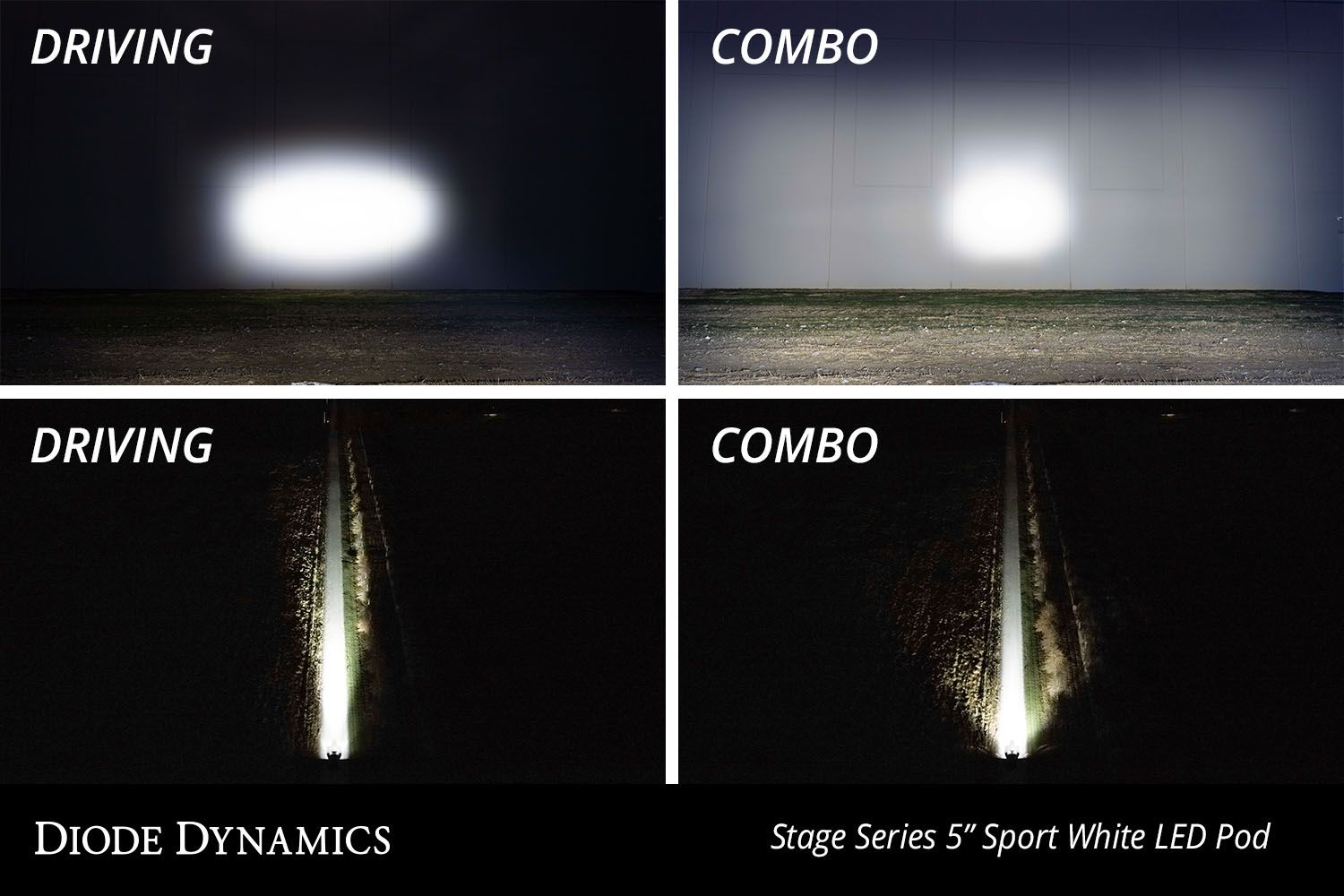

Beam spread Combo (Driving and Flood)
Intensity 81 600 cd
LED emitter Luxeon Z ES, Cree XP-L HI
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Bolt thread Medium
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Features & benefits

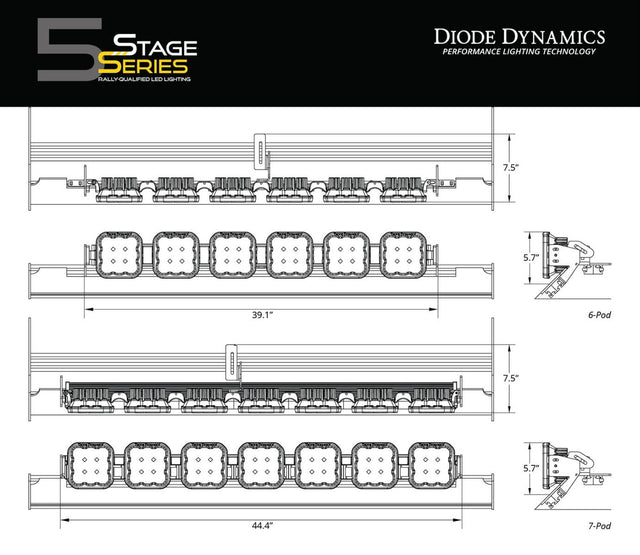

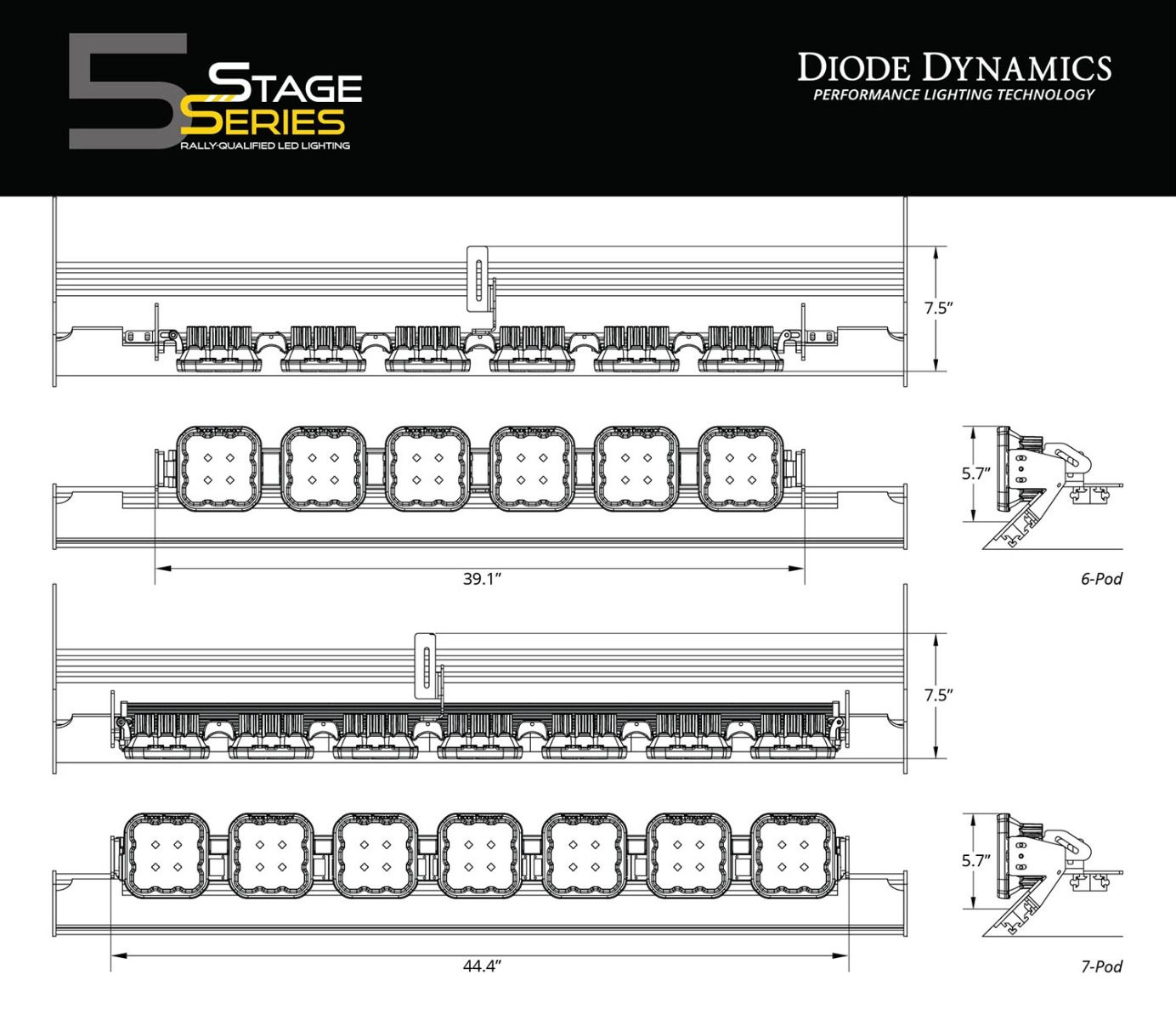

Allows you to mount a 6-pod or 7-pod SS5 CrossLink lightbar to Prinsu and Sherpa roof racks.
Compatible with roof racks that have a 40-inch lightbar cutout.
Included support brackets provide extra stabilization and load distribution.
Does not require removal of wind deflector.
Durable stainless steel construction.
Simple installation, no modification needed.
Description

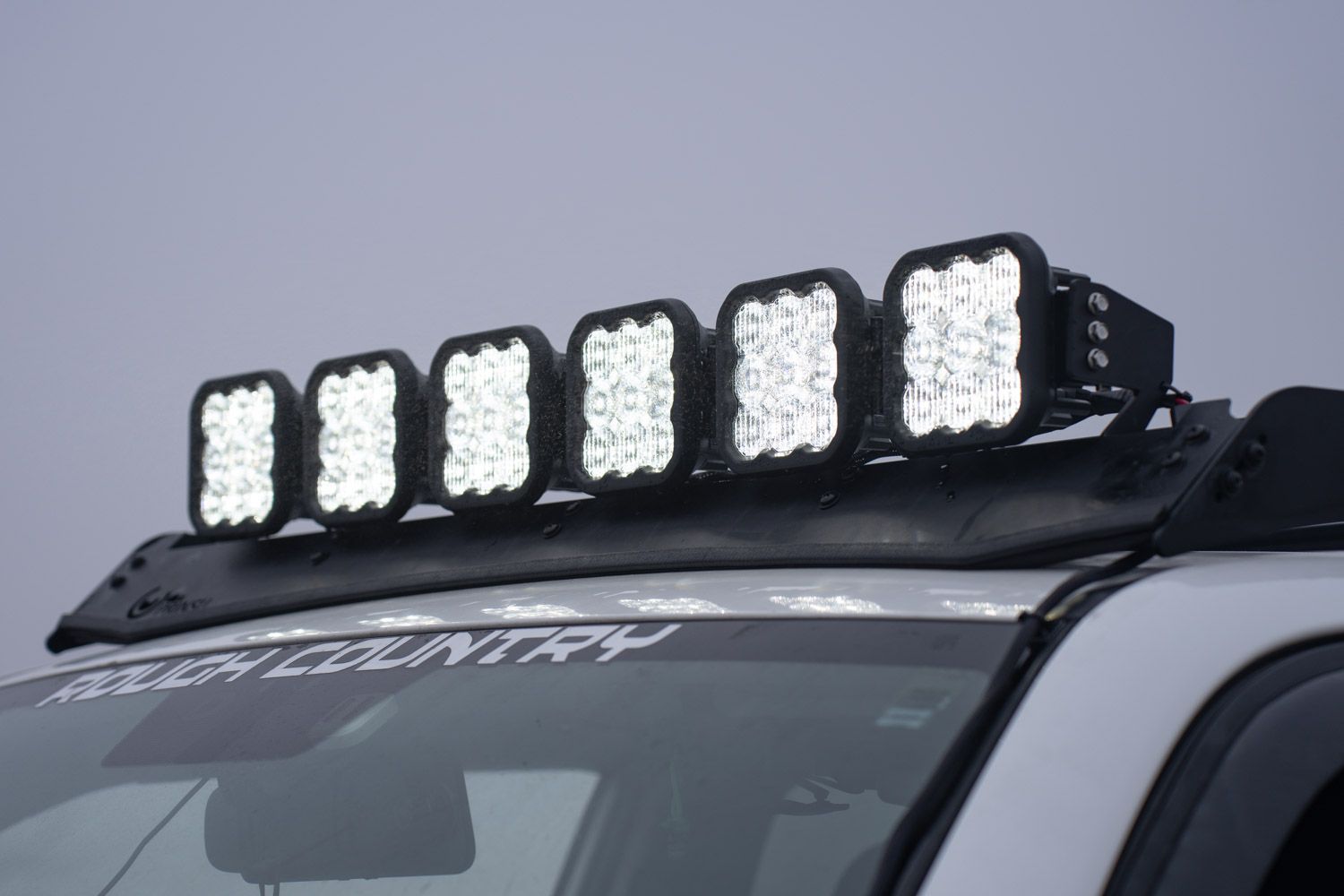

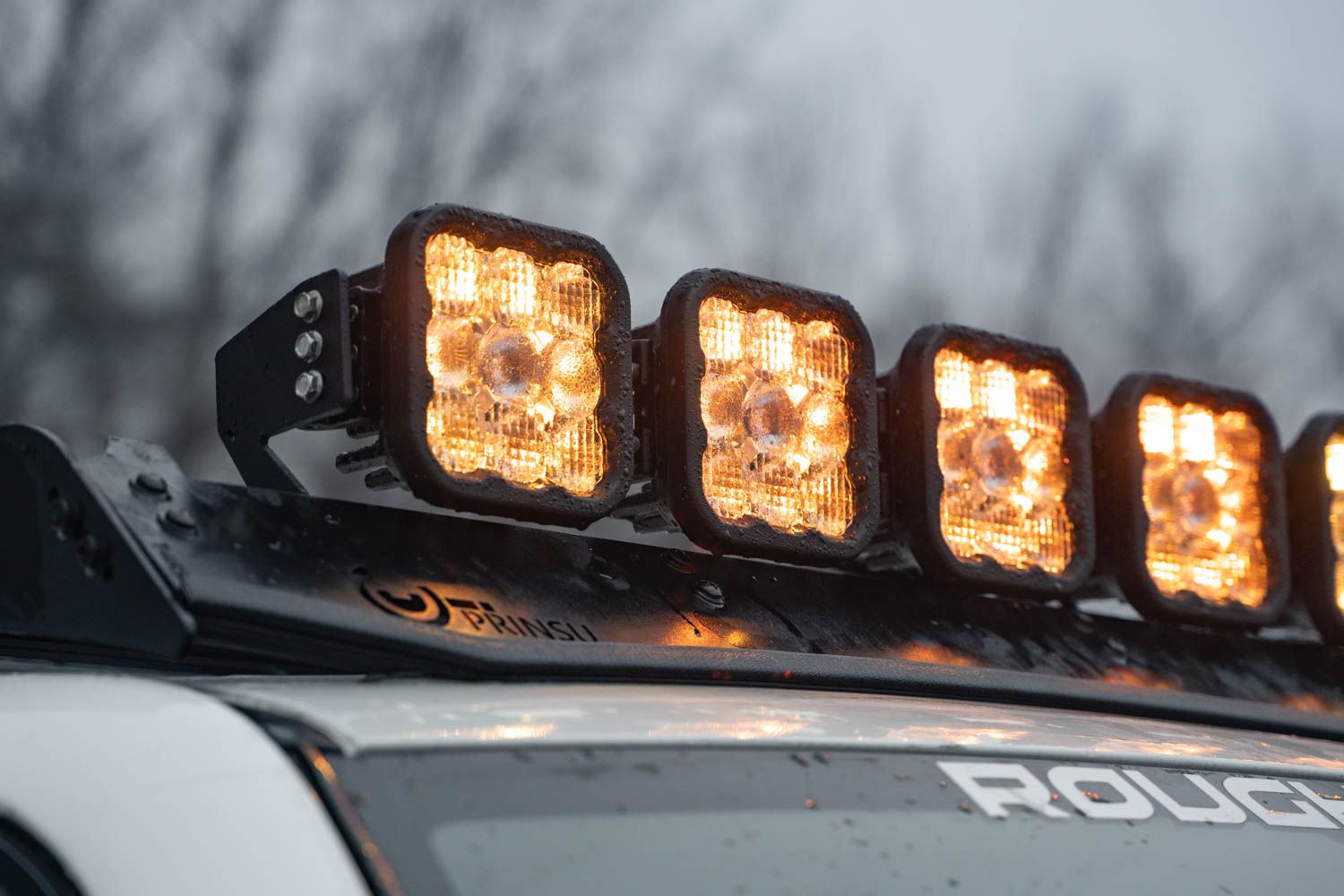

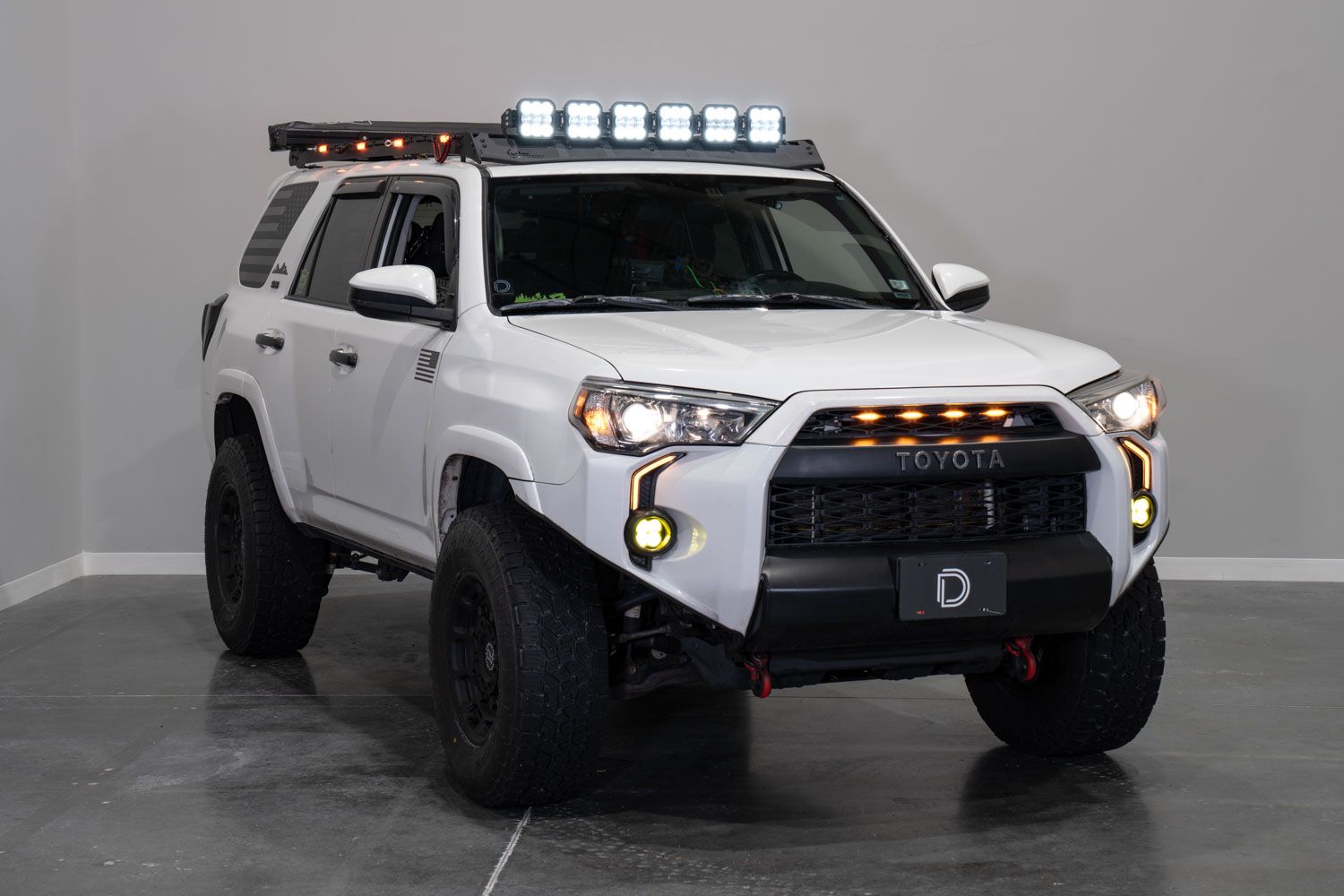

The Diode Dynamics SS5 CrossLink Lightbar Kit is a bolt-on roof-mounted LED light bar solution built specifically for Prinsu and Sherpa roof racks, letting you run serious forward lighting without fabricating custom brackets or disturbing your existing wind deflector. Available in 6-Pod and 7-Pod configurations, this kit gives you the flexibility to match the pod count to your rack layout and your lighting ambitions.

You can spec the kit in Sport or Pro output levels, then choose your beam pattern — White or Yellow in either Combo or Driving — so whether you need a broad sweep for slower off-road trail work or a focused reach for high-speed night driving, there's a configuration that fits how you use your rig. Yellow beam options are especially useful in rain, dust, and fog where cooler white light tends to scatter.

The hardware is designed to integrate cleanly with your Prinsu or Sherpa rack so the install looks intentional, not improvised. If you run a roof rack and want forward lighting that actually belongs there, this kit delivers it without compromise.

Documentation
