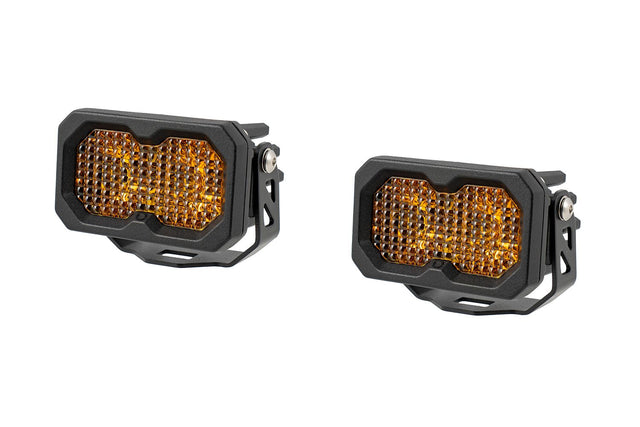

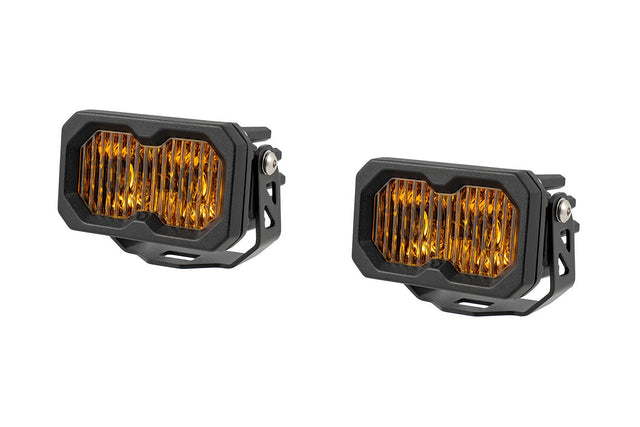

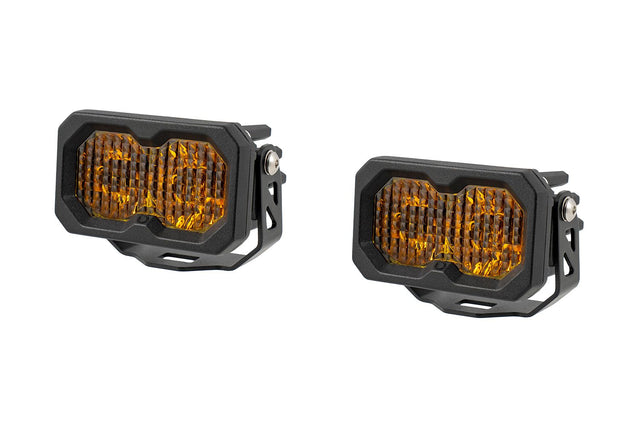

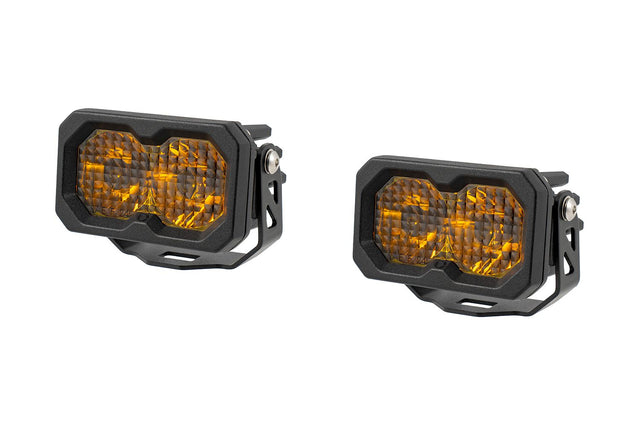

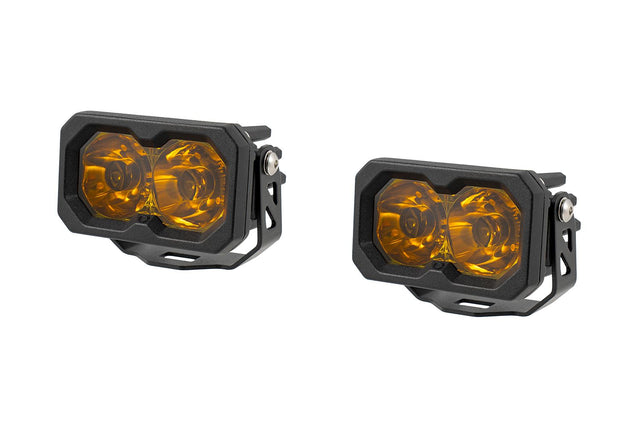

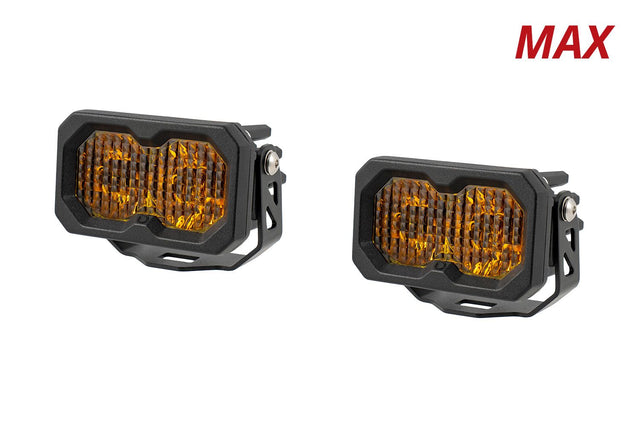

C2 2.0 SAE Yellow Max Standard LED Pod (pair)

Diode Dynamics  |  SKU: DD8114P  |  Barcode: 00195995143211
Regular price $ 667.00 CAD
Choose Your Beam Pattern
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

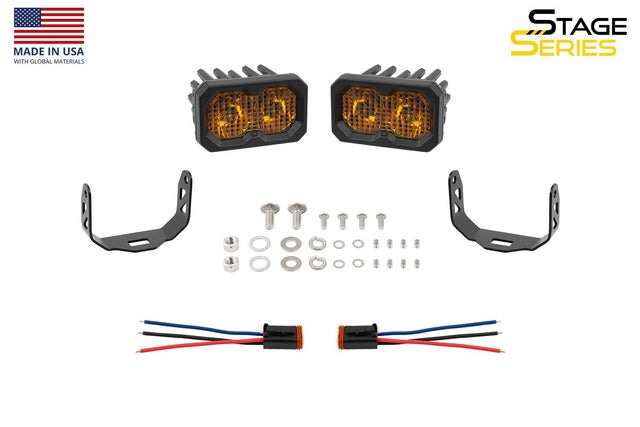

What's in the box 3 ITEMS
Two (2) Stage Series C2 2.0 LED Pods
Two (2) Deutsch-style wire pigtails
Two (2) Mounting brackets and hardware
Optical
Color temperature 3000K
Beam spread Combo/Driving 55°x20°
Power 30W
Operating voltage 9-30V
Grade Performance
Intensity 16 500 cd
LED emitter Osram Boost HX
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA

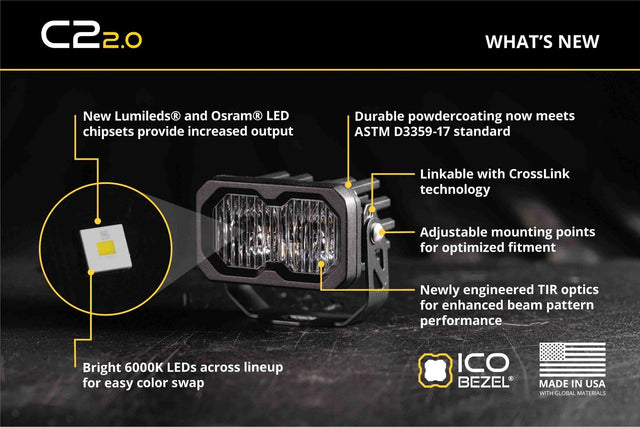

Features & benefits
Ultra-compact design for tight mounting spots
Patented TIR optics for maximum output
Up to 95% more power than C2 1.0

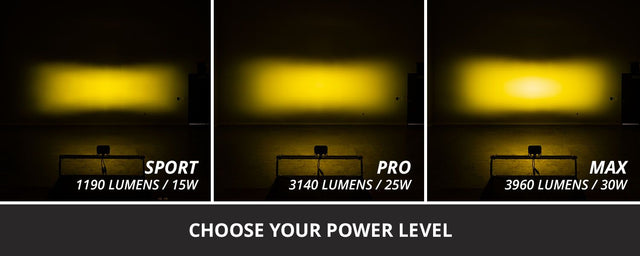

Available in Sport, Pro, and new 3900-lumen Max power levels

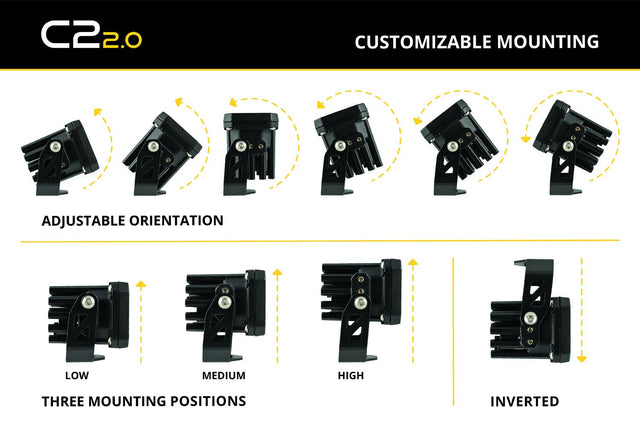

Customizable mounting to dial in your setup
Link multiple pods with CrossLink technology
Limited Lifetime Warranty
Made in USA with Global Materials
Description

The Diode Dynamics C2 2.0 SAE Yellow Max Standard LED Pod pair delivers high-output amber illumination in an ultra-compact form factor, purpose-built for off-road driving, work sites, and adverse weather conditions where a warm-toned beam cuts through dust, fog, and rain more effectively than white light. Yellow light reduces glare scatter, making it a practical choice for trail running, inclement weather driving, and any application where contrast and eye comfort matter.

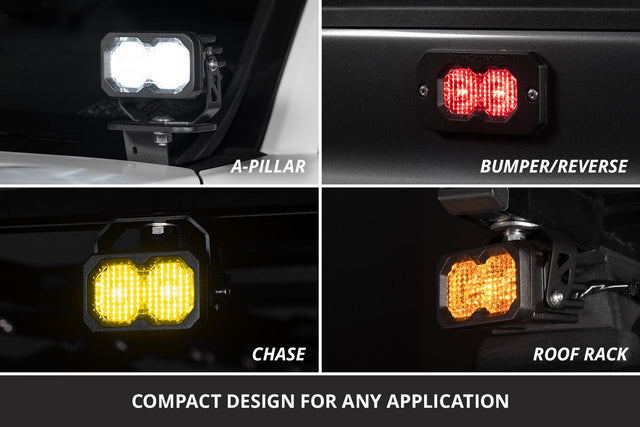

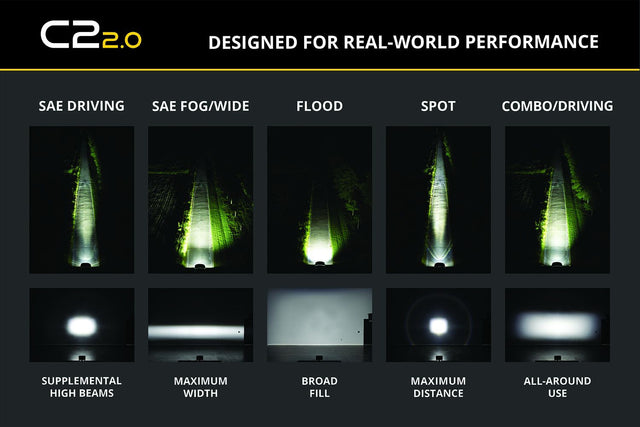

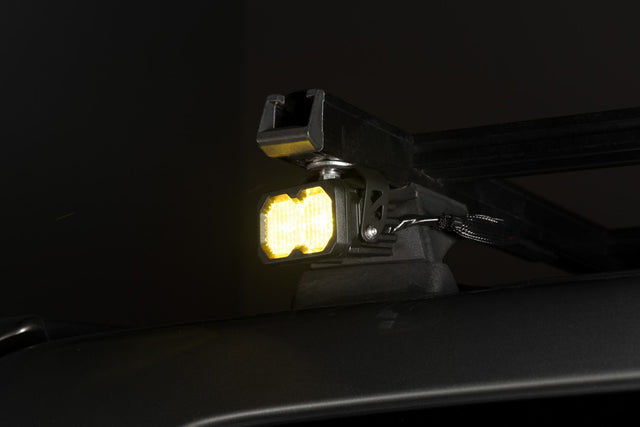

These pods are available in a full range of beam patterns — Spot, Driving, Wide, Combo, Flood, SAE Driving, and SAE Fog — so you can match the optic to exactly how you plan to use them, whether that's throwing light far down a trail, flooding a work area, or meeting road-legal SAE standards for auxiliary driving or fog use. The patented TIR optics squeeze maximum output from a housing compact enough to tuck into tight mounting locations on bumpers, A-pillars, roll cages, or roof racks.

The updated C2 2.0 housing also supports linking multiple pods together, giving you a clean, scalable lighting setup as your build evolves. If you want a capable, low-profile auxiliary light in yellow that doesn't compromise on output, this pair is a straightforward upgrade.
