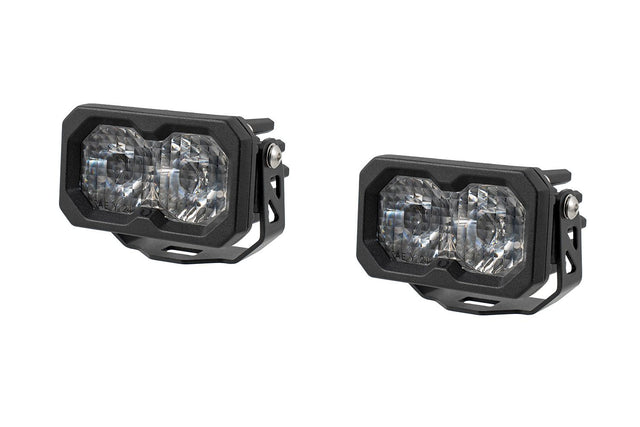

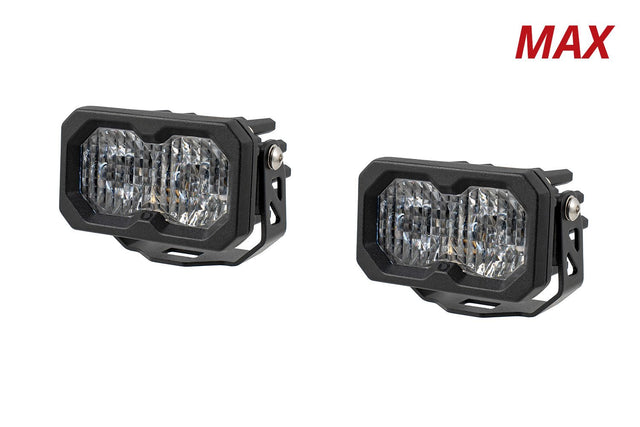

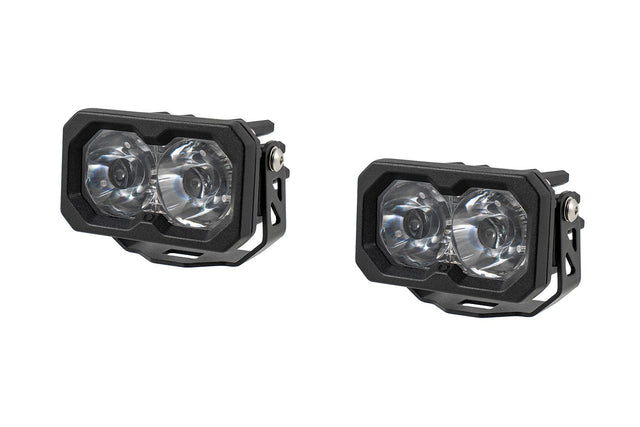

C2 2.0 SAE/DOT White Max Standard LED Pod (pair)

Diode Dynamics  |  SKU: DD8112P  |  Barcode: 00195995143143
Regular price $ 667.00 CAD
Choose Your Beam Pattern

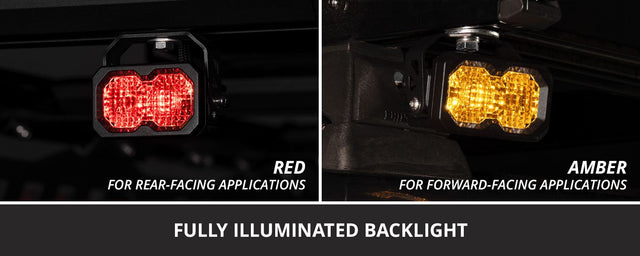

Choose Your Backlight Color
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

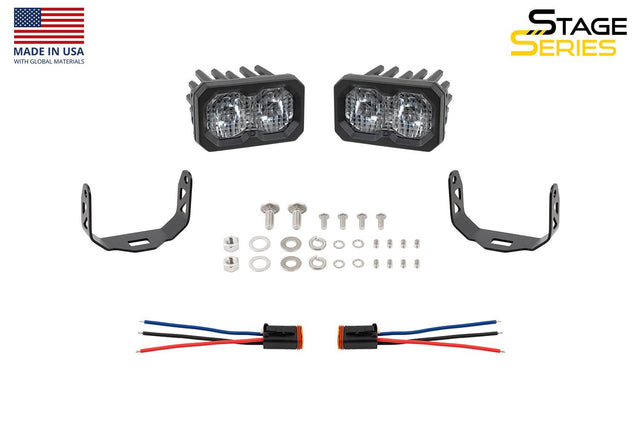

What's in the box 3 ITEMS
Two (2) Stage Series C2 2.0 LED Pods
Two (2) Deutsch-style wire pigtails
Two (2) Mounting brackets and hardware
Optical
Color temperature 6000K
Beam spread Combo/Driving 55°x20°
Power 30W
Operating voltage 9-30V
Grade Performance
Intensity 23 000 cd
LED emitter Osram Boost HX
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA

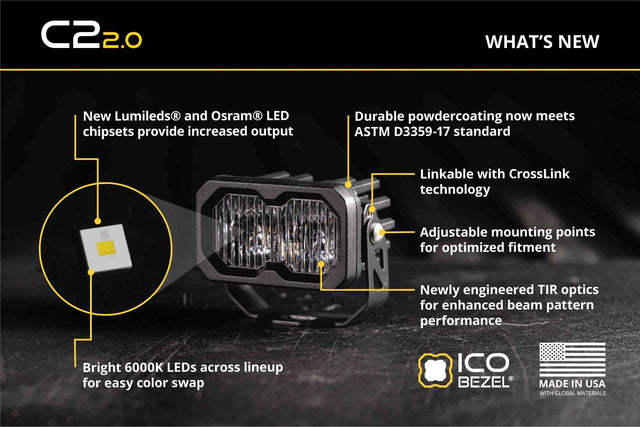

Features & benefits
Ultra-compact design for tight mounting spots
Patented TIR optics for maximum output
Up to 95% more power than C2 1.0

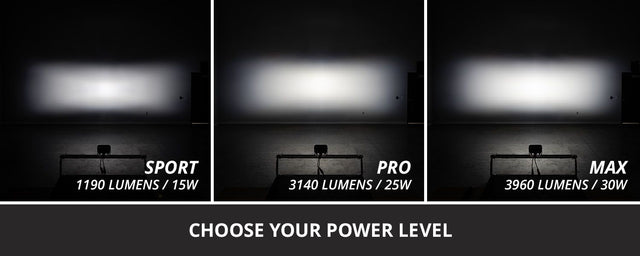

Available in Sport, Pro, and new 3900-lumen Max power levels

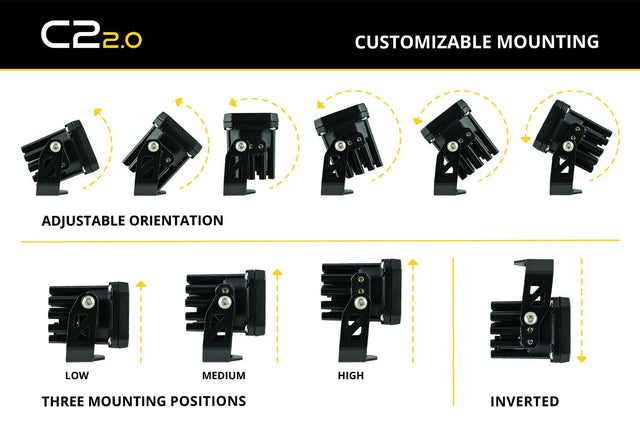

Customizable mounting to dial in your setup
Link multiple pods with CrossLink technology
Limited Lifetime Warranty
Made in USA with Global Materials
Description

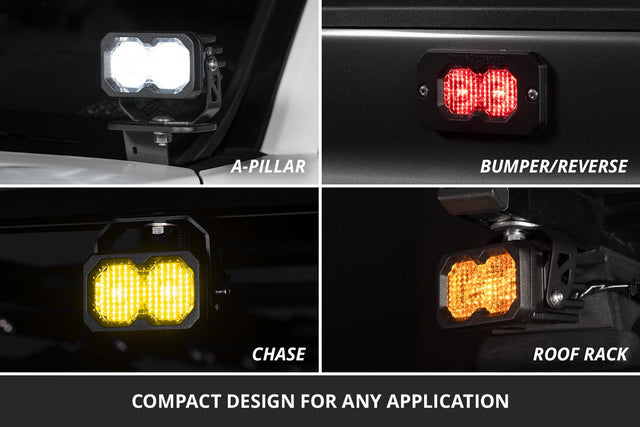

The Diode Dynamics C2 2.0 Max Standard LED Pod pair delivers serious auxiliary lighting in an ultra-compact form factor, purpose-built for trucks, Jeeps, and UTVs that need flexible, high-output illumination without sacrificing mounting options. The C2 2.0 represents a significant step forward from its predecessor, bringing more power and refined TIR optics into the same small footprint that fits tight brackets, bumpers, A-pillars, and roll cages.

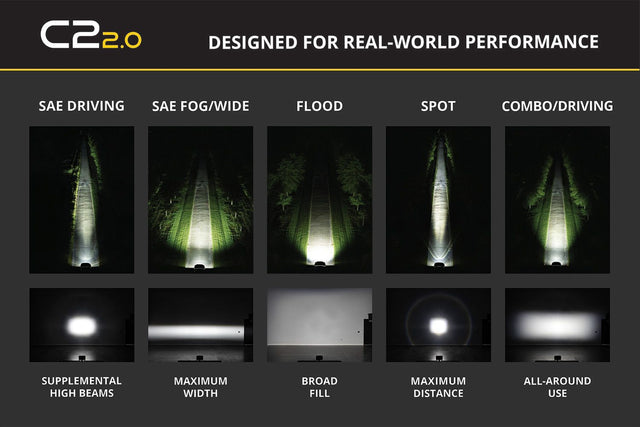

Beam pattern choice is wide open here — you can run Spot or Driving beams for focused long-range reach on trails and back roads, Combo for a balance of distance and spread, Flood or Wide for broad area and work-site coverage, or SAE Driving and SAE Fog patterns when road-legal output matters. Amber and Red color options are also available for those who need contrast lighting or low-disturbance illumination in specific conditions.

The updated housing is designed to link multiple pods together, giving you clean, scalable builds on custom light bars or multi-pod setups. If you want compact pods that punch well above their size, the C2 2.0 Max is built for exactly that job.
