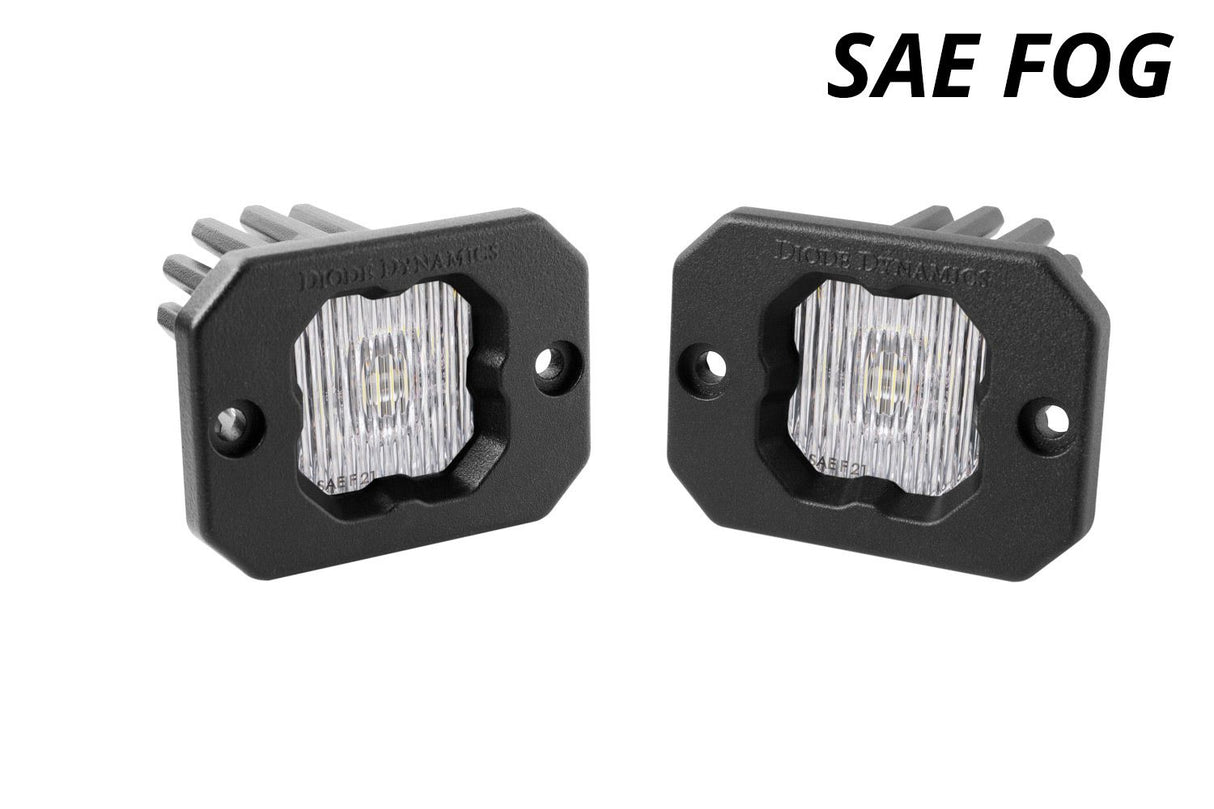

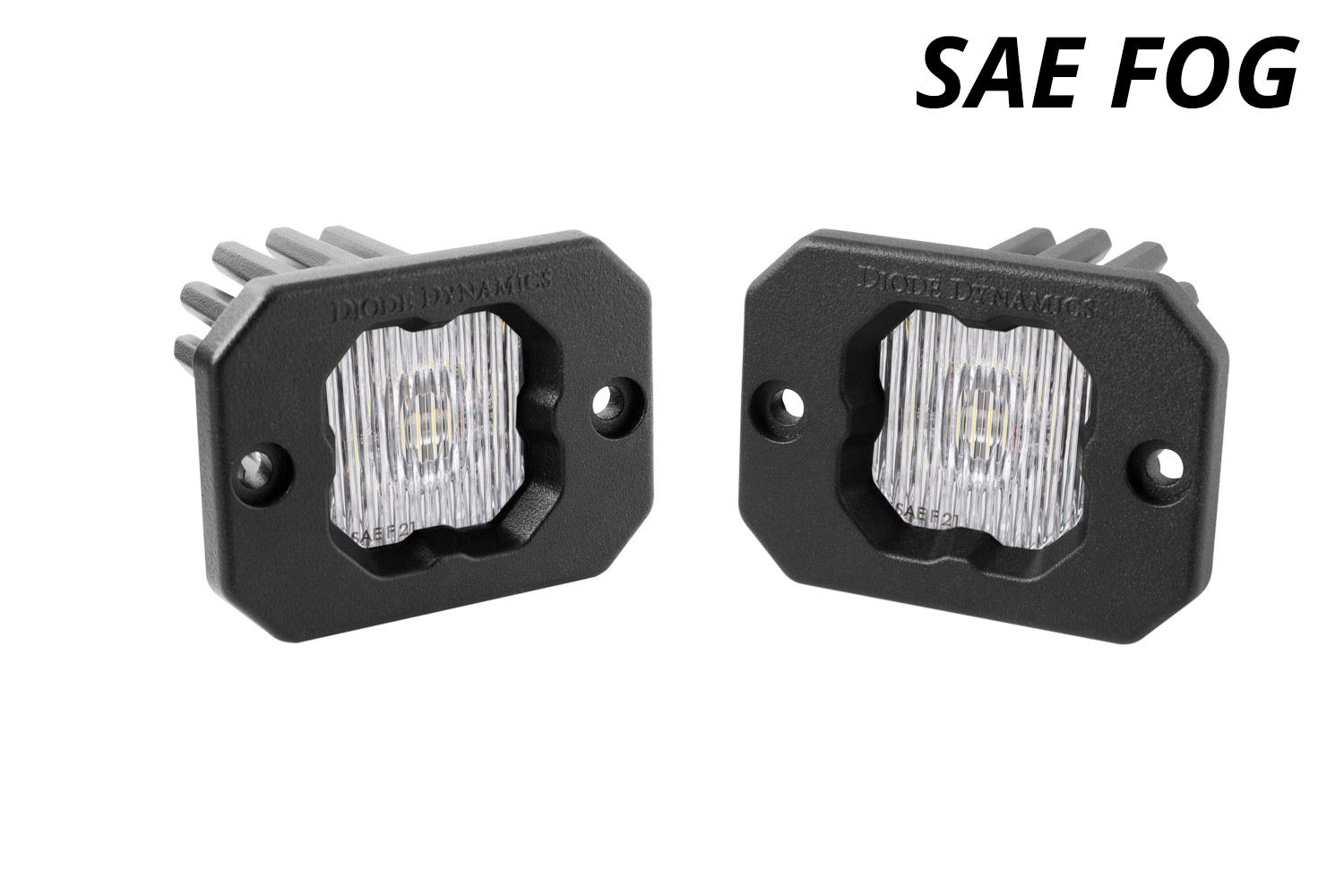

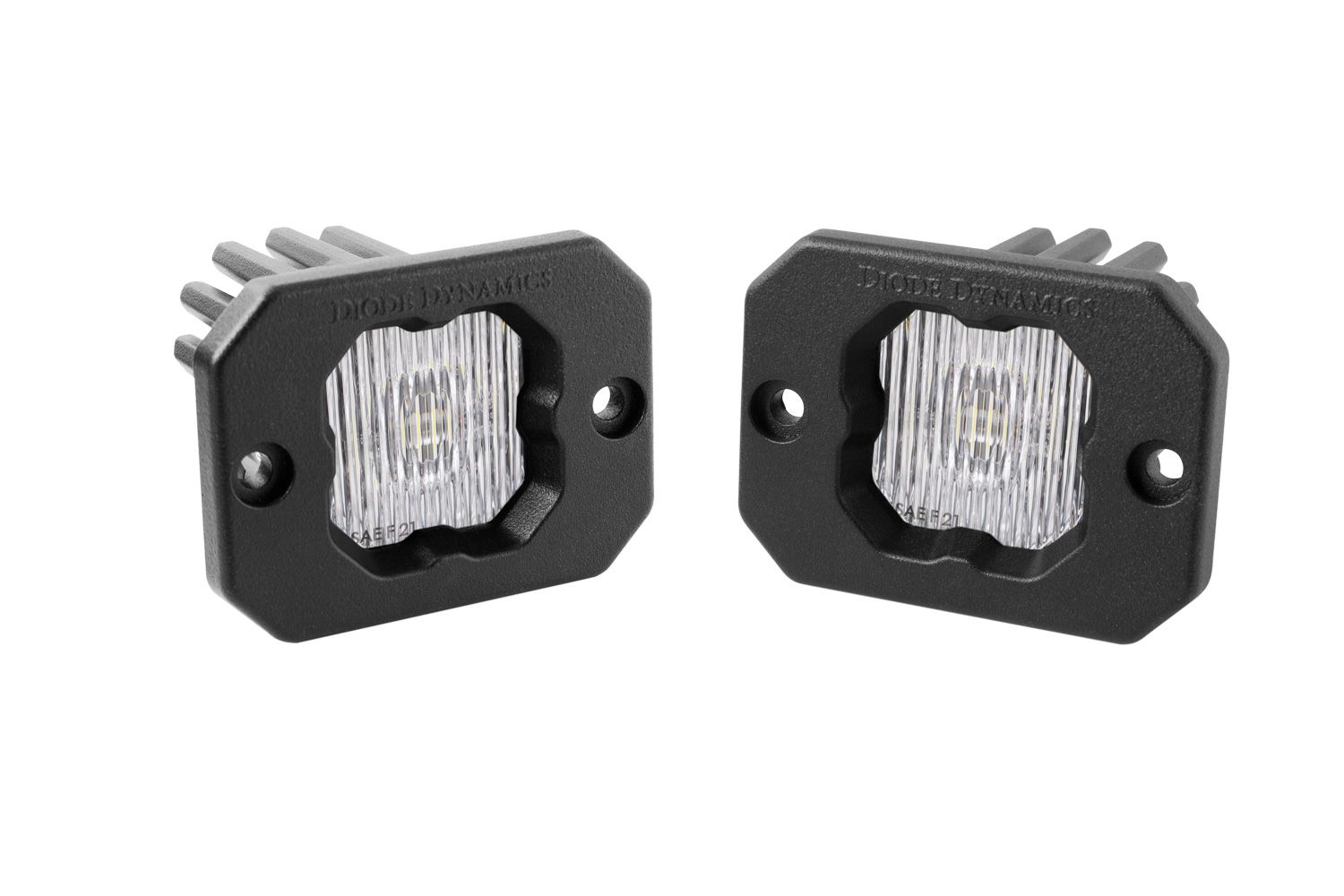

SSC1 White SAE Fog Flush Mount LED Pod (pair)

Diode Dynamics  |  SKU: DD6850P  |  Barcode: 691026130286
Sale price $ 288.00 CAD Regular price $ 361.00 CAD
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

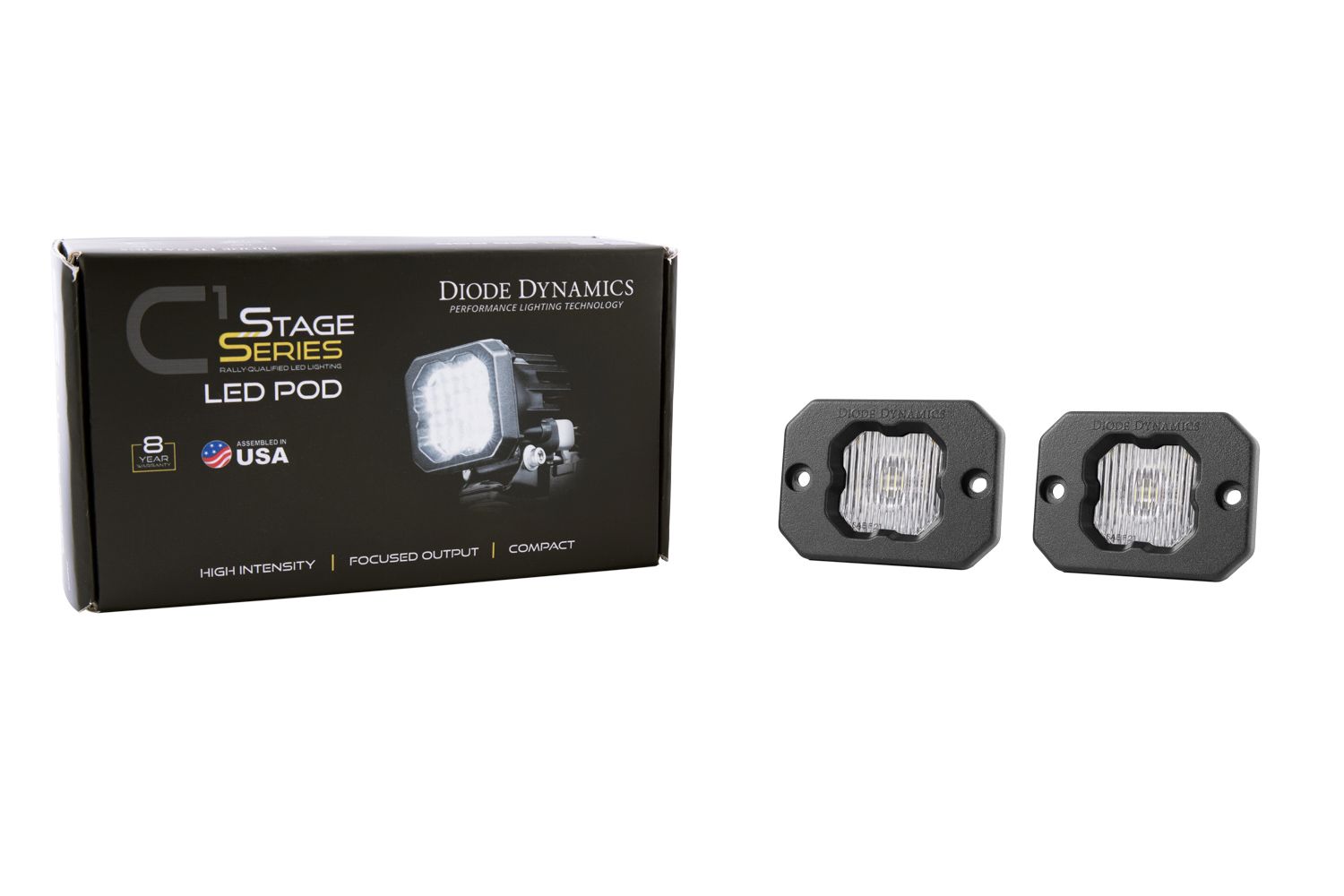

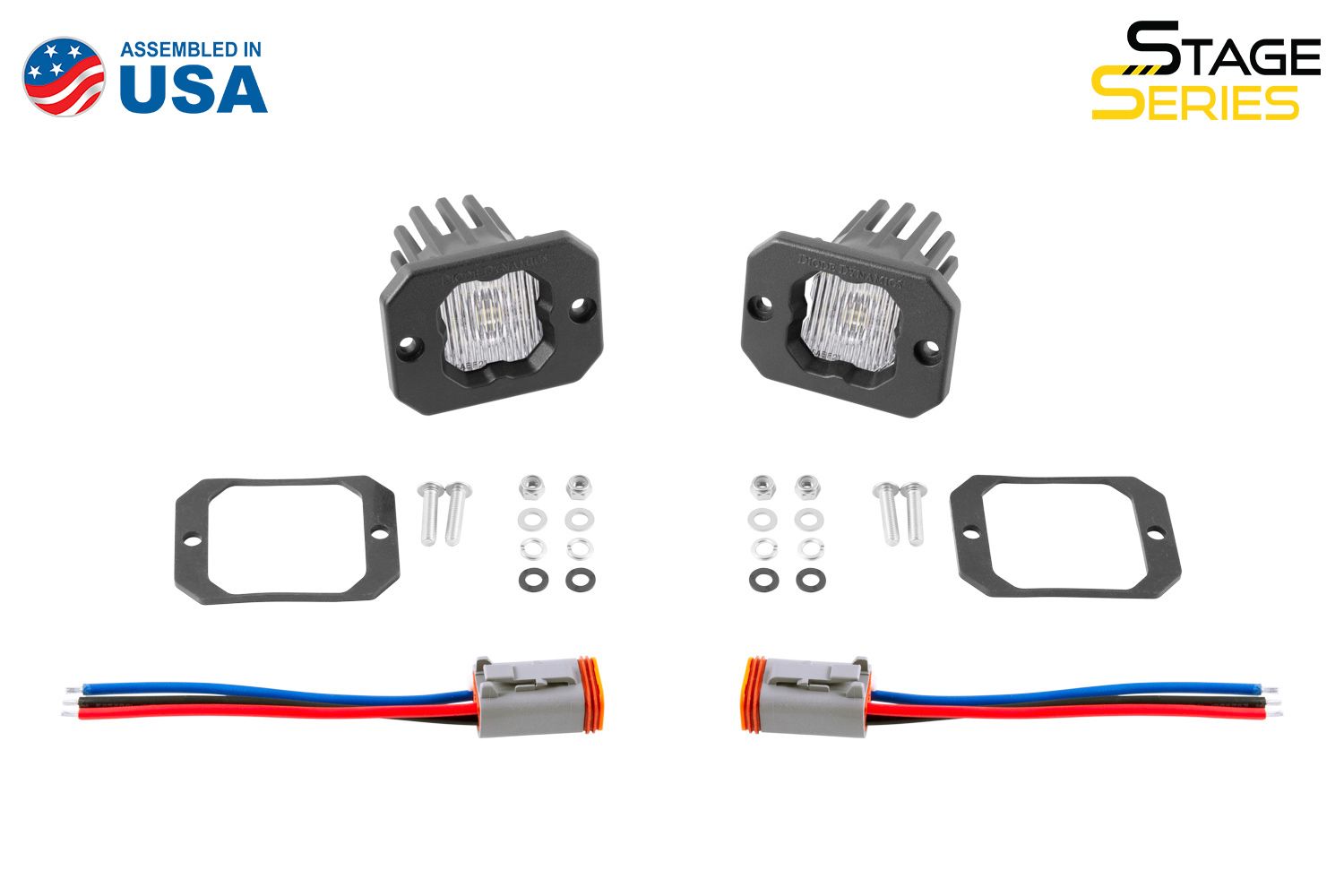

What's in the box 3 ITEMS
Two (2) Stage Series C1 LED Pods
Two (2) Deutsch-style wire pigtails
Two (2) Mounting brackets and hardware
Optical
Color temperature 6000K

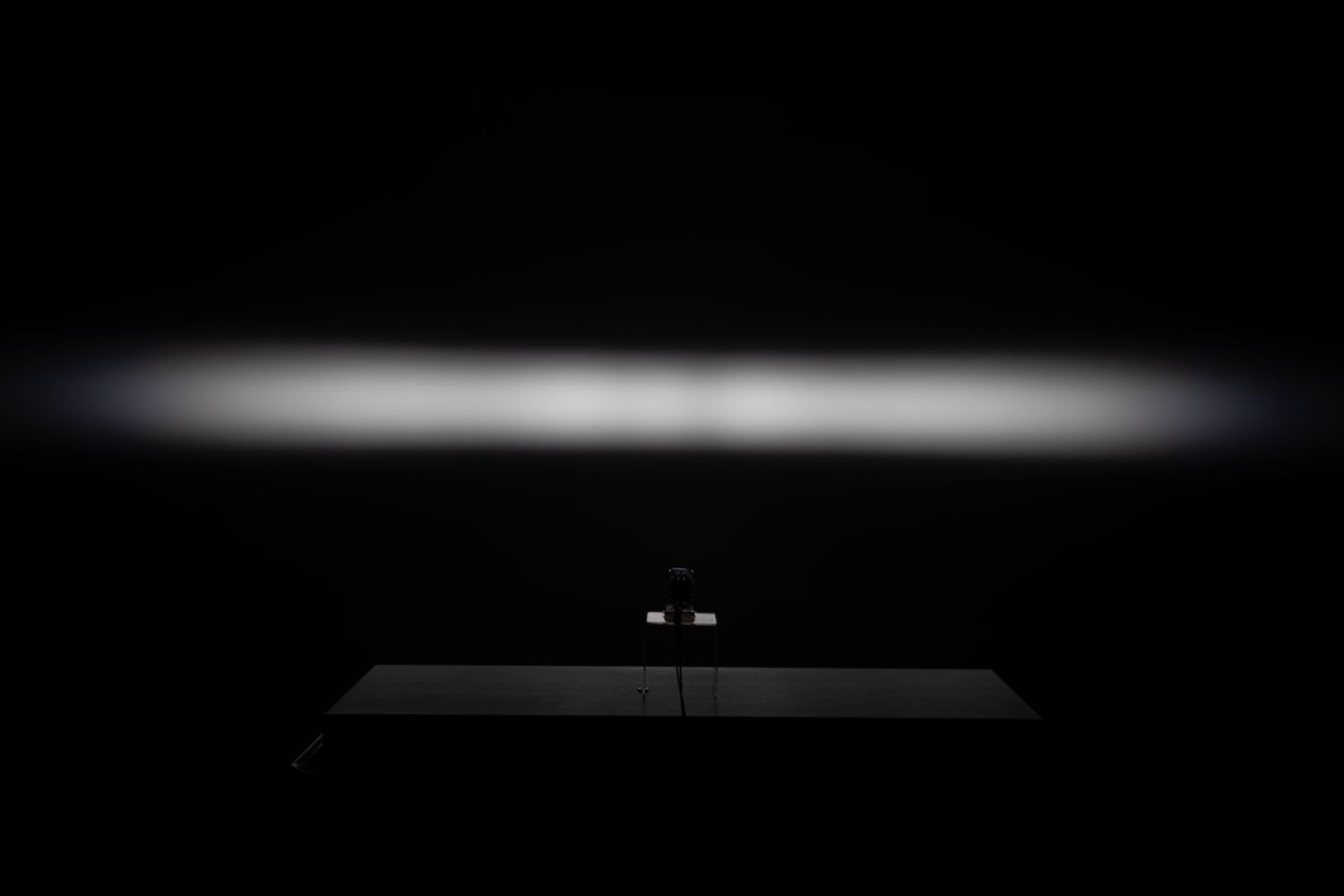

Beam spread Fog 98°x9°
Power 19W
Operating voltage 9-16V
Grade Performance
LED emitter Osram Boost HX
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Finish sheen Matte
Bolt thread Medium
Bolt grade High
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Features & benefits
Ultra-compact, single-LED form factor
SAE-compliant, road-legal output
Single automotive-grade Osram HX Boost 20-watt LED
Backlighting available in white and amber
Integrated Deutsch-style connector
Designed, torture-tested and assembled in USA
Description

The Diode Dynamics SSC1 White SAE Fog Flush Mount LED Pod pair is a compact, high-output fog lighting solution designed to replace or supplement your factory fog light positions with a clean, flush-mounted look. The SAE-compliant fog beam pattern throws a wide, low, controlled spread of light directly in front of your vehicle — cutting through rain, snow, and low-lying fog without blinding oncoming traffic or washing out your near-field vision.

Built around a single high-power LED chip paired with precision TIR optics, the SSC1 delivers focused, efficient output from a surprisingly small housing. The pin-fin heatsink keeps thermals in check during extended use, and the integrated Deutsch-style connector makes installation straightforward whether you're wiring into an existing fog circuit or adding a dedicated switch.

These pods suit daily drivers, overlanders, and work truck operators who want reliable fog lighting that looks factory-clean. Diode Dynamics engineered the SSC1 for long-term durability in demanding conditions, so you can count on consistent performance season after season.

Documentation
$ 288.00 CAD● In stock
