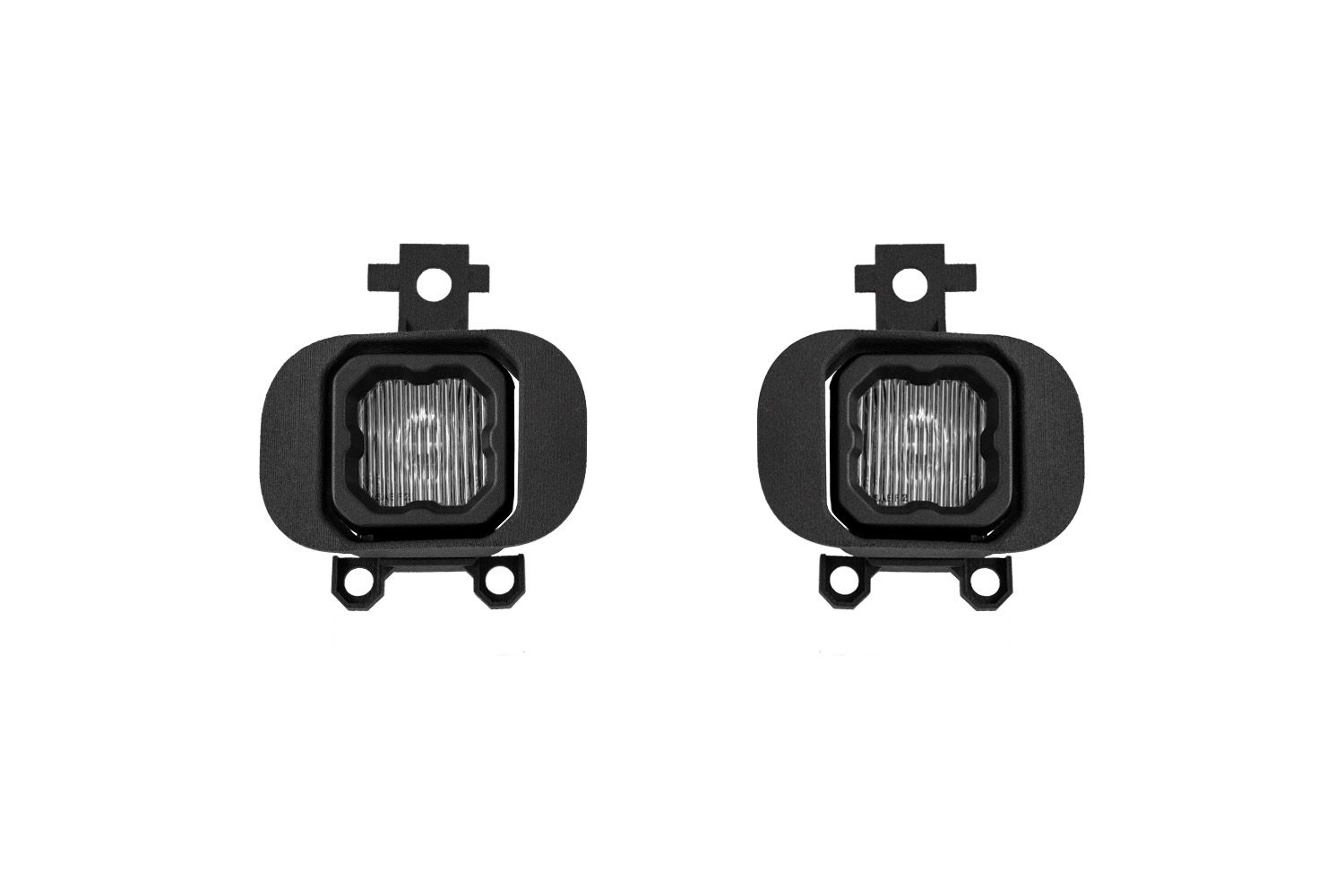

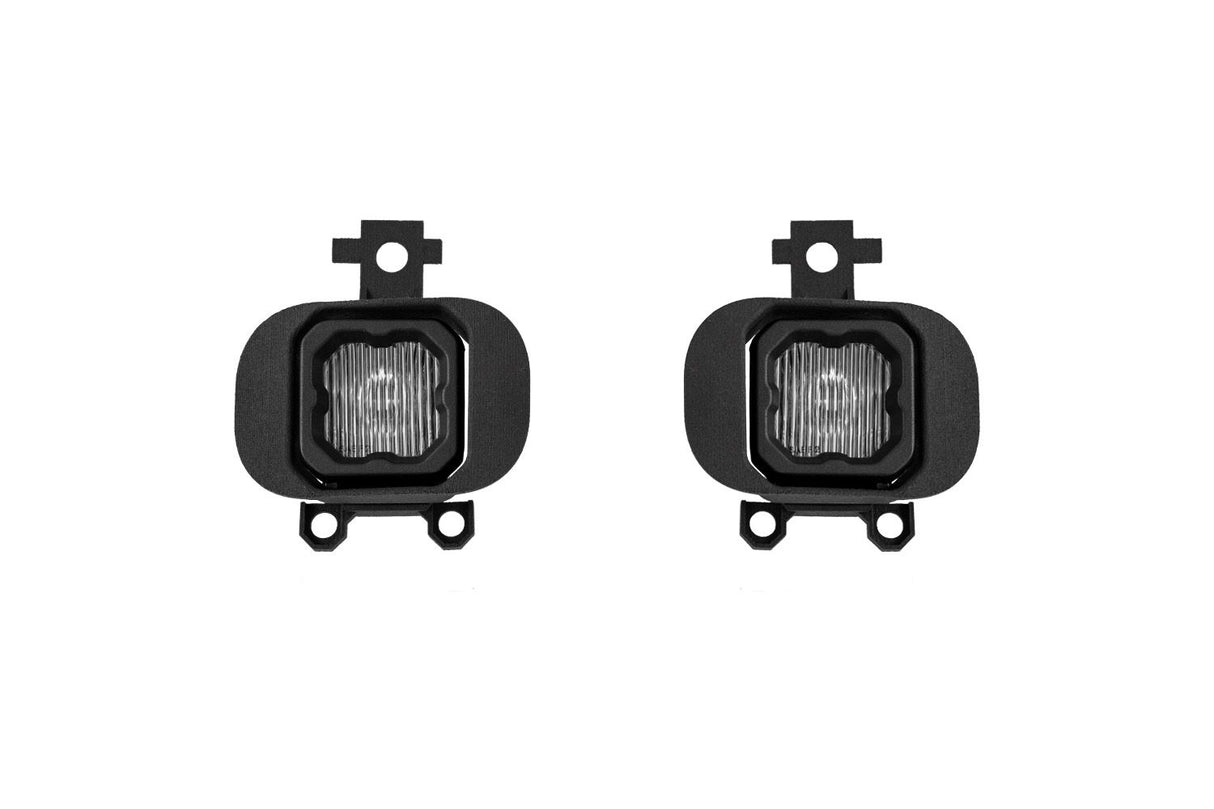

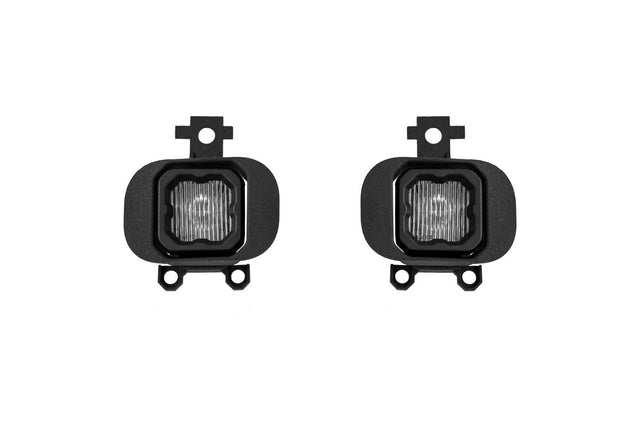

SSC1 SAE Type NSQ Fog Light Kit

Diode Dynamics  |  SKU: DD8354  |  Barcode: 195995138606
Sale price $ 356.00 CAD Regular price $ 445.00 CAD
Choose Your Optic and Color
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

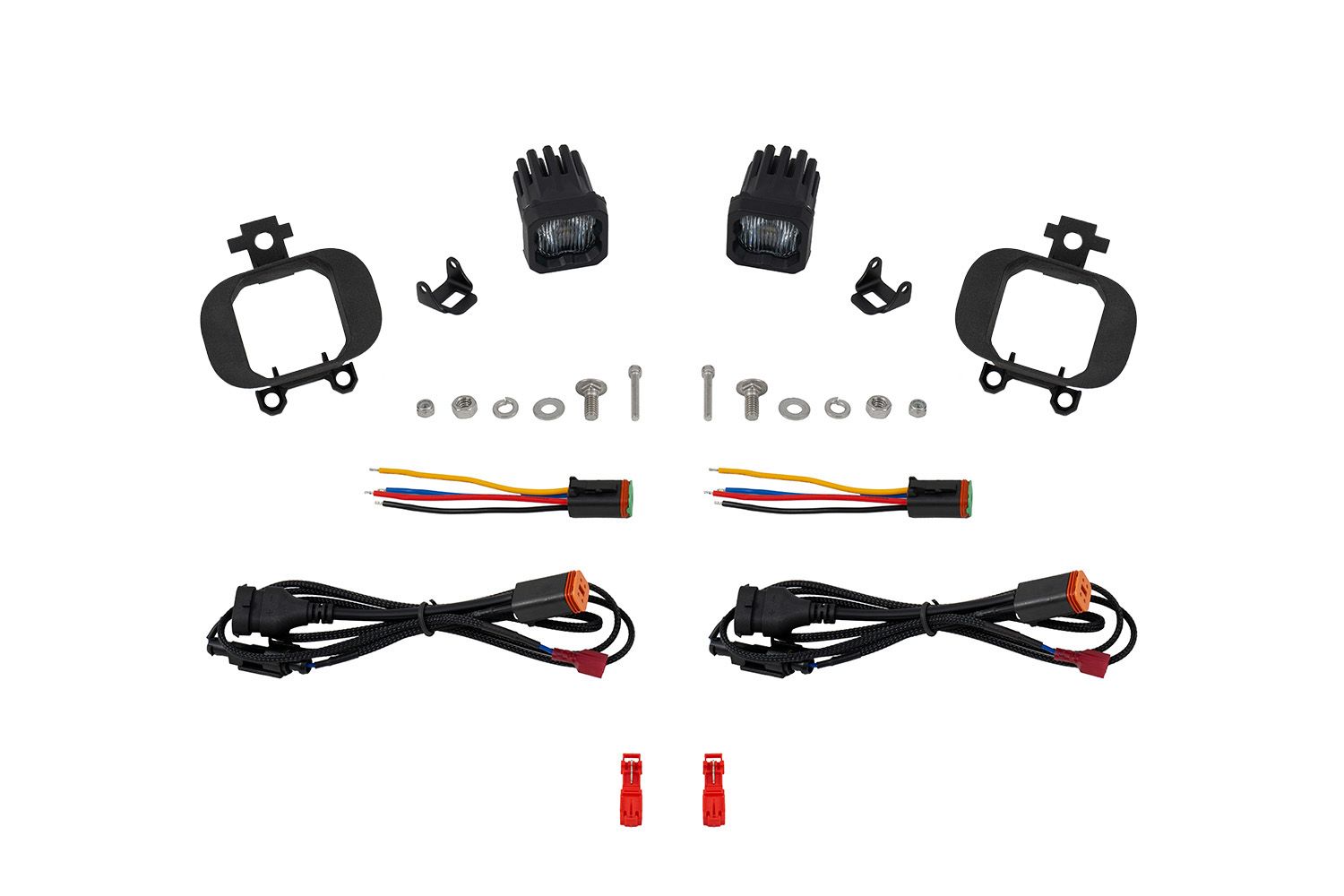

What's in the box 4 ITEMS
Two (2) SSC1 LED pods
One (1) H11 Backlight Tap Wire Kit
Two (2) Foxbeam Type NSQ brackets
Mounting hardware
Optical
Lumens 430
Color temperature 6000K
Beam spread Fog 98°x9°
Power 19W
Operating voltage 9-16V
Grade Performance
Intensity 6 000 cd
LED emitter Osram Boost HX
Driver features Constant Current
Construction
Housing material Aluminum
Lens material Polycarbonate
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Terminal type Pin
Base color Black
Bracket color Black
Install
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Street legal Yes
SAE/DOT Compliant pattern available
Features & benefits
Advanced TIR optics provide high efficiency and focus
SAE-compliant road-legal output
Includes bezel, for factory-style appearance
Plug and play, no modification needed
Engineered and Assembled in USA
Description

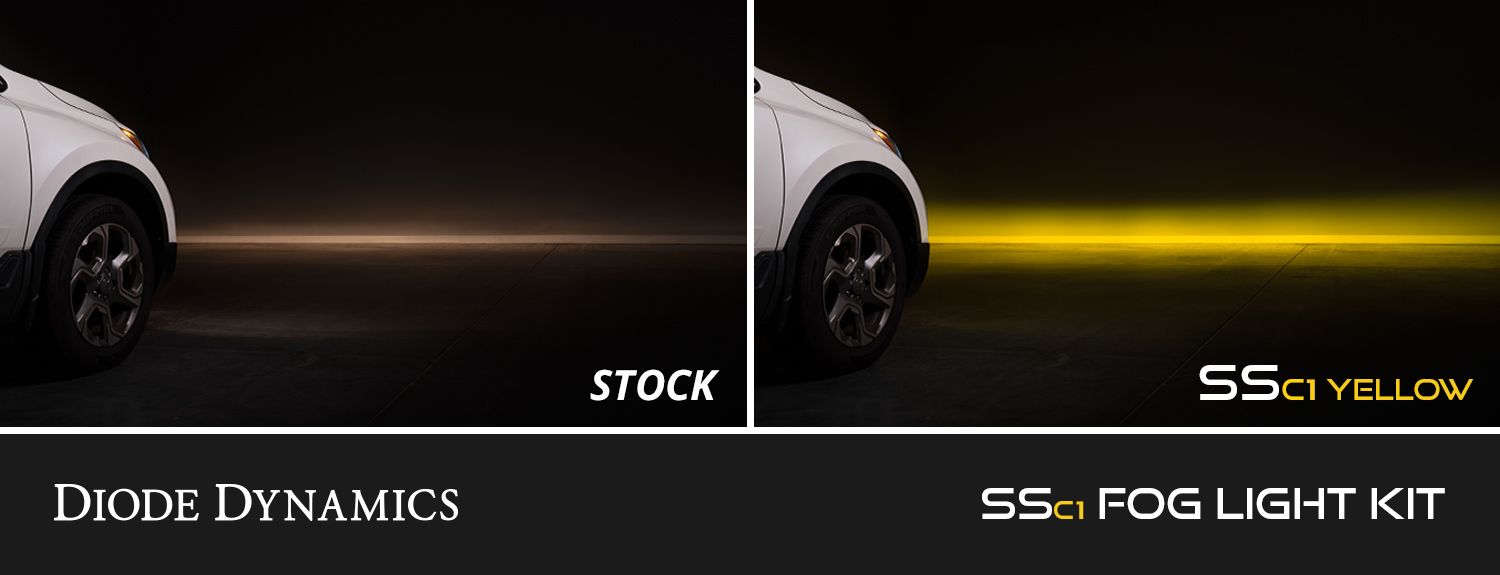

The Diode Dynamics SSC1 SAE Type NSQ Fog Light Kit is a bolt-on LED fog light upgrade designed to deliver road-legal, SAE-compliant fog illumination with a clean, factory-integrated appearance. Whether you're navigating low-visibility conditions on rural highways or wet city streets, this kit puts proper wide, low-throw fog coverage exactly where you need it — cutting through rain, snow, and mist without blinding oncoming traffic.

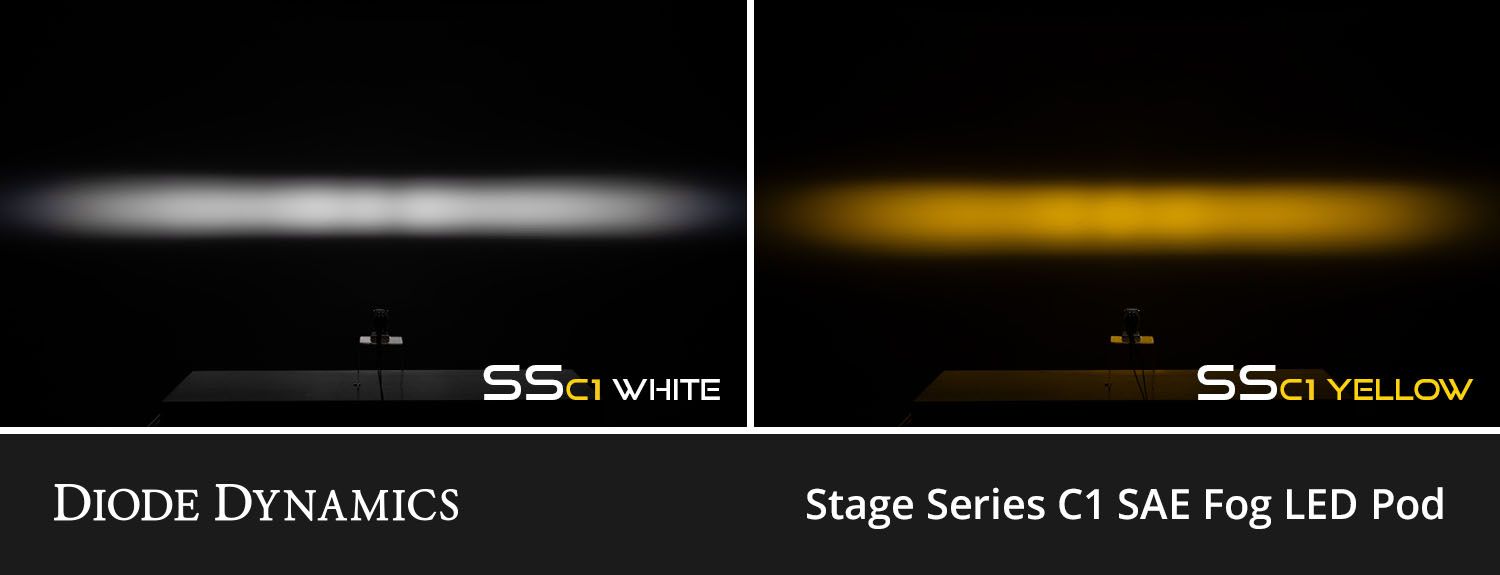

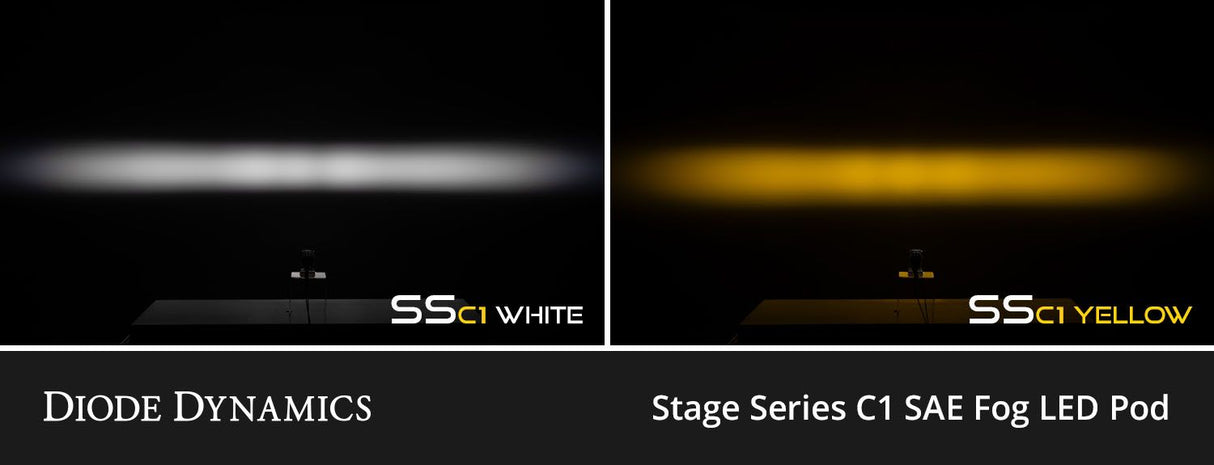

Available in White SAE Fog or Yellow SAE Fog, the SSC1 gives you a choice to match your driving environment and personal preference. White offers crisp, neutral-toned fog output, while Yellow is a popular choice for heavy rain and coastal fog where reduced glare and improved contrast matter most.

The SSC1's TIR optics keep output focused and efficient, and the custom-molded bracket design means a true plug-and-play installation with no cutting or modification required. If you want a straightforward fog light improvement that looks factory and performs well above stock, this kit is built for you.

Documentation
$ 356.00 CAD● In stock
