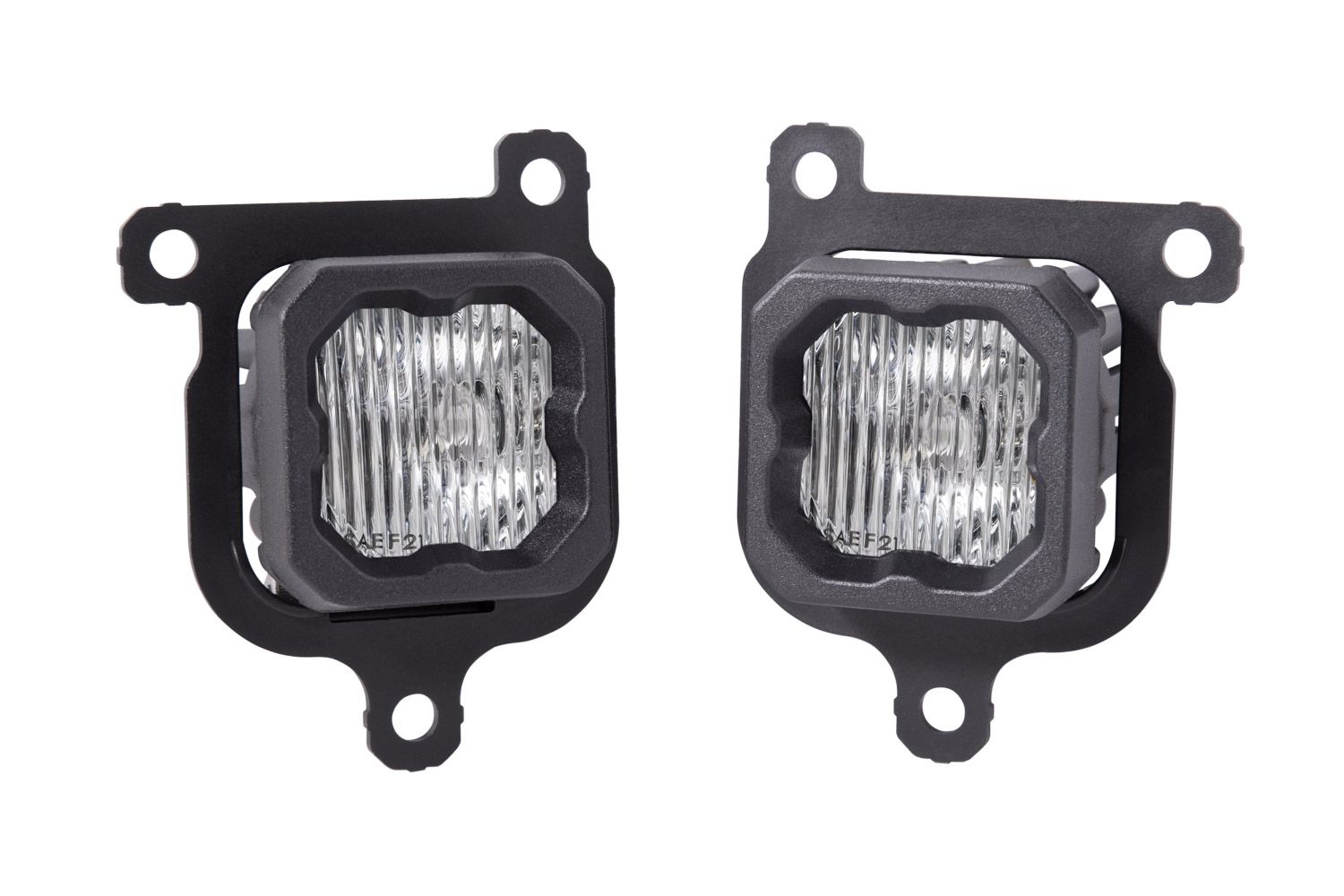

SSC1 SAE Type FBS Fog Light Kit

Diode Dynamics  |  SKU: DD7174  |  Barcode: 691025930740
Sale price $ 333.00 CAD Regular price $ 417.00 CAD
Choose Your Optic and Color
Fitment & Install Notes
Fits
Fits: 2021-2026 Ford Bronco Sport
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

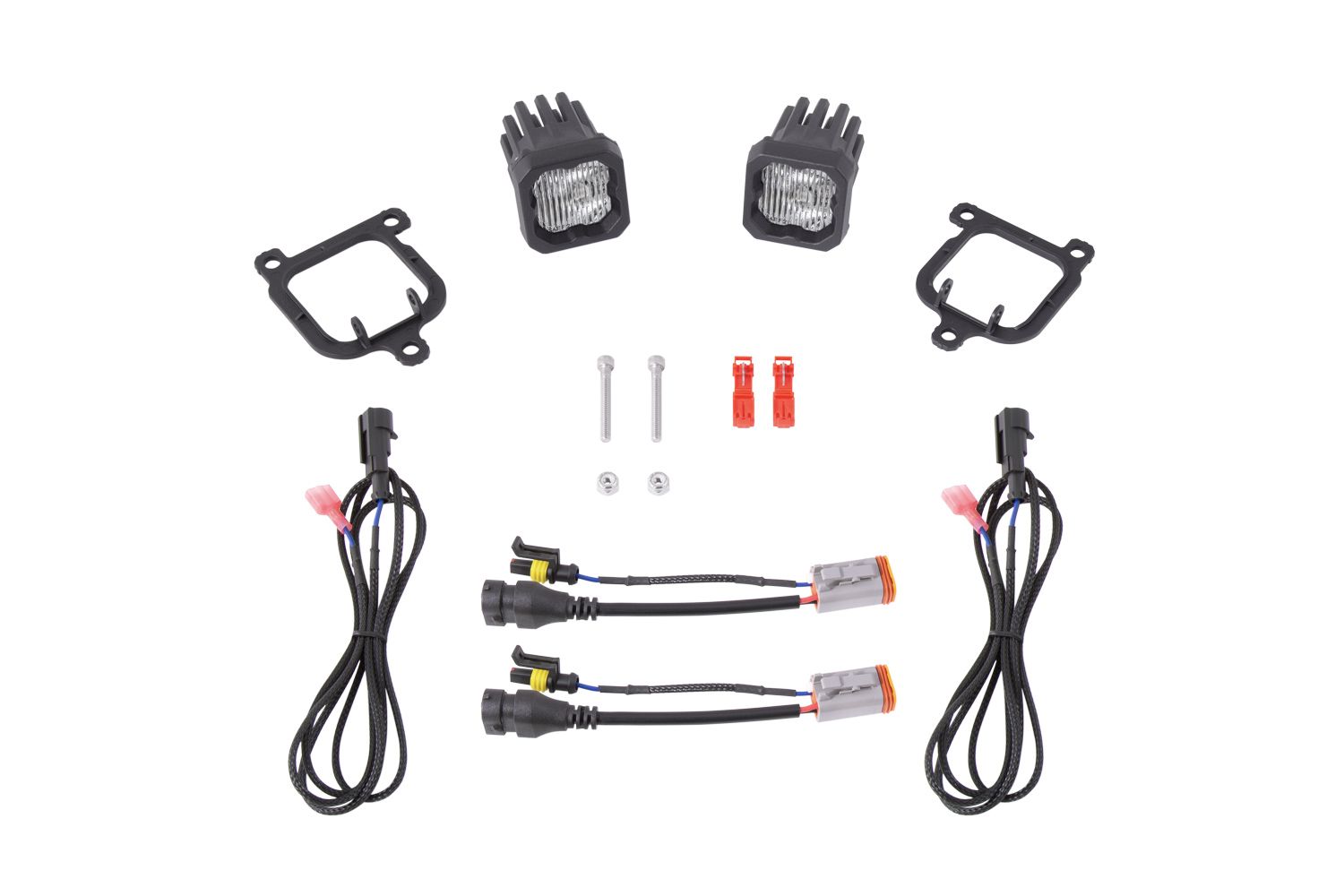

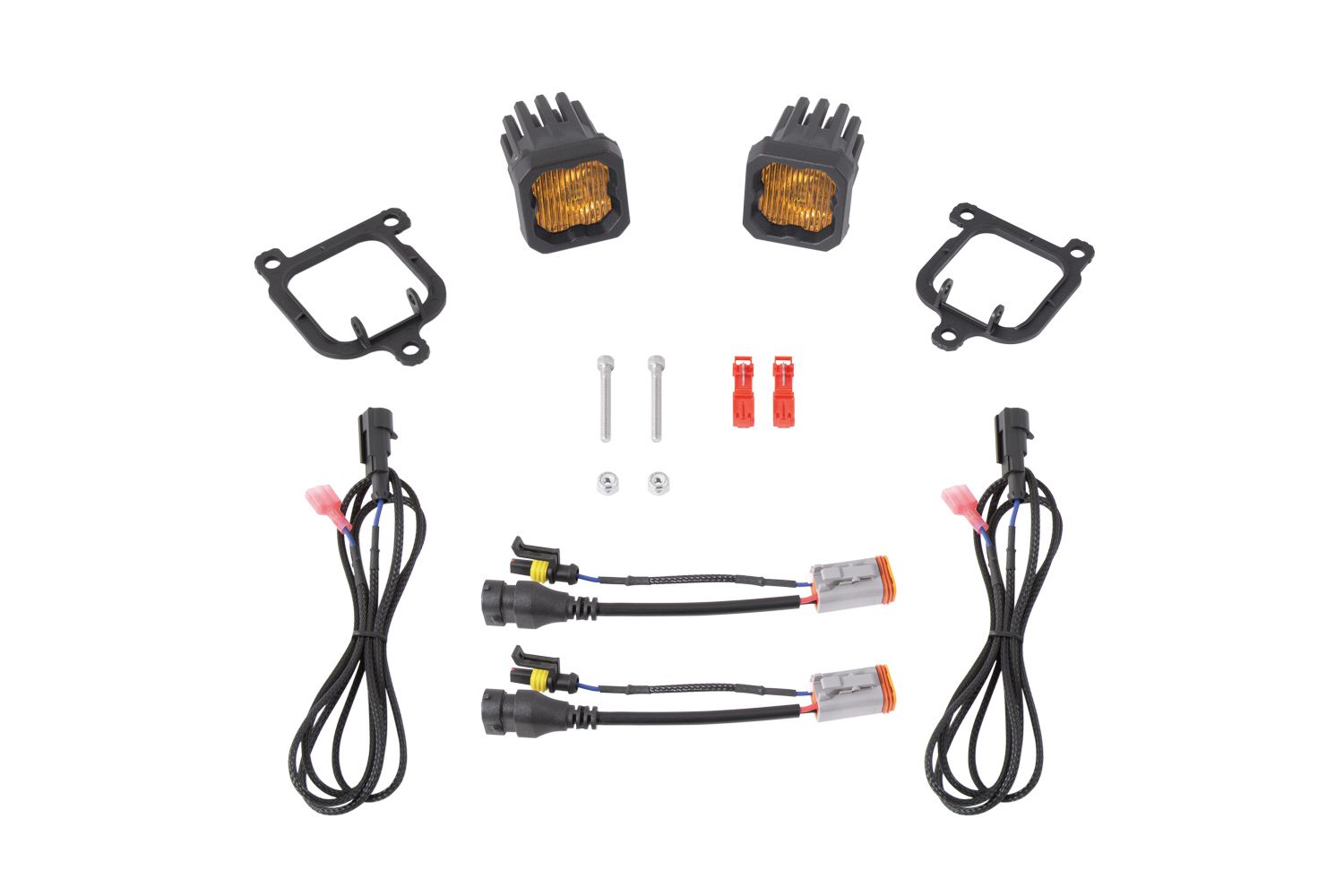

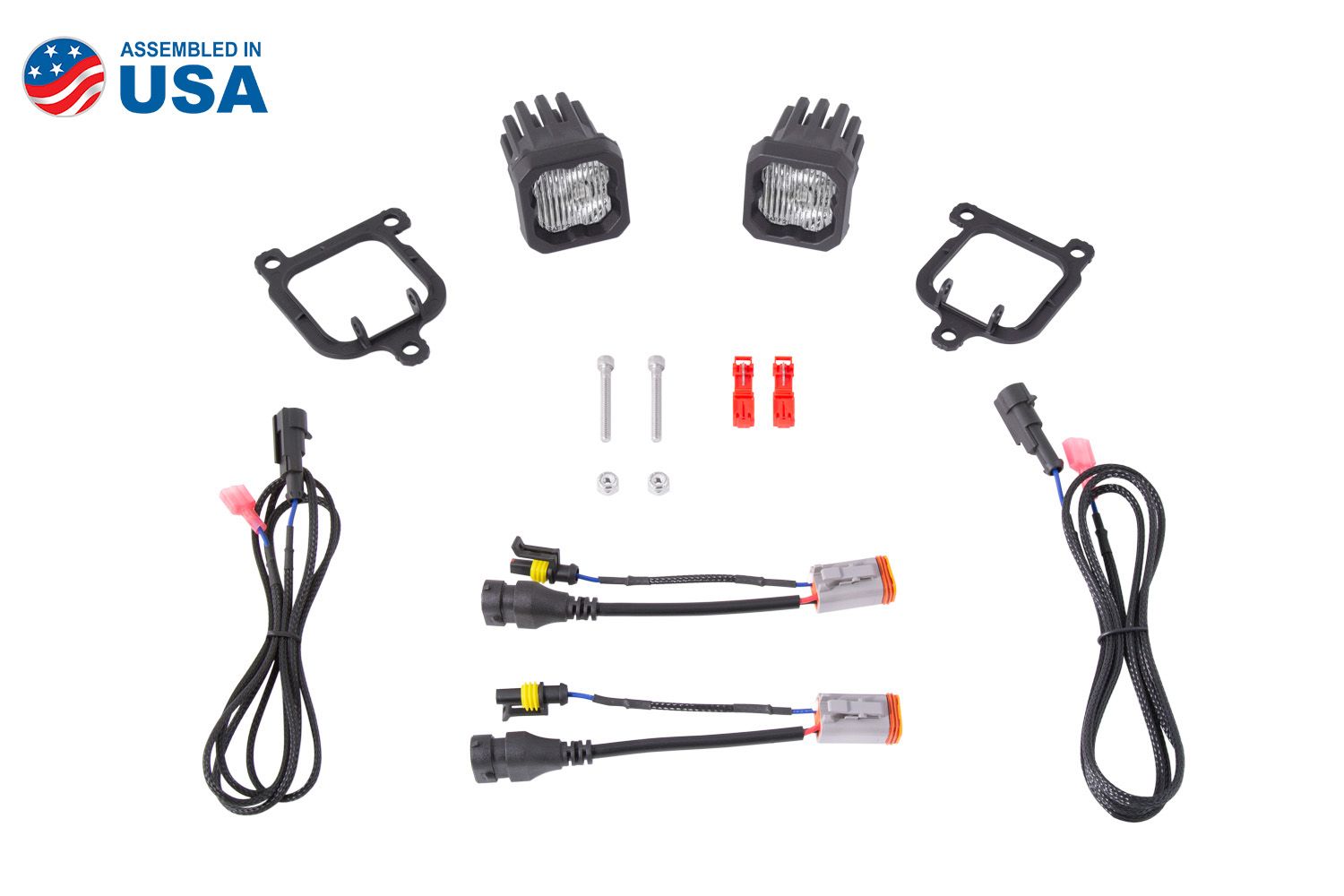

What's in the box 5 ITEMS
Two (2) SSC1 standard LED pods
Two (2) T-taps
Two (2) H11 DT 4-Pin adapters
Two (2) Type FBS brackets
Mounting hardware
Optical
Lumens 430
Color temperature 6000K
Beam spread Fog 98°x9°
Power Main Beam: Backlight:
Operating voltage 9-16V
Grade Performance
Intensity 6 000 cd
LED emitter Osram Boost HX
Driver features Constant Current
Construction
Housing material Aluminum
Lens material Polycarbonate
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Terminal type Pin
Base color Black
Bracket color Black
Install
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Street legal Yes
SAE/DOT Compliant pattern available
Features & benefits
Bolt-on replacement for your factory fog lamps
SAE-compliant road-legal output
Backlight feature provides amber accent light
Plug-and-play wiring, with included harness
Advanced TIR optics, with Osram Boost HX 20W LED chip
Engineered and Assembled in USA
Description

The Diode Dynamics SSC1 SAE Type FBS Fog Light Kit is a plug-and-play LED fog light upgrade for the Ford Bronco Sport, delivering road-legal output through advanced TIR optics in a compact, purpose-built assembly. Available in White SAE Fog or Yellow SAE Fog, you can choose the colour that best suits your driving conditions — white for broad daylight visibility and yellow for cutting through rain, snow, and low-lying fog.

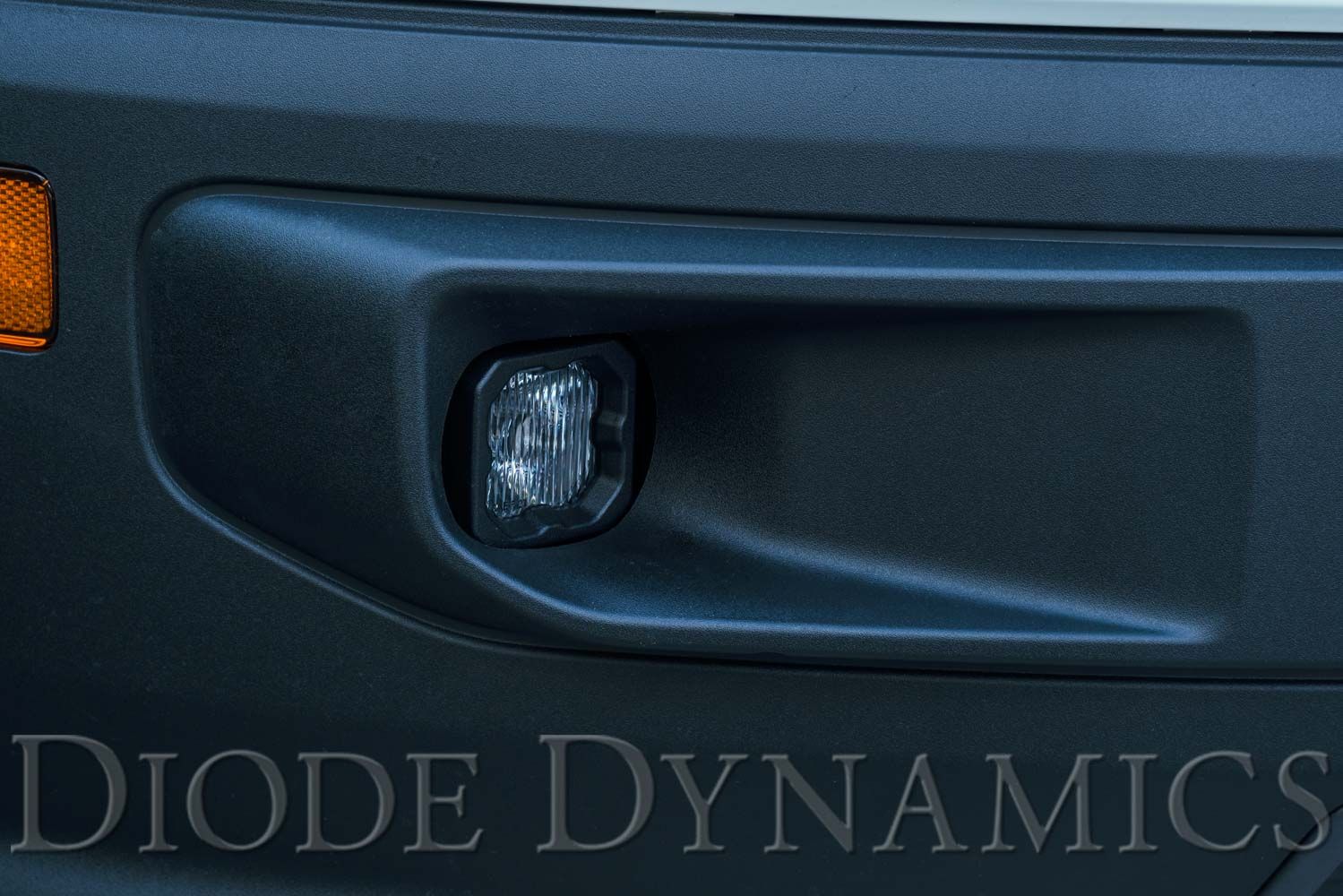

A vehicle-specific molded bracket means the kit bolts directly into place without drilling, cutting, or custom fabrication, making installation straightforward for any skill level. The SSC1's TIR optic design maximizes efficiency and throws a focused, SAE-compliant beam pattern that keeps light on the road where it counts without blinding oncoming drivers.

This kit is a strong choice for Bronco Sport owners who spend time on early-morning commutes, back roads, or seasonal weather where factory fog lights fall short. Engineered and assembled in the USA, the SSC1 is built to last and sized to fit cleanly within your existing bumper cutouts.
