Stage Series Universal Rock Light SXS Installer Kit (8-pack)

Diode Dynamics  |  SKU: DD7752  |  Barcode: 00195995137524
Regular price $ 1,029.00 CAD
Choose Your Kit
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

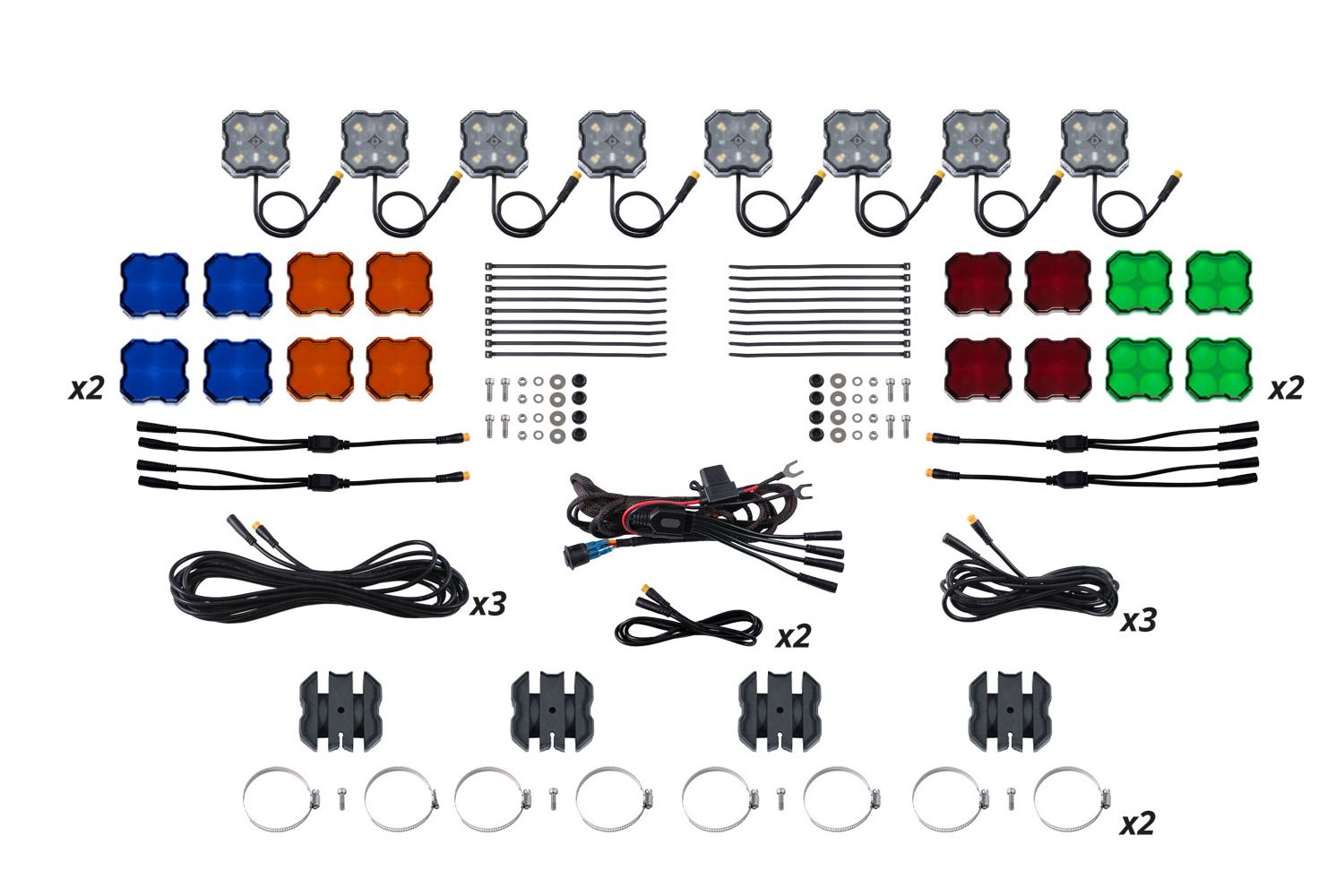

What's in the box 13 ITEMS
Eight (8) Stage Series White Diffused Rock Lights
Eight (8) Red Diffused Replacement Lenses
Eight (8) Amber Diffused Replacement Lenses
Eight (8) Blue Diffused Replacement Lenses
Eight (8) Green Diffused Replacement Lenses
One (1) Rock Light Single-Color Wiring Harness
Eight (8)
Rock Light Tube Mount Adapters
One (1) 1M Extension
Four (4) 3M Extensions
Three (3) 5M Extensions
Twenty-Four (24) Zip Ties
Installation guide
Optical
Lumens 1000
Color temperature 5700K
Beam spread Round 60°
Power 10W
Operating voltage 9-16V
Intensity 360 cd
LED emitter Lumileds Z ES
Driver features Linear Regulated
Construction
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base color Black
Wire quantity 2
Compliance
IP rating IP68 Waterproof
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Weather resistant Yes

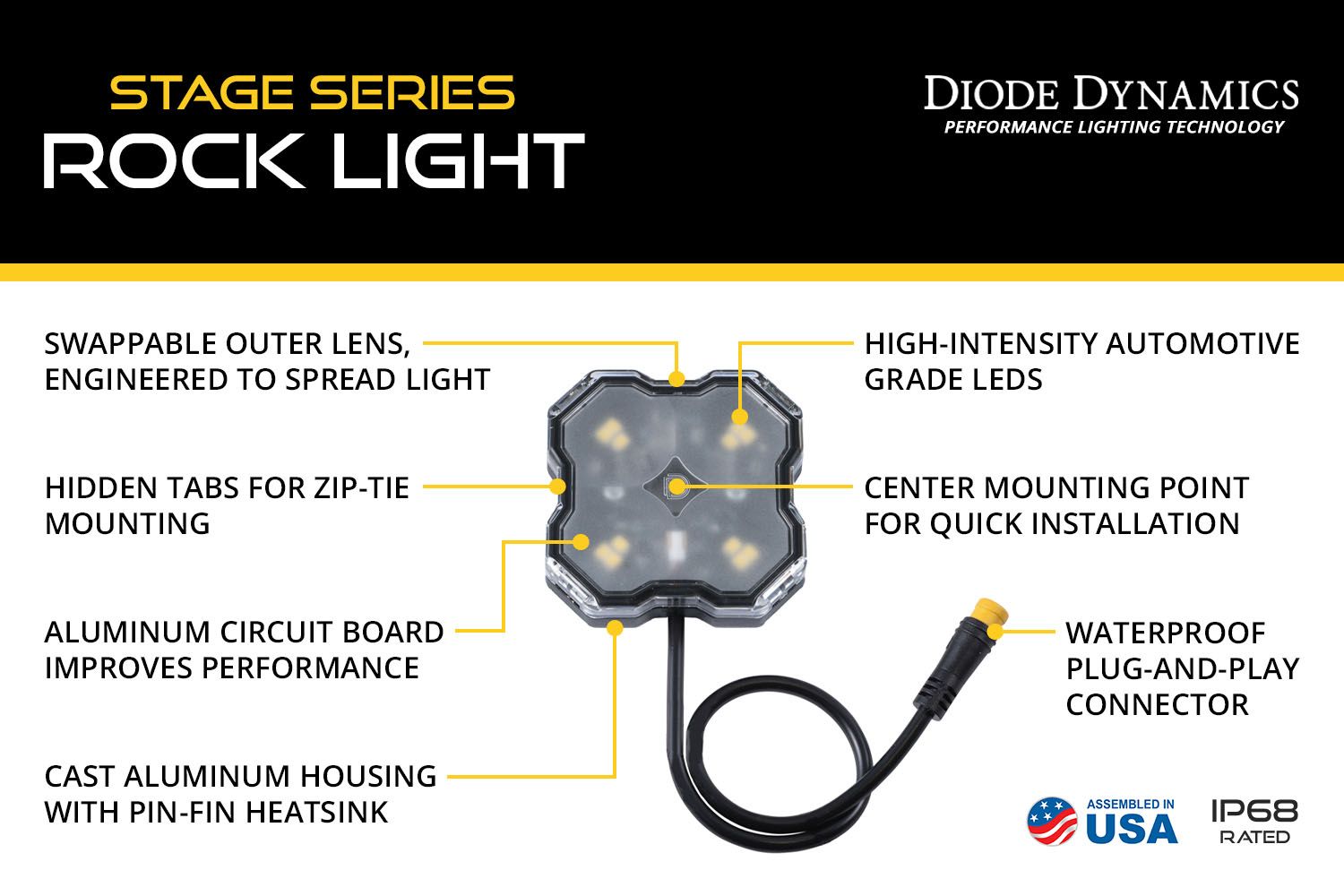

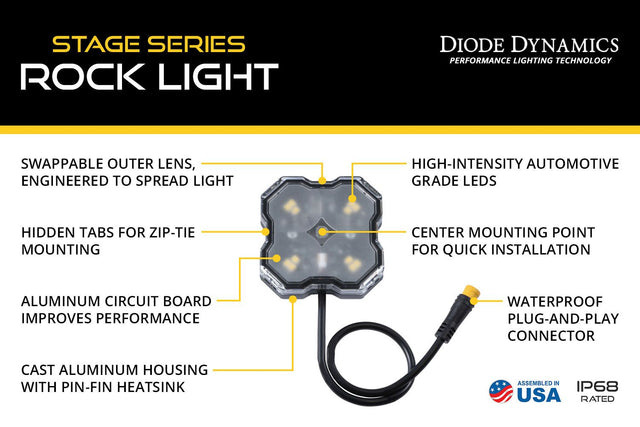

Features & benefits
High-intensity light output
Aluminum heatsink with signature Ico Bezel shape
Thick, durable lenses, engineered to spread light
Engineered and Assembled in USA
Description

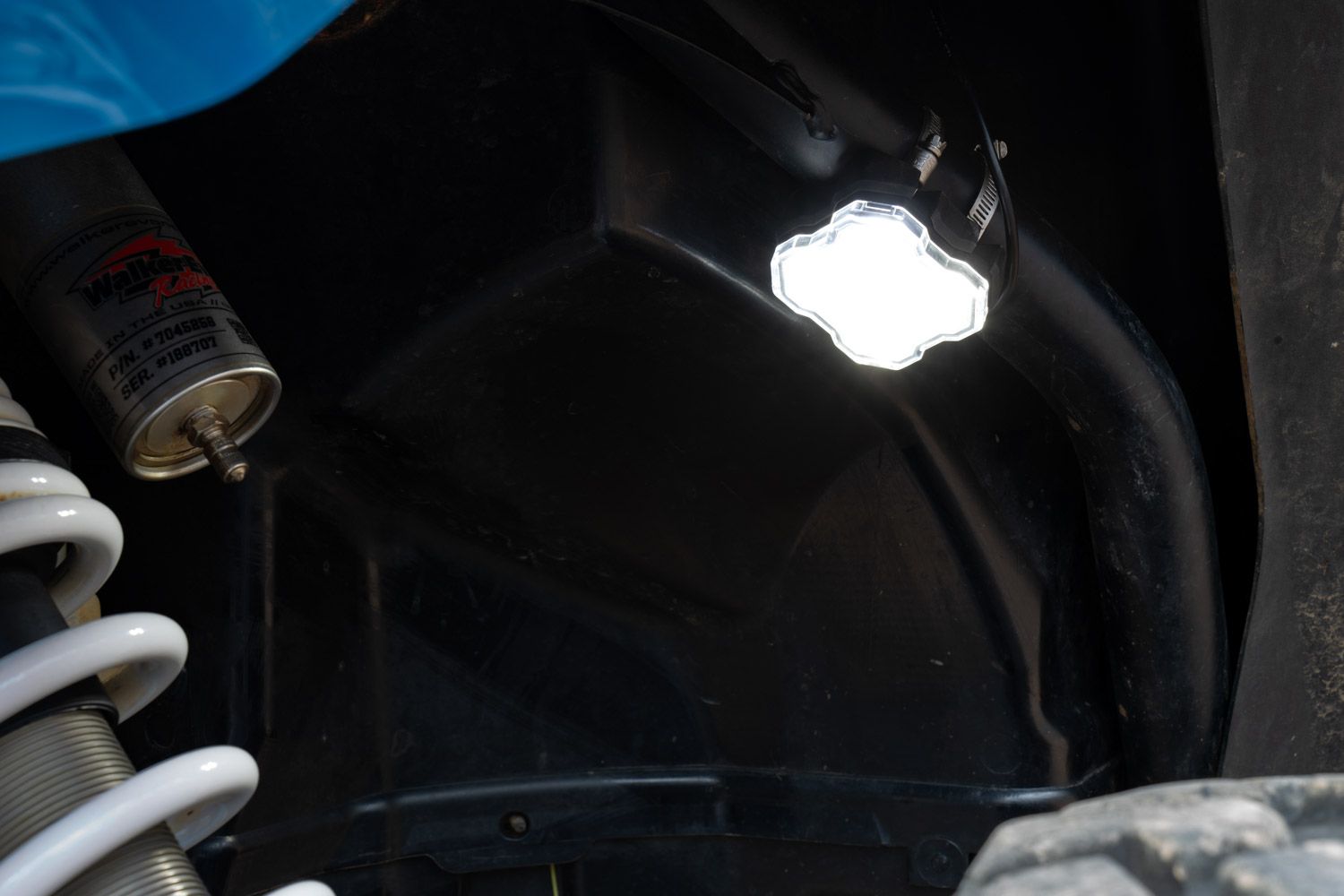

The Stage Series Universal Rock Light SXS Installer Kit is an 8-pack LED lighting solution built for UTVs and side-by-sides that need serious underbody and wheel well illumination for trail riding, night work, or show-quality builds. These lights mount cleanly at center for a factory-integrated look, and the aluminum heatsink construction with Diode Dynamics' signature Ico Bezel shape keeps everything running cool and looking sharp across long sessions.

You have two directions to choose from: Single Colour for clean, consistent output that works hard as area lighting on the trail or job site, or RGBW Multicolour with Controller if you want the flexibility to dial in any colour for builds where style is part of the point. Both options use the same interchangeable lens system, so swapping diffusion or colour is straightforward without pulling the whole setup.

This kit is built for UTV owners who want a clean, complete install without compromise — whether you're running dark trails, working a property at night, or building a show-worthy rig.

Documentation
$ 1,029.00 CAD● In stock
