Stage Series Universal Rock Light SXS Installer Kit (4-pack)

Diode Dynamics  |  SKU: DD7750  |  Barcode: 00195995133595
Regular price $ 445.00 CAD
Choose Your Kit
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

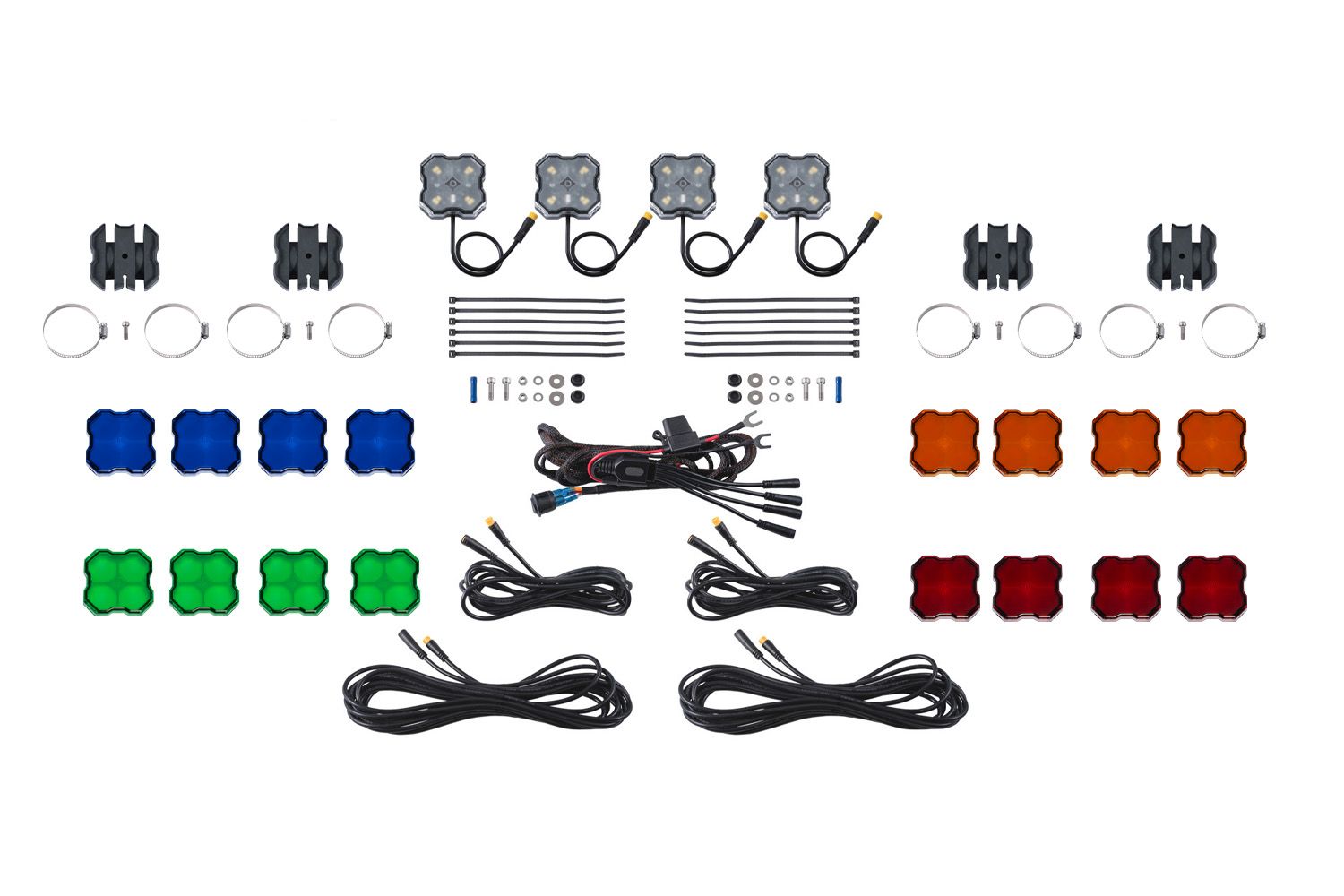

What's in the box 13 ITEMS

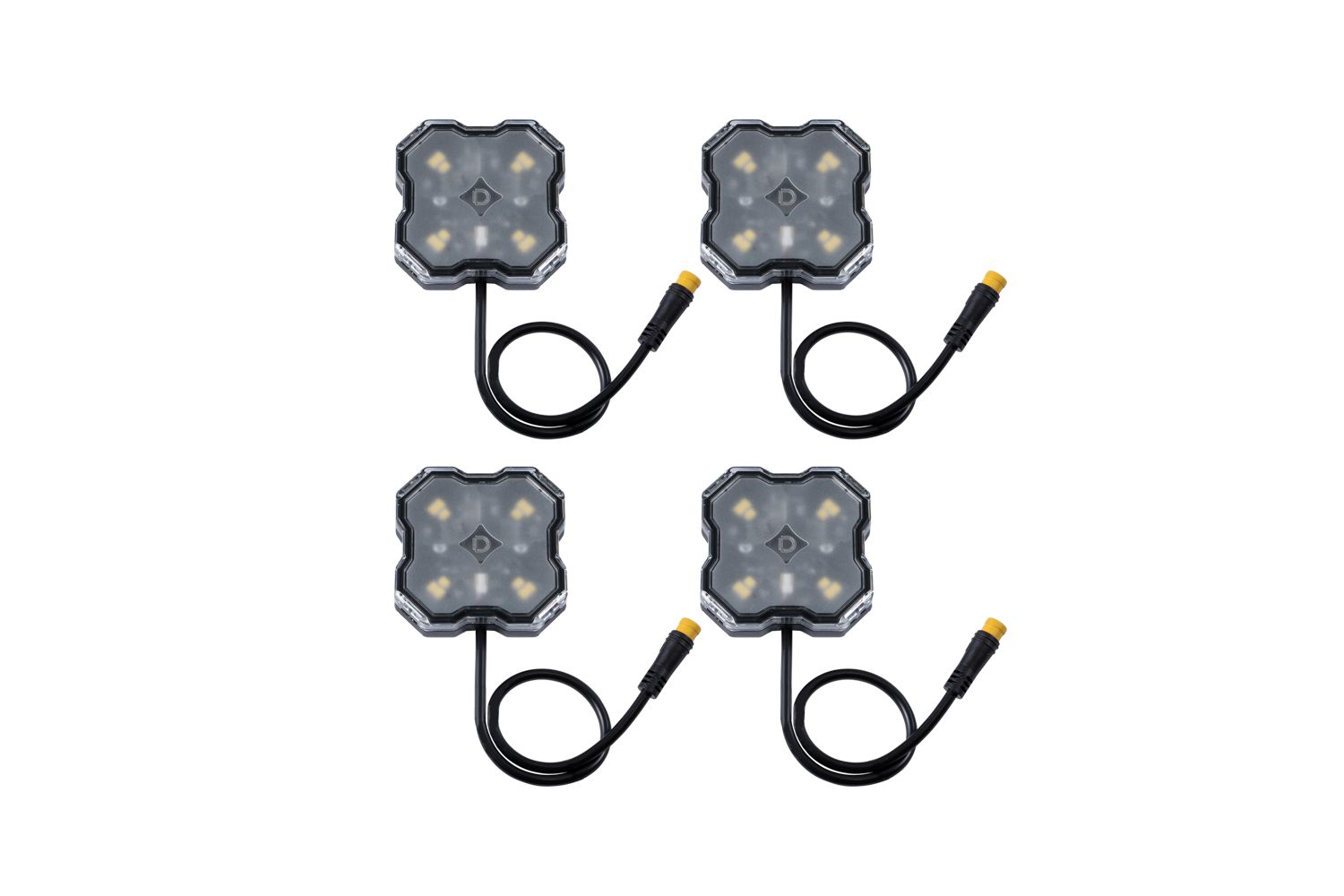

Four (4) Stage Series White Diffused Rock Lights
Four (4) Red Diffused Replacement Lenses
Four (4) Amber Diffused Replacement Lenses
Four (4) Blue Diffused Replacement Lenses
Four (4) Green Diffused Replacement Lenses
One (1) Rock Light Single-Color Wiring Harness
Four (4)
Rock Light Tube Mount Adapters
One (1) 1M Extension
One (1) 3M Extension
Two (2) 5M Extensions
Sixteen (16) Zip Ties
Installation guide
Optical
Lumens 1000
Color temperature 5700K
Beam spread Round 60°
Power 10W
Operating voltage 9-16V
Intensity 360 cd
LED emitter Lumileds Z ES
Driver features Linear Regulated
Construction
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base color Black
Compliance
IP rating IP68 Waterproof
Operating temp -40C to 85C (-40F to 185F)
Country of origin USA
Weather resistant Yes

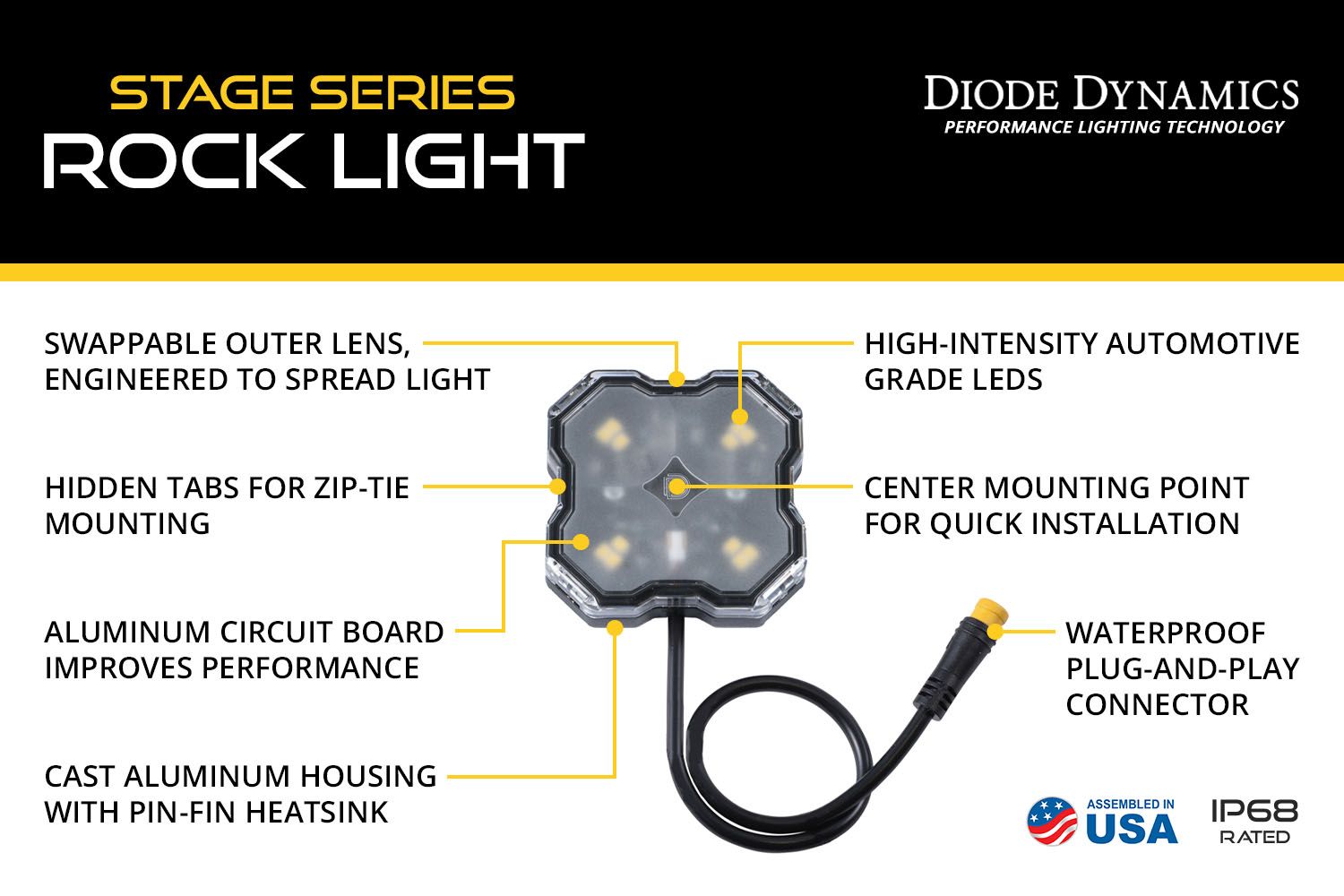

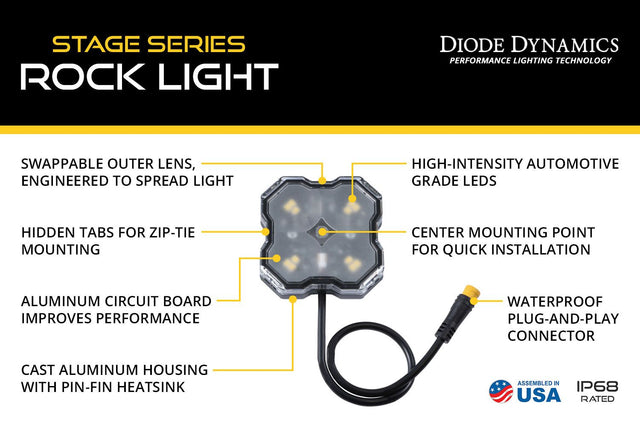

Features & benefits
High-intensity light output
Aluminum heatsink with signature Ico Bezel shape
Thick, durable lenses, engineered to spread light
Engineered and Assembled in USA
Description

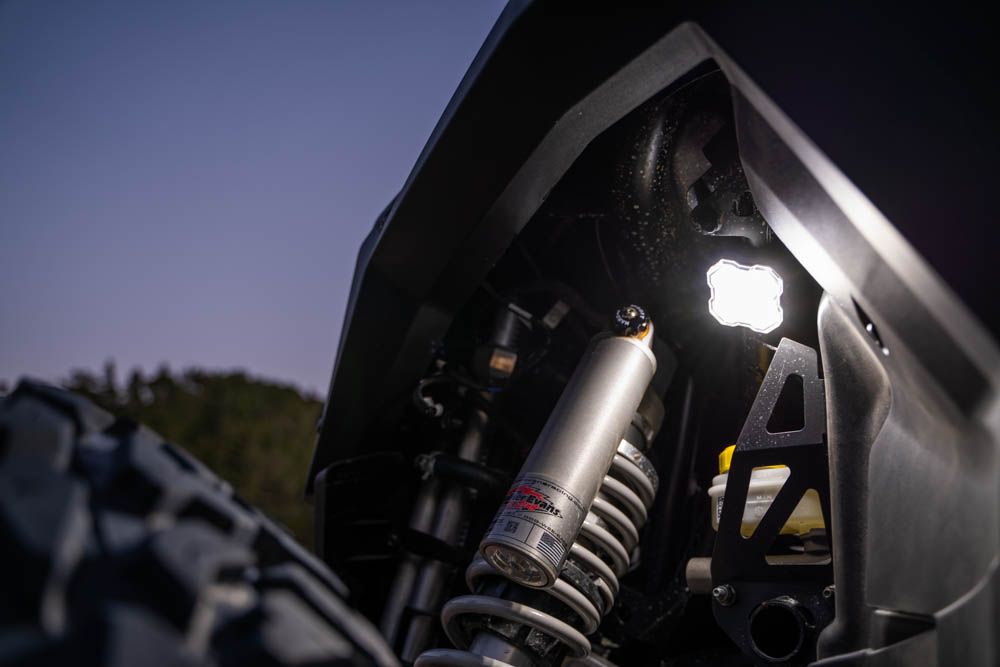

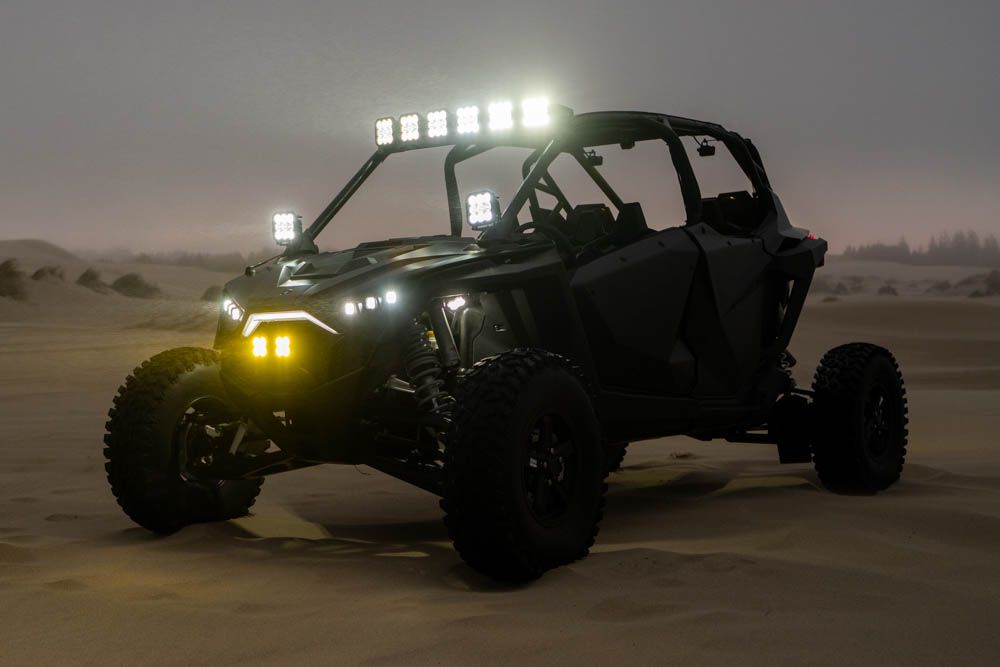

The Stage Series Universal Rock Light SXS Installer Kit is a four-pack lighting solution designed to mount in the wheel wells of your UTV or SXS, throwing ground-level illumination across the terrain around your machine. Whether you're navigating tight trails at night, working a job site after dark, or simply making your rig stand out in the pits, these lights deliver focused area lighting exactly where you need it.

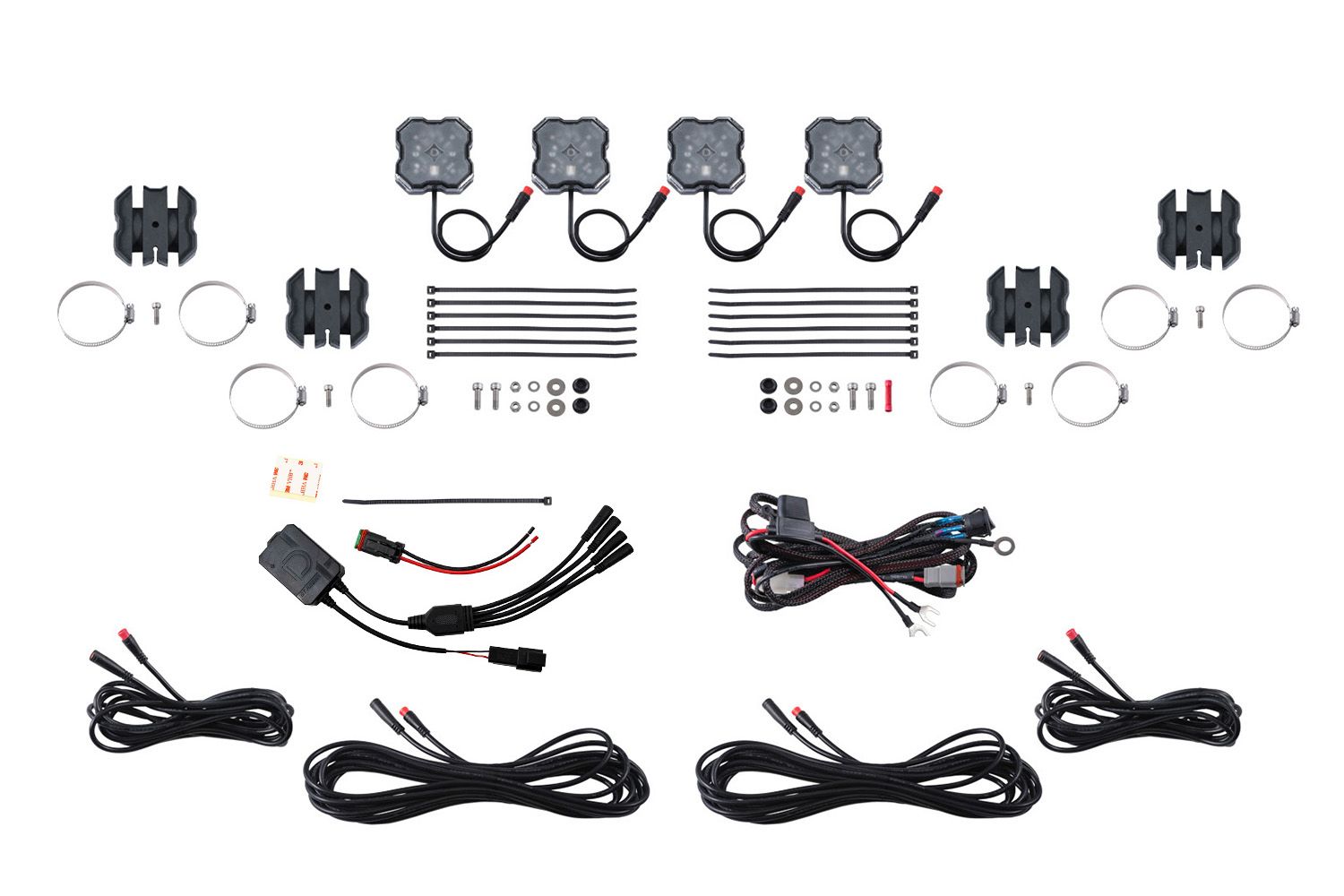

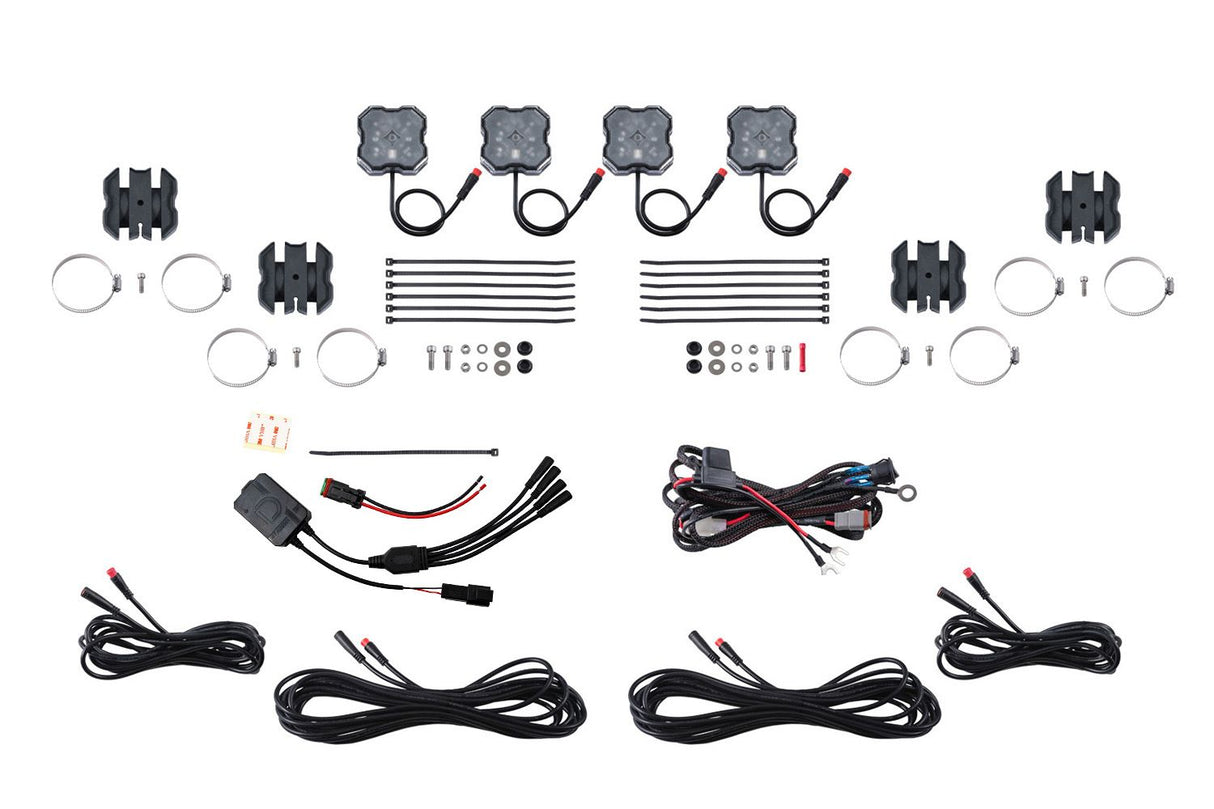

You have two options to match your build: Single Colour for clean, consistent output, or RGBW Multicolour with Controller if you want the flexibility to dial in any colour or run dynamic lighting effects. Both variants share the same rugged construction and signature Stage Series Ico Bezel shape that Diode Dynamics is known for, with a center-mount design that keeps installation straightforward even in tight spaces.

The interchangeable lens system means you can swap colours or diffusion levels down the road without replacing the whole light. If you want ground lighting that performs as hard as your machine runs, this kit delivers it.

Documentation
$ 445.00 CAD● In stock
