SS5 Roof CrossLink Lightbar Kit for 2020-2023 Polaris RZR Pro

Diode Dynamics  |  SKU: DD7630  |  Barcode: 00195995132703
Regular price $ 2,168.00 CAD
Choose Your Power Level
Choose Your Color
Fitment & Install Notes
Fits
Fits: 2020-2022 Polaris RZR PRO XP
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

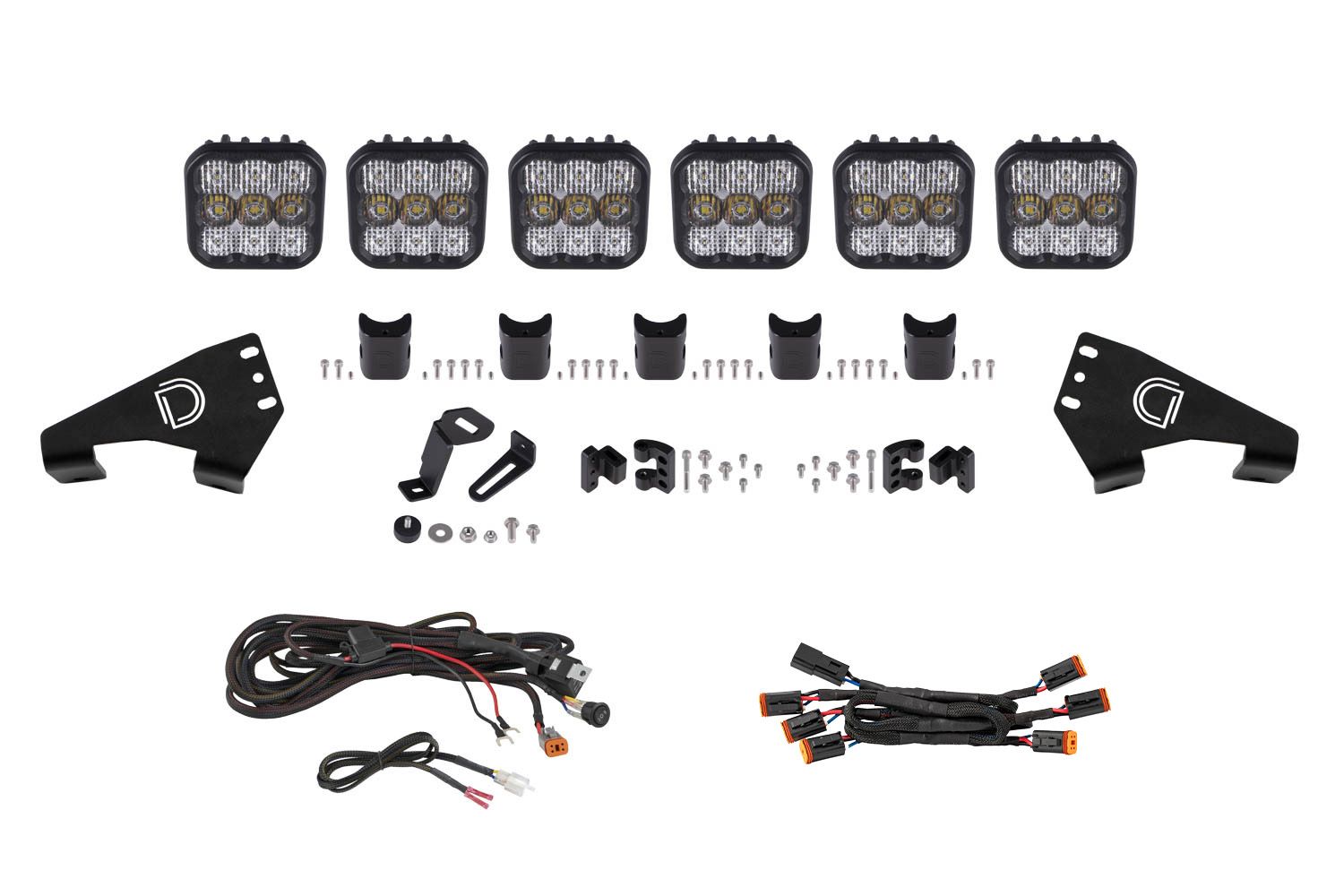

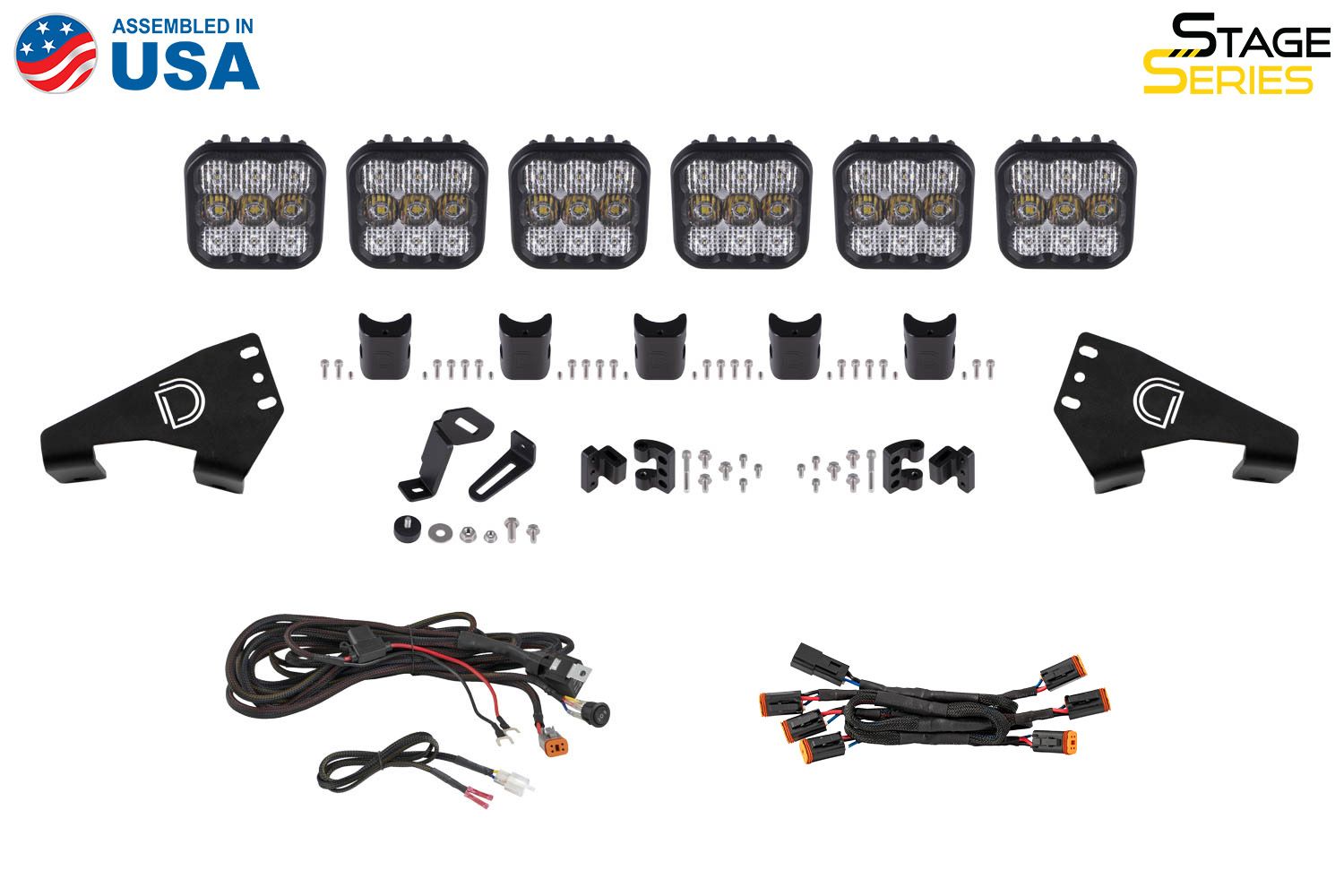

What's in the box 7 ITEMS
Six (6) Stage Series 5in LED Pods
Two (2) Polaris RZR Roof Brackets
Five (5) CrossLink Hardware
One (1) CrossLink Support
One (1) CrossLink Endmount Kit
One (1) DT 6-Pod Connecting Harness
One (1) Heavy Duty Single Output 3Way 4P Harness
Optical
Lumens 3700
Color temperature 6000K

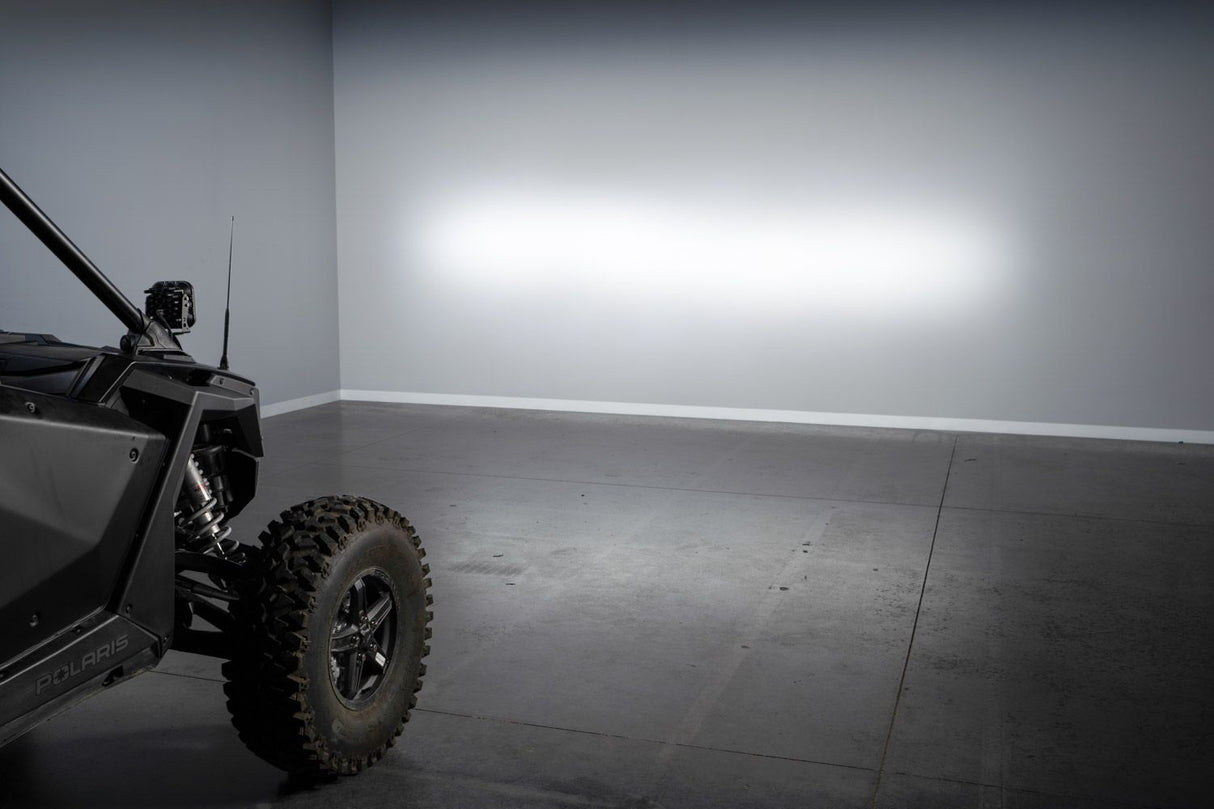

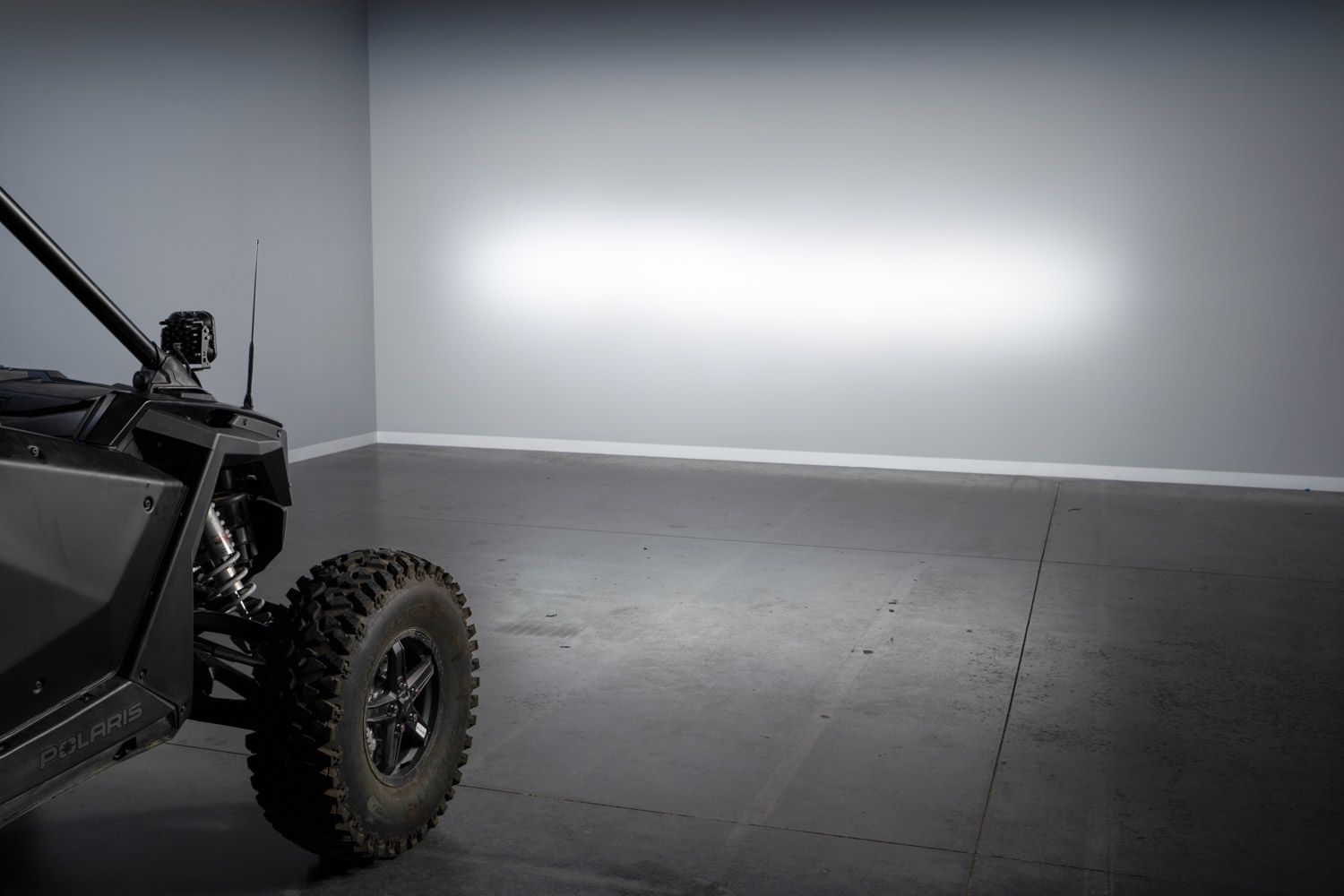

Beam spread Combo (Driving and Flood)
Power 40W
Operating voltage 9-16V
Intensity 81 600 cd
LED emitter Luxeon Z ES, Cree XP-L HI
Driver features Constant Current
Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Base material Steel
Base color Black
Bolt thread Medium
Install
Drilling No drilling required
Mounting hardware Included
Compliance
IP rating IP69K Waterproof High Pressure
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J581 Driving/Auxiliary High Beam Pattern
Country of origin USA
Features & benefits

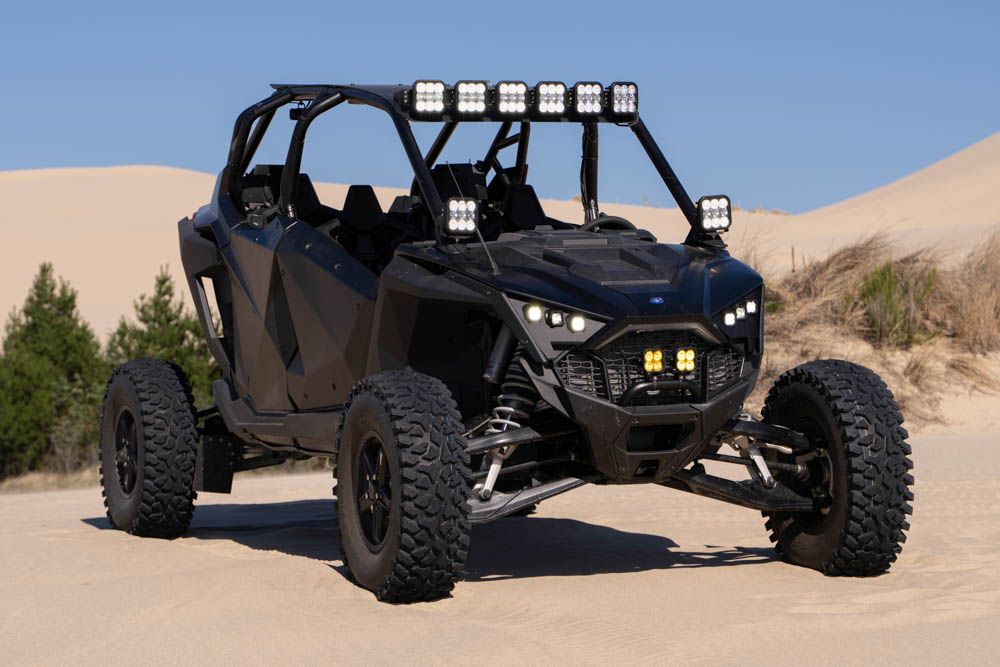

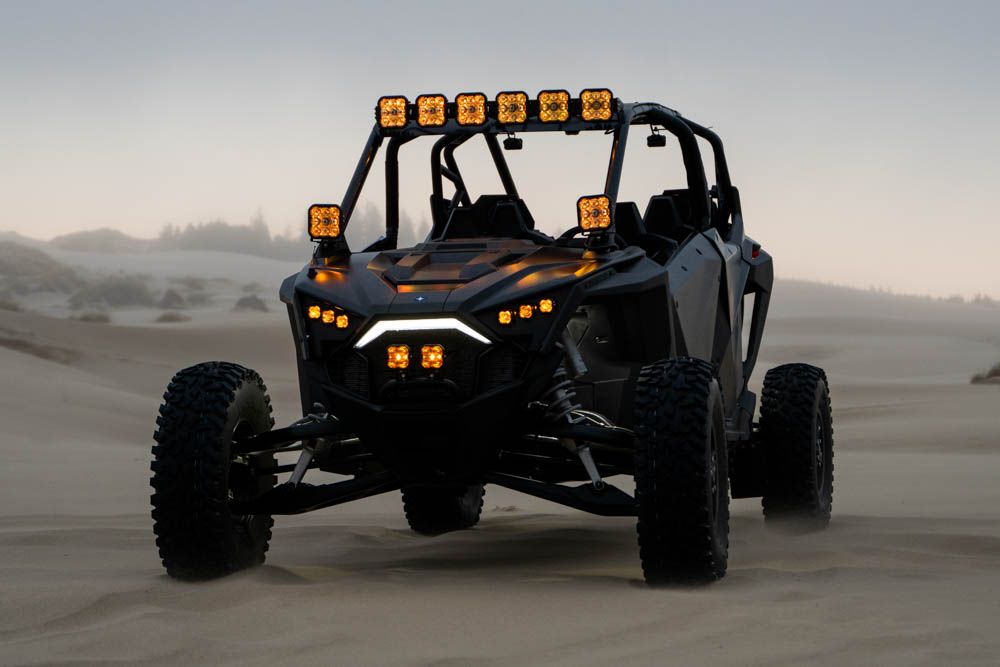

Allows you to mount six pod linked lightbar to the roof
Bolt-on fitment on 2020-2023 Polaris RZR Pro
Ultra-high intensity, with custom-engineered TIR optics

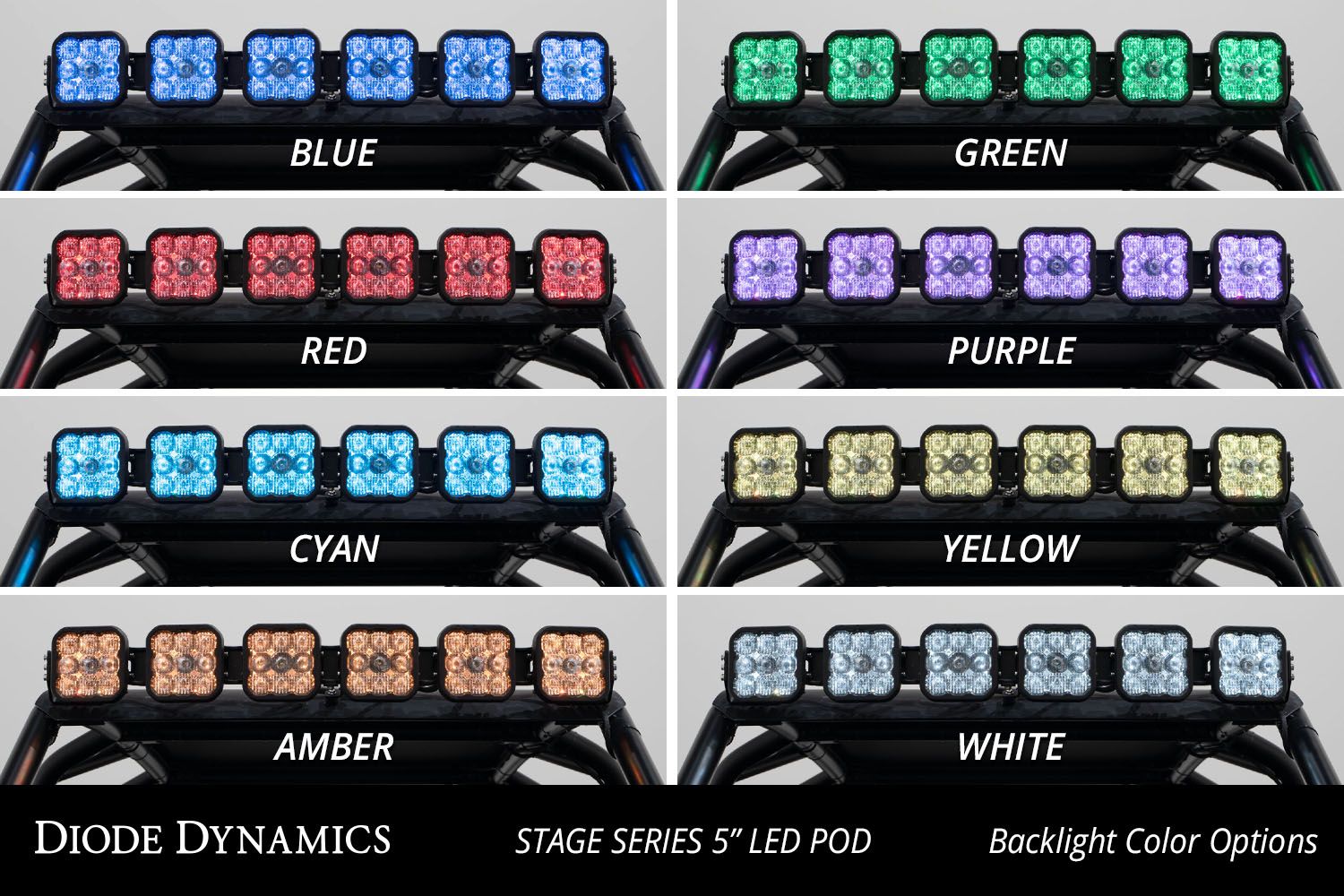

Selectable backlight color, with eight color options
Torture-tested, heavy-duty construction
Assembled in USA
Description

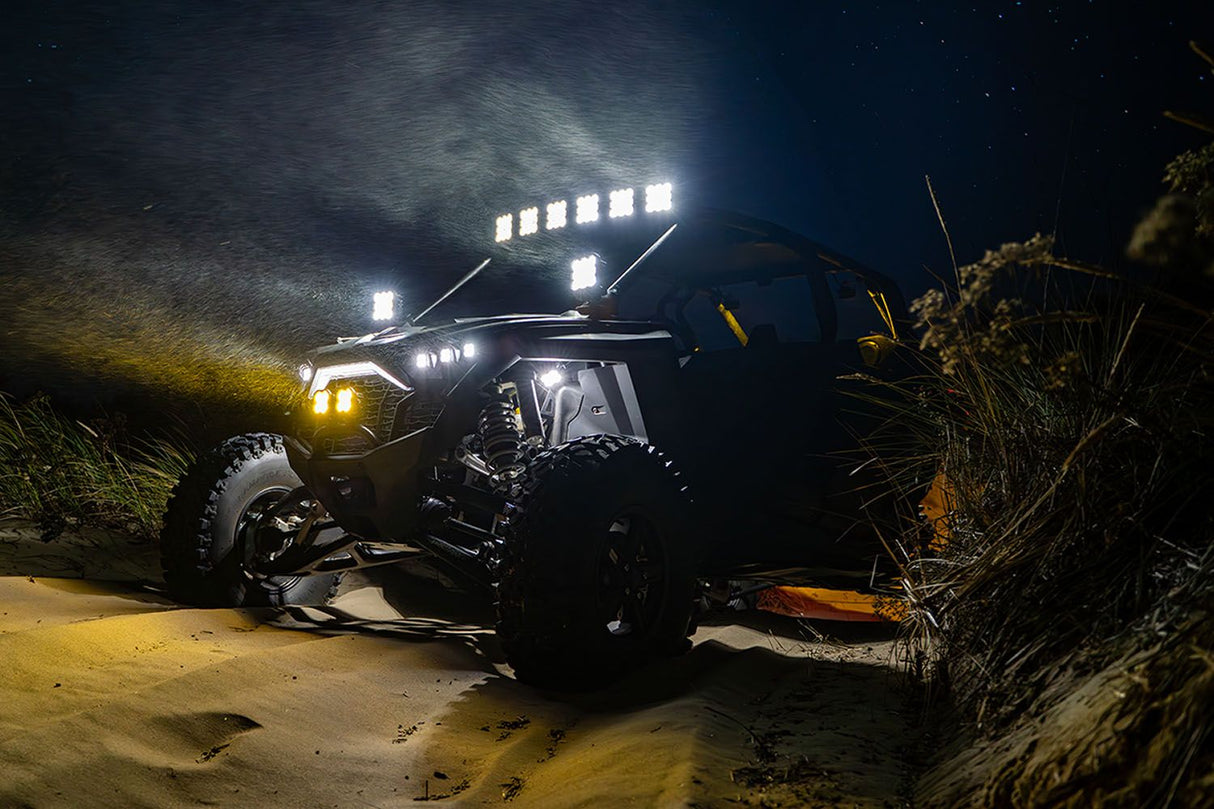

The Diode Dynamics SS5 CrossLink Lightbar Kit for the Polaris RZR Pro is a roof-mounted LED pod array built to flood the trail ahead with serious, usable light. Six SS5 pods link together across the roof panel using a vehicle-specific mounting bracket, giving you a clean, integrated look without drilling or fabricating custom hardware.

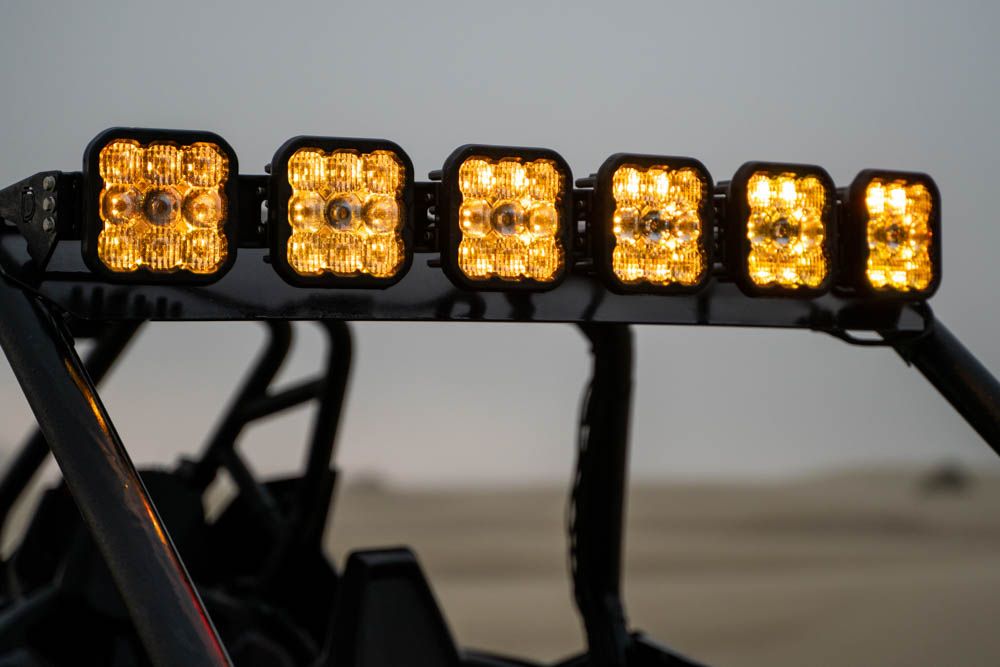

This kit is available in Sport and Pro output levels, so you can match the light intensity to how hard you ride and what your electrical system can support. Beam pattern and color also factor into your decision — choose Cool White for maximum brightness and crisp visibility at speed, or Yellow for better contrast in dust, fog, and rain where white light tends to wash out. Each combination delivers a distinct advantage depending on your terrain and conditions.

The SS5 pods are built around TIR optics and a pin-fin heatsink design that keeps them running cool and efficient during long rides. If you push your RZR Pro hard after dark, this lightbar kit is a straightforward, purpose-built upgrade worth considering.
