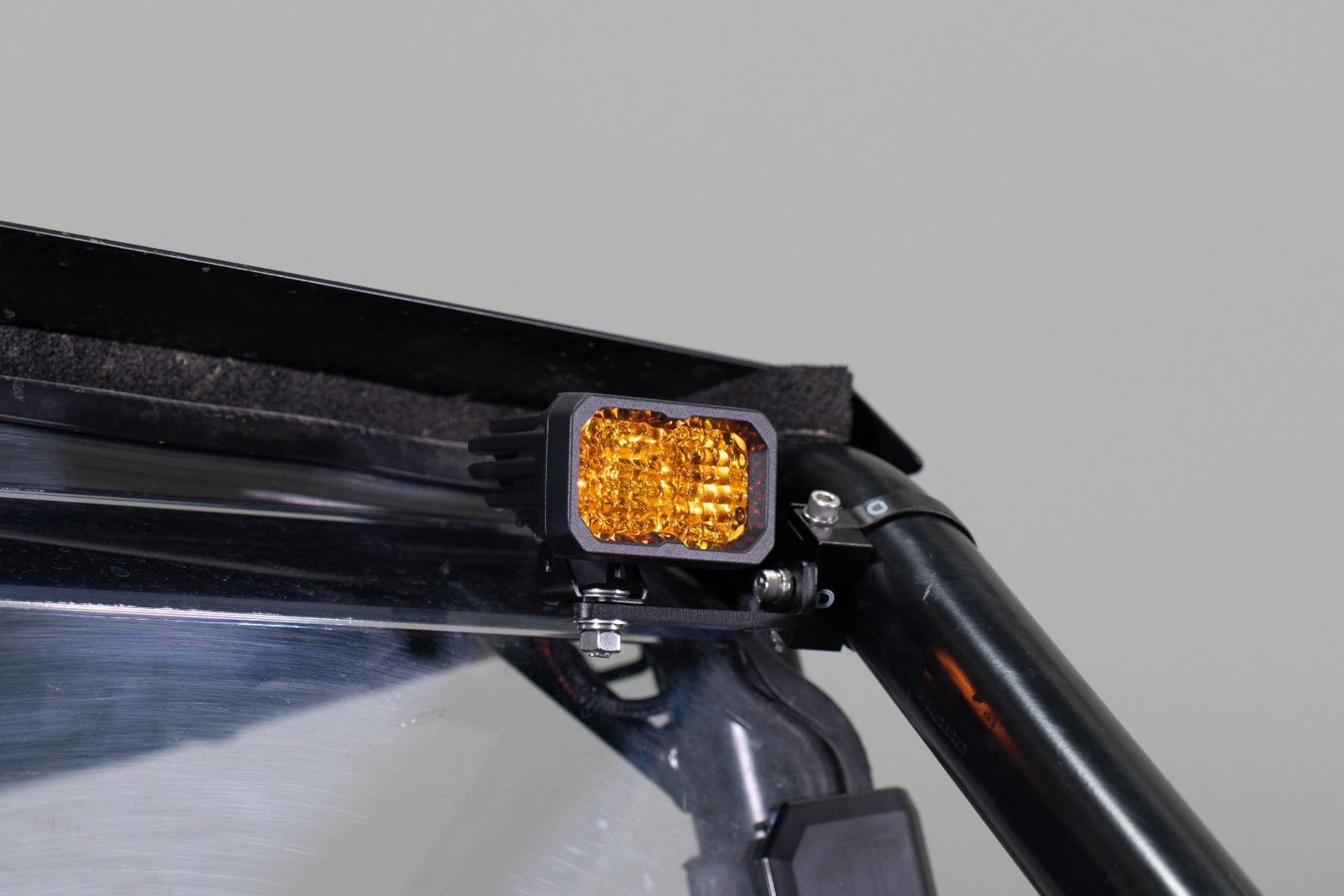

The Stage Series Chase Light Kit and Reverse Light Kit for the 2019-2024 Honda Talon enhance rear visibility and safety for off-road riding. The Chase Light Kit features amber running lights for dusty conditions, while the Reverse Light Kit adds powerful white illumination with a red accent running light. Both kits mount to the roll cage with included hardware. Here's the full walkthrough.
Table of Contents
- Installation Video
- Tools Required
- Installation Instructions
- Questions About the Install?
- Shop Honda Talon Lighting at Ess K Customs
Installation Video
Tools Required
- 5mm Allen wrench
- 10mm wrench
- 13mm wrench
- Trim removal tool
- Flathead screwdriver
- Phillips head screwdriver
- Zip ties
Installation Instructions
Step 1 — Mount Roll Bar Brackets
Slide the roll bar mount over the roll cage in your preferred location — near the top of the cage works well. Add the mounting platform and secure using the included 5mm Allen bolt, washers, and nut. Tighten with a 5mm Allen wrench and 10mm wrench.
Step 2 — Install L Brackets
Attach the included L brackets using the provided bolt, washer, and lock washer. Tighten with a 5mm Allen wrench.
Step 3 — Assemble the Pods
Slide the U-bracket over the SSC2 pod and thread in the 5/32" Allen bolt with the included locking nut. Leave hand-tight for adjustment.
Step 4 — Attach Pods to Mount
Secure each pod to the roll bar mount using the included bolt, washers, lock washer, and nut. Tighten with a 13mm wrench. Repeat for the other side.
Step 5 — Connect to Power
Remove the battery cover by releasing three metal clips. Loosen the battery terminals with a Phillips screwdriver and attach the positive and negative leads from the harness. Secure the fuse and relay, then replace the battery cover.
Step 6 — Route the Switch
Use a trim removal tool or flathead screwdriver to remove three clips from the trim piece. Route the switch and DT connector through and replace the clips. Position the switch along the driver's side roll bar and secure with zip ties.
Step 7 — Finalize Wiring
Route the DT connectors to each pod, keeping wires away from hot or moving parts. Test the system for functionality. Secure all loose wiring with zip ties and reassemble any trim removed during installation. The install is complete.
Questions About the Install?
If you run into any issues during the installation, contact Ess K Customs — as an authorized Diode Dynamics dealer, we're here to help.
Shop Honda Talon Lighting at Ess K Customs
Looking for lighting upgrades for your Honda Talon? As an authorized Diode Dynamics dealer, Ess K Customs carries genuine products with full manufacturer warranty.
Browse Honda Talon Lighting at Ess K Customs →
This install guide applies to Diode Dynamics SKUs: DD6819, DD7667, DD7668, DD7669, DD7670
