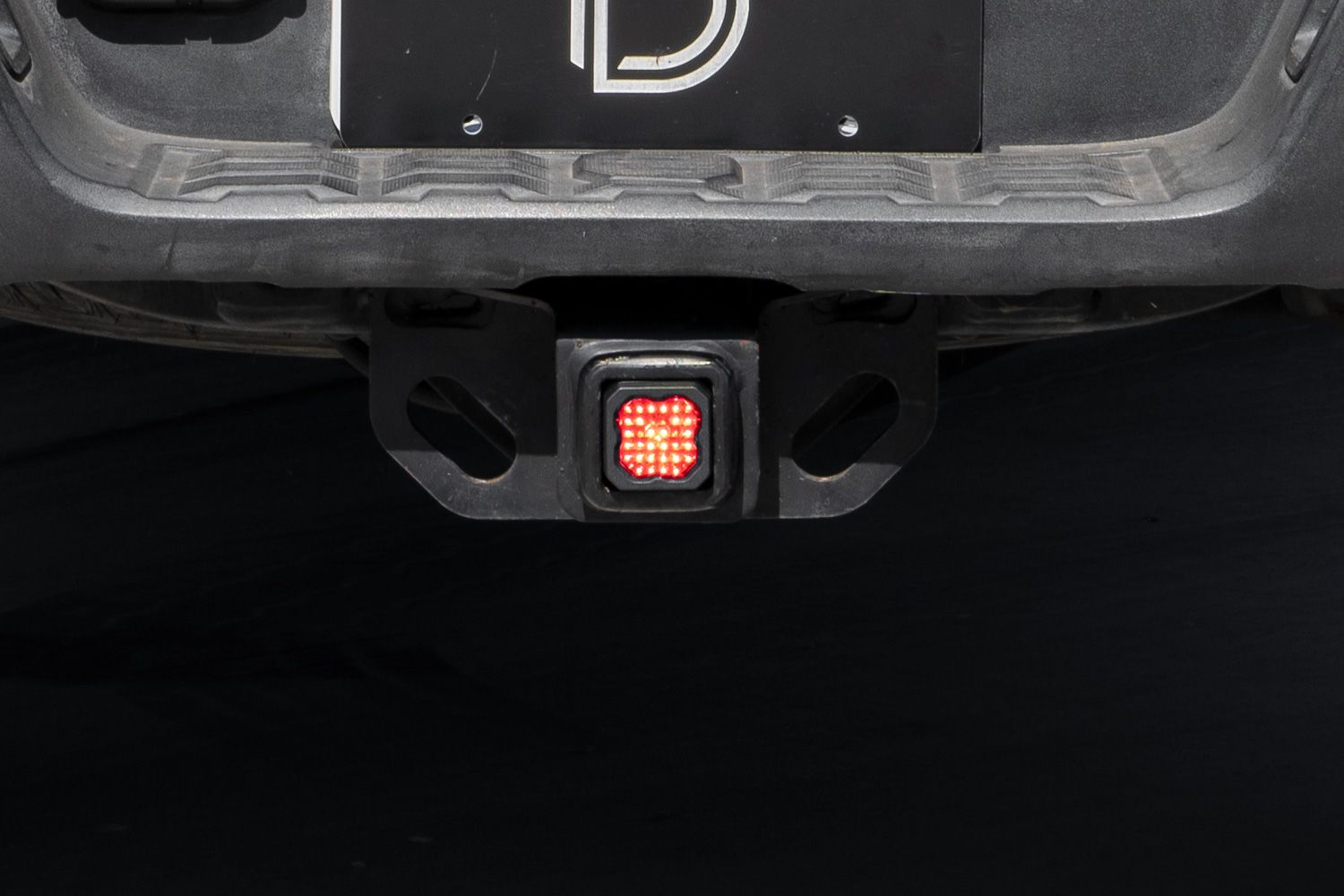

The C1R HitchMount LED Pod Reverse Kit for the 2005-2015 Toyota Tacoma installs a C1R LED pod in your 2-inch trailer hitch receiver, adding a high-power reverse light, running light, and fourth brake light. Here's the full installation walkthrough.
Table of Contents
- Installation Video
- Installation Instructions
- Optional: Using a Hitch Pin
- Questions About the Install?
- Shop Tacoma Lighting at Ess K Customs
Installation Video
Note: This guide is for the C1R kit only. All HitchMount kits now include a custom-molded adapter sleeve for 2.5-inch receivers — set it aside if you have a standard 2-inch hitch.
Installation Instructions
Step 1 — Connect HitchMount Harness
From underneath the Tacoma, locate the sealed trailer harness connector directly behind the rear bumper. Disconnect the factory trailer harness connector by rotating the white latch mechanism and pulling the connectors apart. Plug the provided HitchMount harness inline between the factory harness and trailer connector. Rotate the white latch mechanism back to the locked position.
Step 2 — Install HitchMount LED Pod
Route the DT connector through the back of the trailer hitch receiver. Remove the dust cap from the DT connector and plug it into the LED pod. Push the HitchMount LED pod into the hitch receiver until it snaps into place using the patent-pending HitchMount clip. Test all functions and secure the wiring harness with the included zip ties.
Removing the HitchMount: Depress the clips on either side and apply forward pressure to slide the pod out. If disconnecting for an extended period, unplug the HitchMount harness from the factory harness as well. Otherwise, reinstall the dust cap and tuck the DT connector away.
Optional: Using a Hitch Pin
The HitchMount stays securely in place during use, but you can add a locking hitch pin (not included) for extra security. Push each retention tab outward and cut out the circular section with a cutting tool. Repeat on both sides. Plug the DT connector into the pod, slide the HitchMount into the receiver, and insert the hitch pin while aligning with your other hand. The tight fit prevents rattling. This modification does not void the manufacturer warranty.
